Description

Price

1

CASE, WATER PUMP

17410-31J00

$122.28

2

IMPELLER,WATER PUMP

17491-16G00

$32.78

3

.SEAL,MECHANICAL This part replaces 17470-02F10.

17470-02F11

$27.96

4

OIL SEAL (10X20X5)

09283-10005

$4.32

5

O RING

17435-02F00

$10.16

6

BEARING (10X22X5)

09262-10016

$21.34

7

.E-RING

08332-1108A

$1.82

8

BOLT (6X30)

09103-06213

$2.53

9

BOLT (6X65)

09103-06239

$2.75

10

PIN

04211-09149

$1.70

11

HOSE(4.2X7X600) | L:600->140 This part replaces 09352-42703-600.

09352-42704-600

$7.08

12

CLAMP (L:45)

09404-06429

$1.88

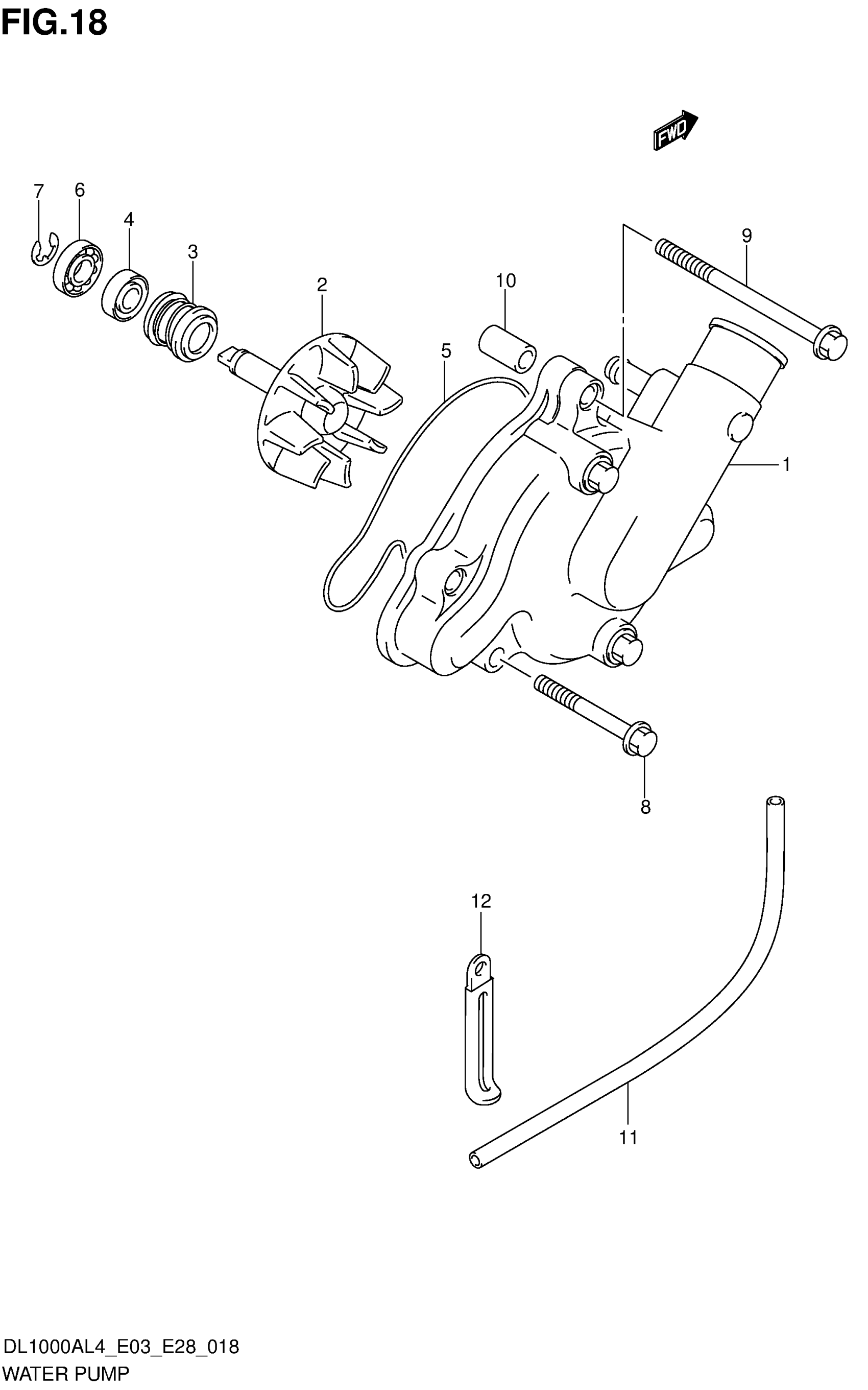

Suzuki DL1000AL4 (2014) WATER PUMP Diagram
