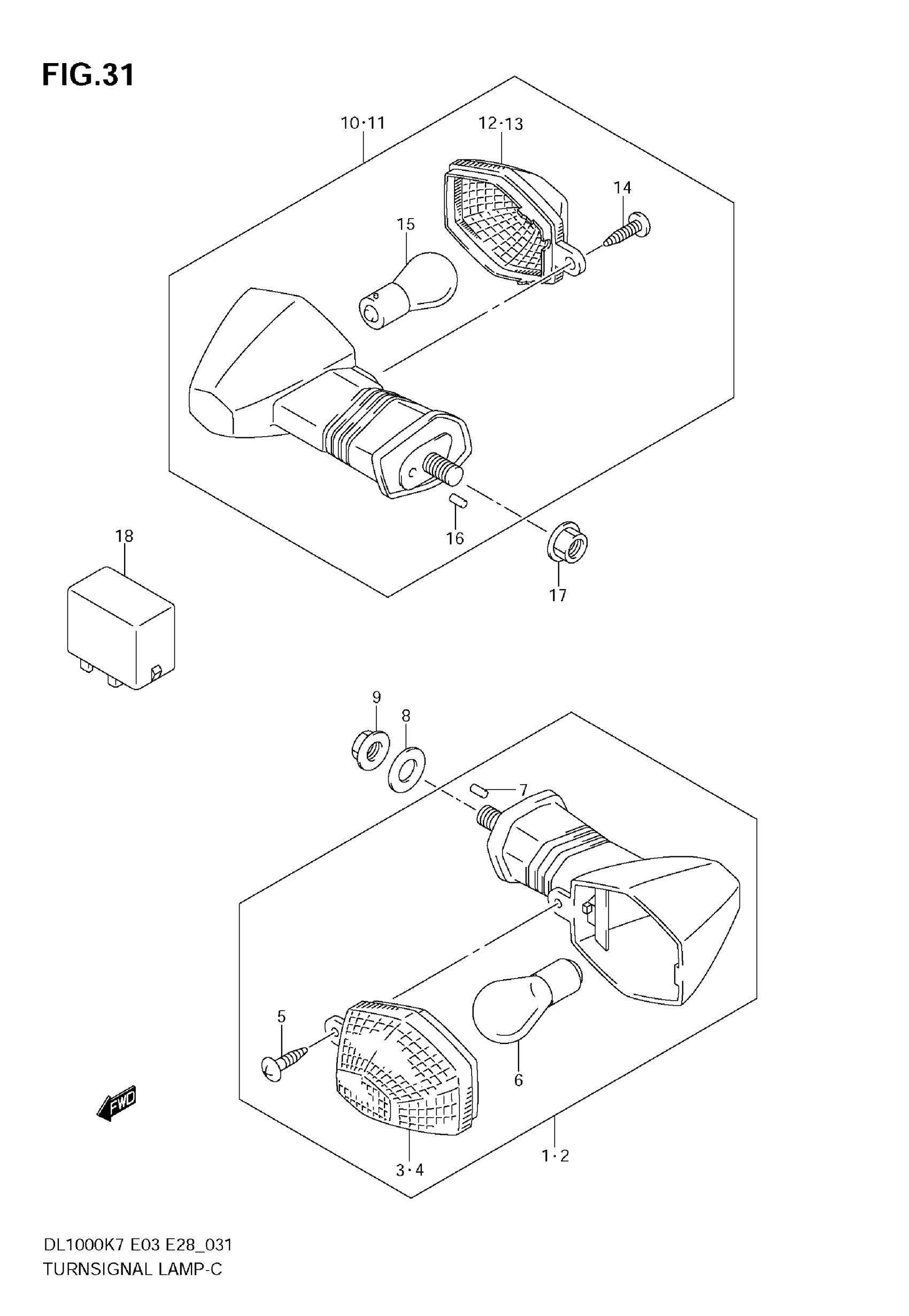

Suzuki DL1000 (2009) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURNSIGNAL RH

35601-27G10

$86.86

2

LAMP ASSY, FRONT TURNSIGNAL LH | Includes Item(s) 3 - 7

35602-27G10

$86.86

3

LENS, RH | FOR CLEAR

35612-29FA0

$14.37

4

LENS, LH | FOR CLEAR

35632-29FA0

$14.37

5

SCREW

03241-0416A

Unavailable

6

BULB (12V21W,AMBER)

09471-12186

$12.66

7

PIN

09202-04017

$3.78

8

WASHER

09160-12092

$2.19

9

NUT

08316-1012B

$2.76

10

LAMP ASSY, REAR TURNSIGNAL RH

35603-06G20

$123.68

11

LAMP ASSY, REAR TURNSIGNAL LH | Includes Item(s) 12 - 16

35604-06G20

$120.63

12

LENS, RH | FOR CLEAR

35632-29FA0

$14.37

13

LENS, LH | FOR CLEAR

35612-29FA0

$14.37

14

SCREW

03241-0416A

Unavailable

15

BULB (12V21W,AMBER)

09471-12186

$12.66

16

PIN

09202-04017

$3.78

17

NUT

08316-1012B

$2.76

18

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$87.08
