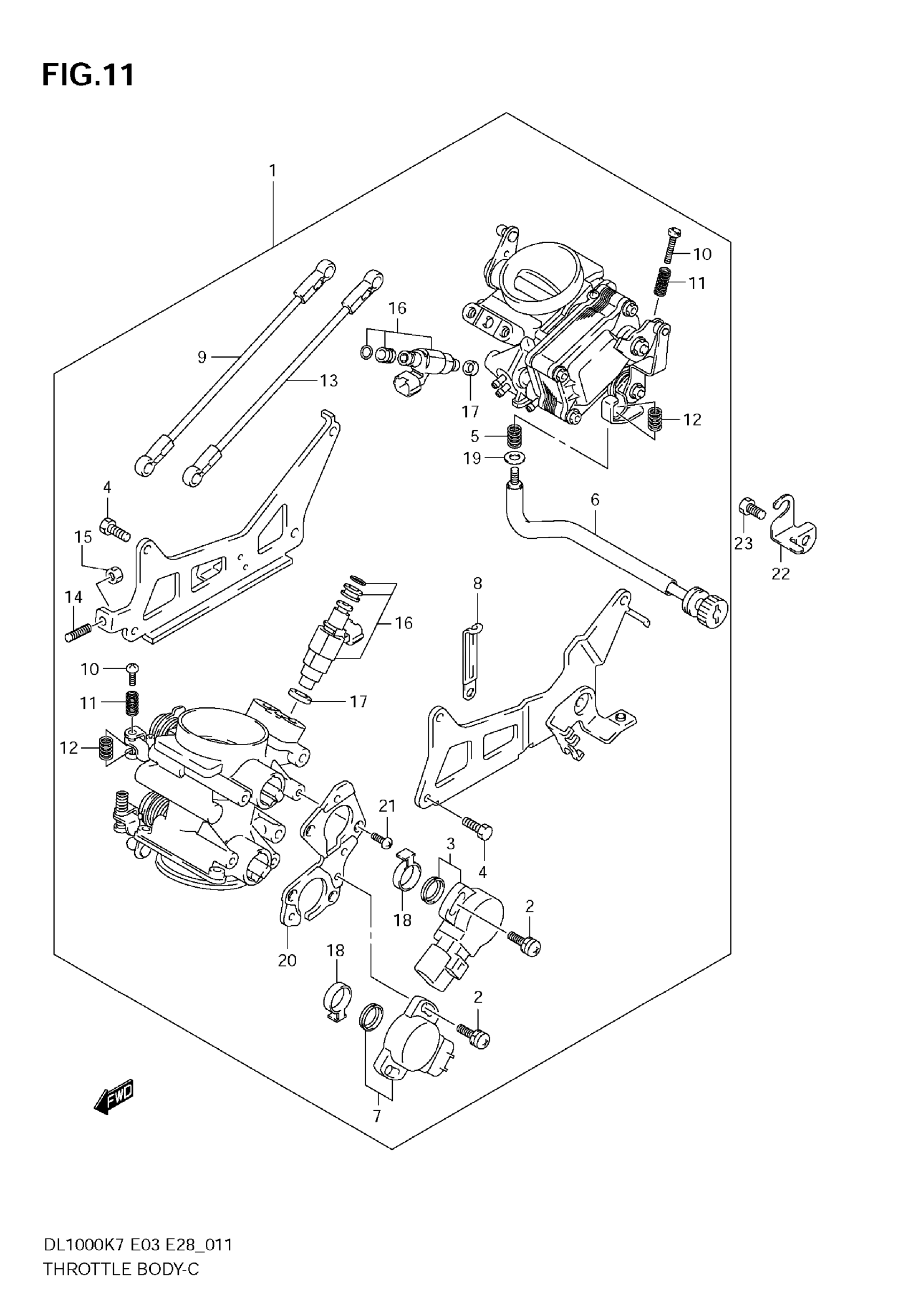

Suzuki DL1000 (2009) THROTTLE BODY Diagram

#

Description
Price

1

INJECTION ASSY | E3,E28

13405-06G51

Unavailable

1

INJECTION ASSY | E33; Includes Item(s) 2 - 21

13405-06G41

Unavailable

2

SCREW

13605-02F00

$3.71

3

SENSOR ASSY This part replaces 13580-06G00.

13580-06G01

$105.58

4

BOLT

13612-02F00

Unavailable

5

SPRING

13271-93011

$5.32

6

ADJUST SCREW ASSY

13270-06G00

$90.23

7

SENSOR ASSY,THR This part replaces 13580-02F00.

13580-02F01

$86.81

8

PLATE

09404-06429

$1.83

9

ROD ASSY

13552-06G10

Unavailable

10

SCREW

13548-42F00

Unavailable

11

SPRING

13271-44B00

$3.89

12

SPRING

13268-89J00

$5.17

13

ROD ASSY

13552-06G00

Unavailable

14

ADJUST SCREW

13605-06G00

Unavailable

15

NUT

13607-47070

$3.13

16

INJECTOR ASSY

15710-06G00

$333.68

17

SEAL

13672-33E00

$10.34

18

RING

13311-06G00

Unavailable

19

PACKING

13386-09410

Unavailable

20

PLATE

13627-06G00

Unavailable

21

SCREW

02112-04107

$1.55

22

PLATE, IDLE ADJUST

13279-06G00

Unavailable

23

BOLT, IDLE ADJUST PLATE

01500-0612B

$2.47
