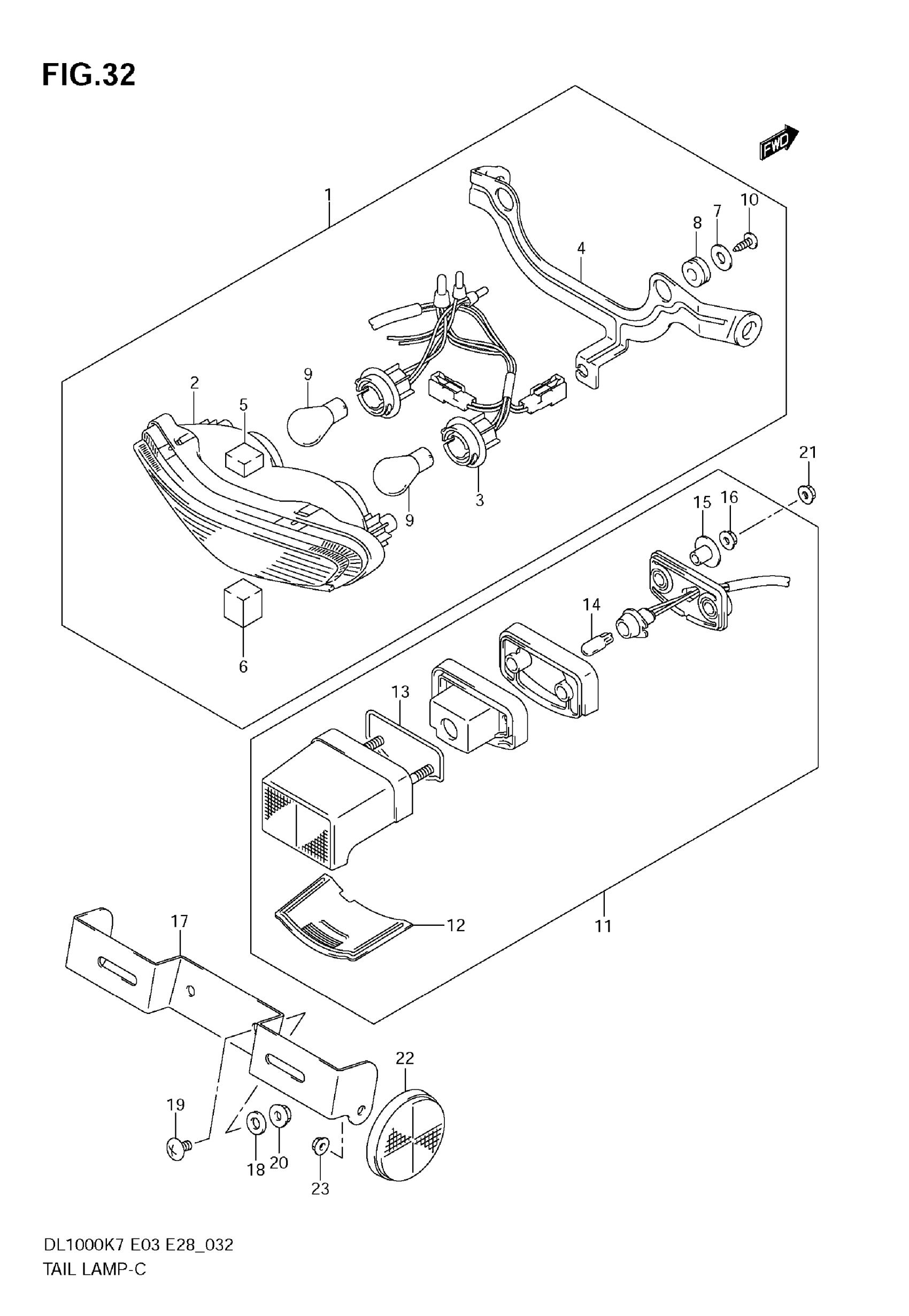

Suzuki DL1000 (2009) TAIL LAMP Diagram

#

Description
Price

1

LAMP ASSY, REAR COMBINATION | Includes Item(s) 2 - 10

35710-06G60

Unavailable

2

UNIT | COLOR : RED

35720-06G30

Unavailable

3

SOCKET & CORD

35718-06G50

Unavailable

4

BRACKET

35726-06G00

Unavailable

5

CUSHION, UPPER (20X20X12)

35734-06G00

Unavailable

6

CUSHION, LOWER (20X20X25)

35739-06G00

Unavailable

7

WASHER (5.5X20X1.2)

09160-05501

$1.84

8

CUSHION

09320-10049

$2.35

9

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.73

10

SCREW

03241-0516A

$1.49

11

LAMP ASSY, LICENSE | Includes Item(s) 12 - 16

35910-06G31

Unavailable

12

LENS

35912-08F00

$10.65

13

GASKET

35913-08F00

Unavailable

14

.BULB (12V5W)

09471-12216

$5.36

15

SPACER

35766-27G30

Unavailable

16

NUT

08316-2006A

$2.63

17

BRACKET, LICENSE PLATE

35927-06G00

$17.70

18

WASHER (6.5X15X1.60)

09160-06128

$1.99

19

SCREW

02142-0612B

$2.05

20

NUT, LICENSE PLATE

08316-1006B

$2.50

21

NUT, LICENSE LAMP

08316-1006B

$2.50

22

REFLECTOR ASSY, RR SIDE

35970-14A20

$15.10

23

NUT

08316-1005B

$2.50
