Description

Price

1

STEM, STEERING | Includes Item(s) 2 - 3

51410-06G00

Unavailable

2

SEAL, STEERING LOWER

51644-12C00

$9.44

3

BEARING (30X55X17)

09267-30010

$48.11

4

BEARING, UPPER (30X55X17)

09267-30010

$48.11

5

NUT

51631-33E00

$23.64

6

WASHER

51641-33E00

$6.20

7

COVER, STEERING UPPER

51643-24F10

$15.20

8

SEAL, STEERING UPPER

51644-12C00

$9.44

9

BOLT

51166-35F00

$7.50

10

HEAD, STEERING STEM

51311-06G00

Unavailable

11

BOLT

51166-35F00

$7.50

12

NUT

51353-27G00

$33.80

13

WASHER

51354-06G00

$11.78

14

HOLDER, HANDLE LOWER

56221-27E00

Unavailable

15

BOLT

56321-27E00

$11.50

16

CUSHION,RUBBER This part replaces 56241-27E00.

56241-27E01

$33.90

17

RUBBER,LWR This part replaces 56260-42A00.

56260-42A01

$35.23

18

SPACER

56243-42A00

$8.03

19

NUT

08319-31107

$2.73

20

HOLDER, HANDLE UPPER

56211-32F00

Unavailable

21

BOLT

51321-06G00

$9.17

22

WASHER

09164-08015

$3.21

23

CAP

09250-06011

$2.50

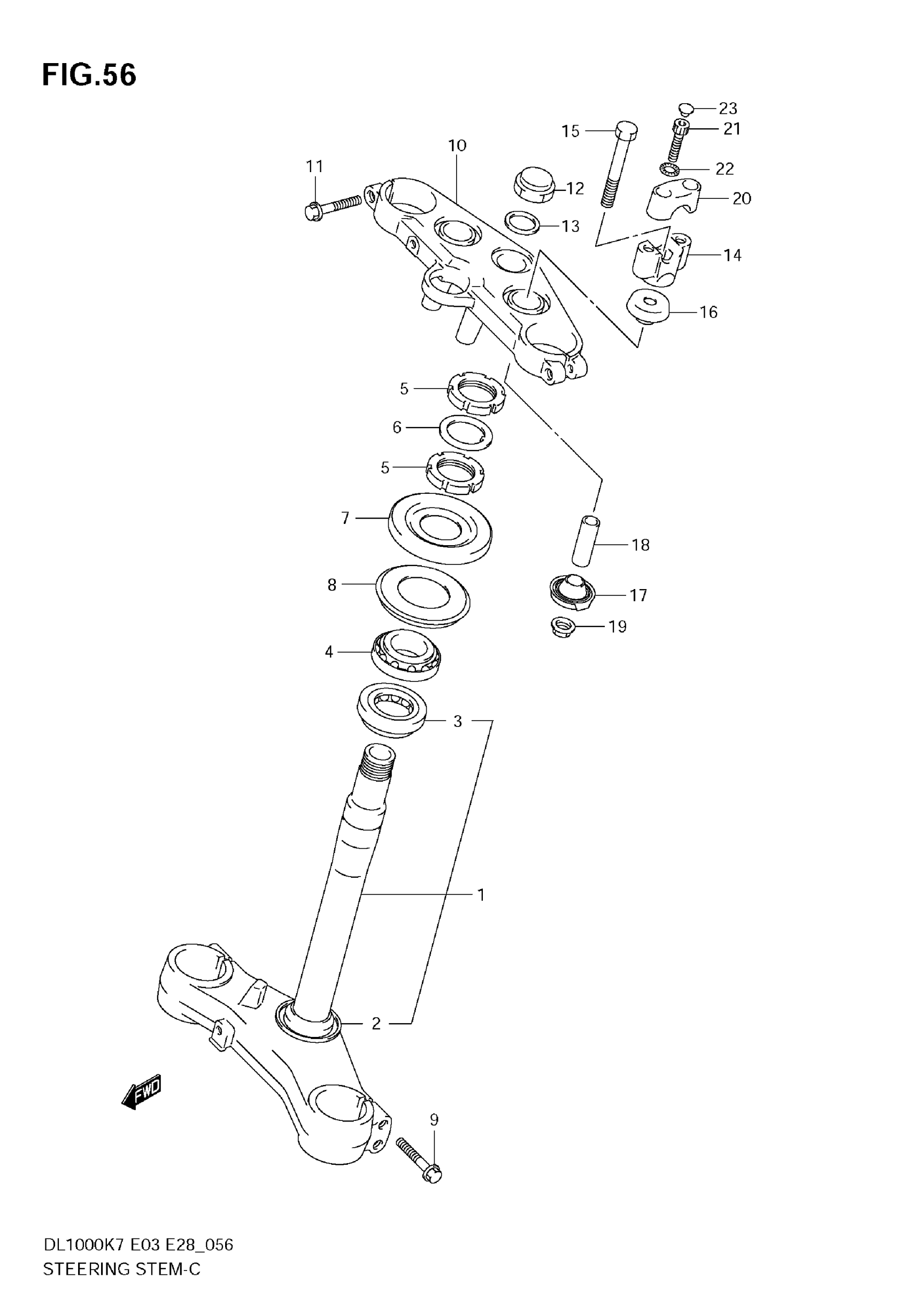

Suzuki DL1000 (2009) STEERING STEM Diagram

STEM, STEERING | Includes Item(s) 2 - 3

SEAL, STEERING LOWER

BEARING (30X55X17)

BEARING, UPPER (30X55X17)

NUT

WASHER

COVER, STEERING UPPER

SEAL, STEERING UPPER

BOLT

HEAD, STEERING STEM

BOLT

NUT

WASHER

HOLDER, HANDLE LOWER

BOLT

CUSHION,RUBBER This part replaces 56241-27E00.

RUBBER,LWR This part replaces 56260-42A00.

SPACER

NUT

HOLDER, HANDLE UPPER

BOLT

WASHER

CAP
