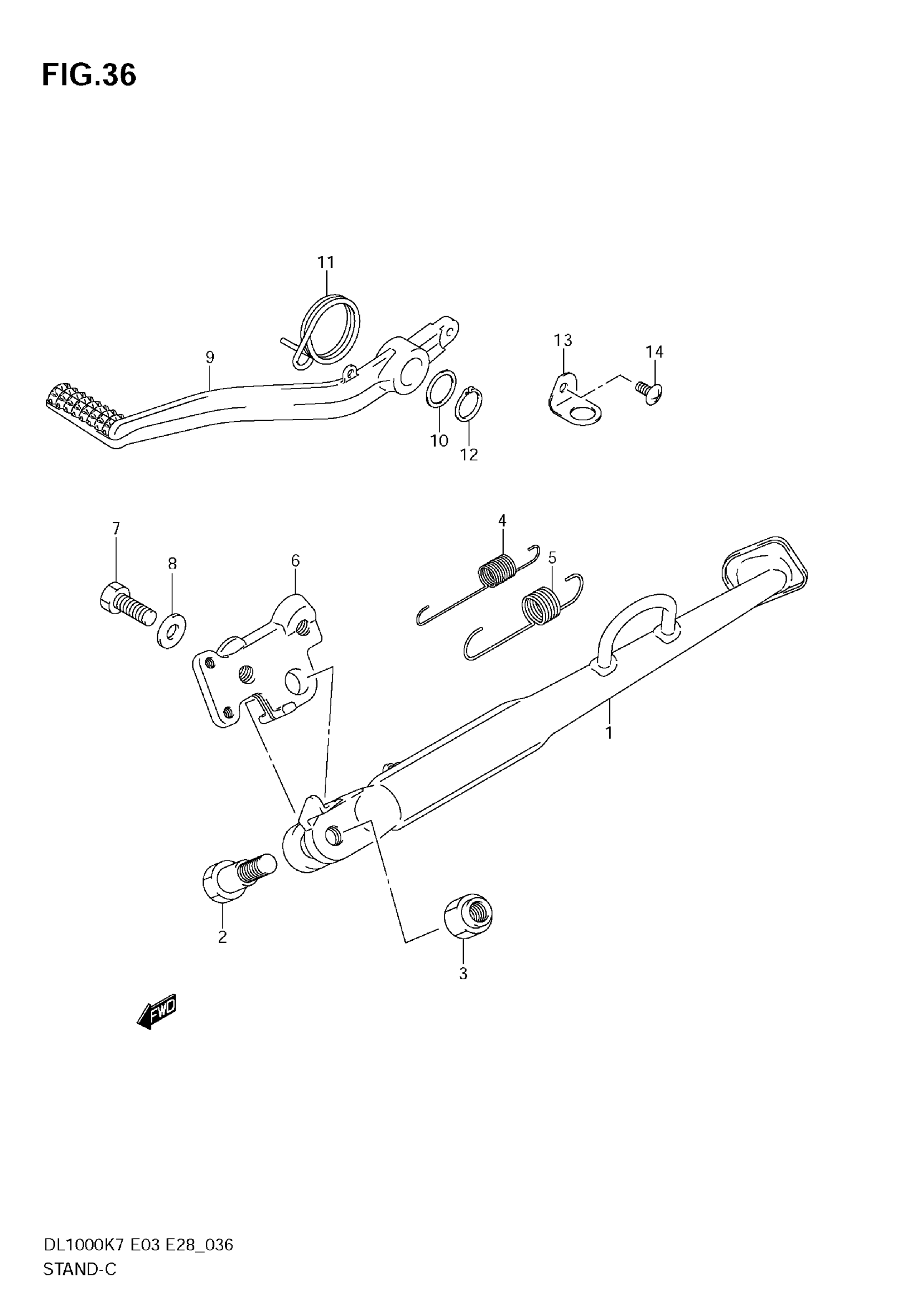

Suzuki DL1000 (2009) STAND Diagram

#

Description
Price

1

STAND, PROP

42310-06G00

$160.78

2

BOLT

09111-10058

$6.66

3

NUT, PROP STAND

42321-03FK0

$5.17

4

SPRING, INNER

09443-14058

$5.64

5

SPRING, OUTER

09443-19011

$5.75

6

BRACKET, PROP STAND This part replaces 42330-06G00.

42330-06G01

$122.58

7

BOLT

09100-12084

$5.98

8

WASHER

09160-12061

$2.15

9

PEDAL, BRAKE

43111-06G00

$146.38

10

WASHER

09160-18022

$2.92

11

SPRING

09448-41005

$4.32

12

CLIP

08331-3118A

$2.13

13

BRACKET, STOP SWITCH

43251-06G00

Unavailable

14

SCREW

02142-0612A

$1.49
