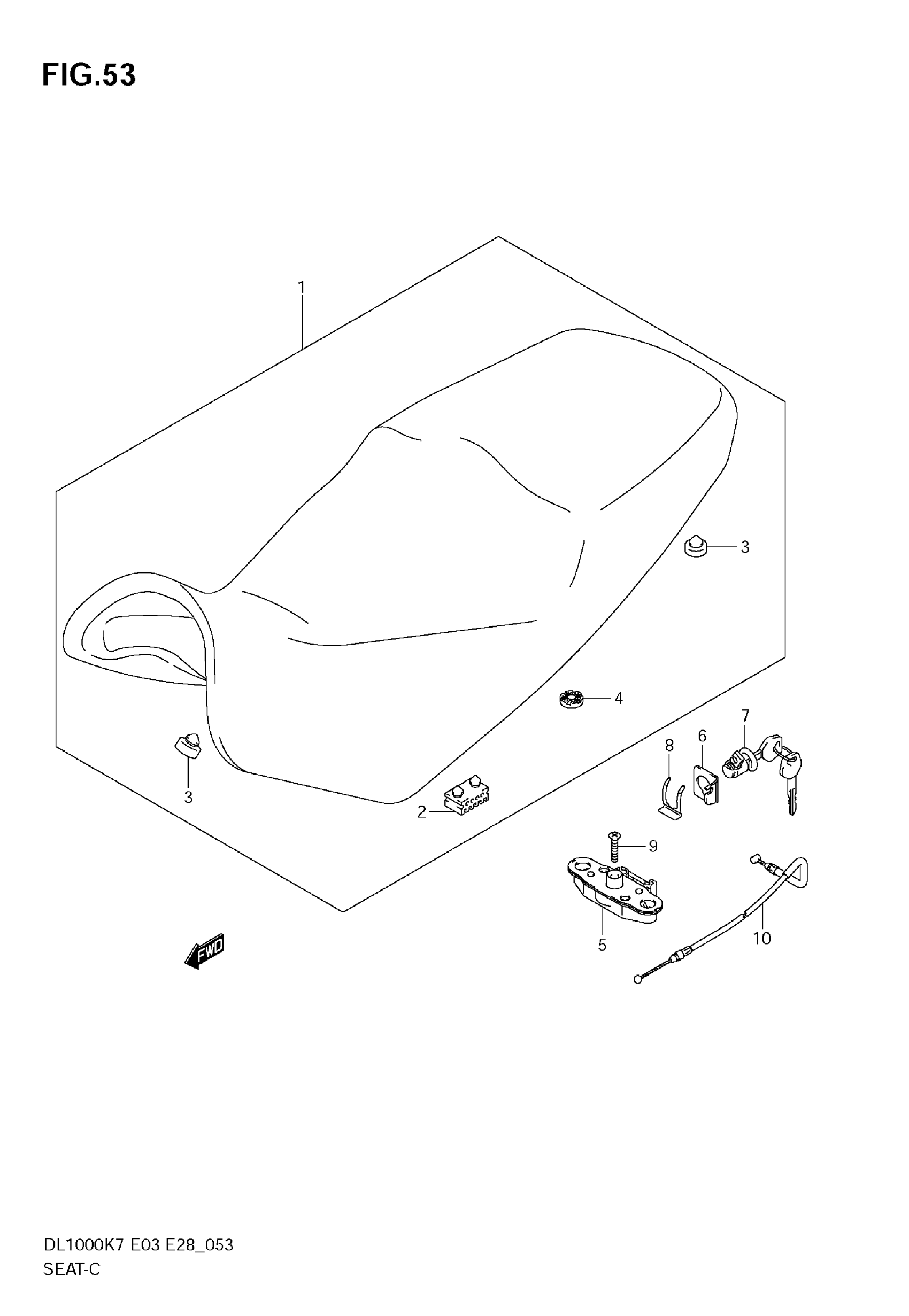

Suzuki DL1000 (2009) SEAT Diagram

#

Description

Price

1

SEAT ASSY | Includes Item(s) 2 - 4 This part replaces 45100-06G10-H1N.

45100-06G11-H1N

$433.73

2

CUSHION

09321-08006

$2.90

3

CUSHION

09321-10012

$2.92

4

CUSHION

45213-13601

$2.79

5

BRACKET, SEAT SUPPORT This part replaces 45220-20A01.

45220-47H00

$138.38

6

GUIDE, SEAT LOCK CABLE

45288-14F00

$5.36

7

LOCK SET, SEAT

95700-14810

$107.30

8

PLATE, SEAT LOCK ASSY

45289-11F00

$6.20

9

SCREW

02122-0630B

$2.06

10

CABLE, SEAT LOCK

45280-06G00

$29.43
