Description

Price

1

SWINGARM ASSY,R | Includes Item(s) 2 - 4 This part replaces 61000-06G10-YAP.

61000-06G20-YAP

$2,058.38

2

SPACER, REAR SWINGING ARM

09180-20118

$24.35

3

BEARING (25X33X35) This part replaces 09263-25059.

09263-25073

$30.93

4

.BEARING (17X24X25) This part replaces 09263-17037.

09263-17053

$21.66

5

SPACER,PIVOT BEARING

61251-31E00

$59.25

6

SHAFT, RR SWINGINGARM PIVOT

61211-06G00

Unavailable

7

NUT, RR SWGARM PIVOT BOLT This part replaces 61214-19F00.

61214-19F10

$21.40

8

NUT

08319-3118A

$24.48

9

BUFFER,CHAIN TO This part replaces 61273-06G00.

61273-06G01

$38.75

10

BOLT (6X20)

09116-06152

$2.36

11

SPACER (6.5X9X5)

09180-06306

$2.03

12

WASHER,CHAIN AD This part replaces 61446-17E10.

61446-17E11

$35.78

13

WASHER,CHAIN AD This part replaces 61446-27C20.

61446-27C21

$37.60

14

BOLT (8X50)

09100-08287

$3.10

15

NUT

08316-1008A

$2.45

16

CASE, CHAIN

61310-34E00

$94.72

17

SCREW

09139-06083

$2.26

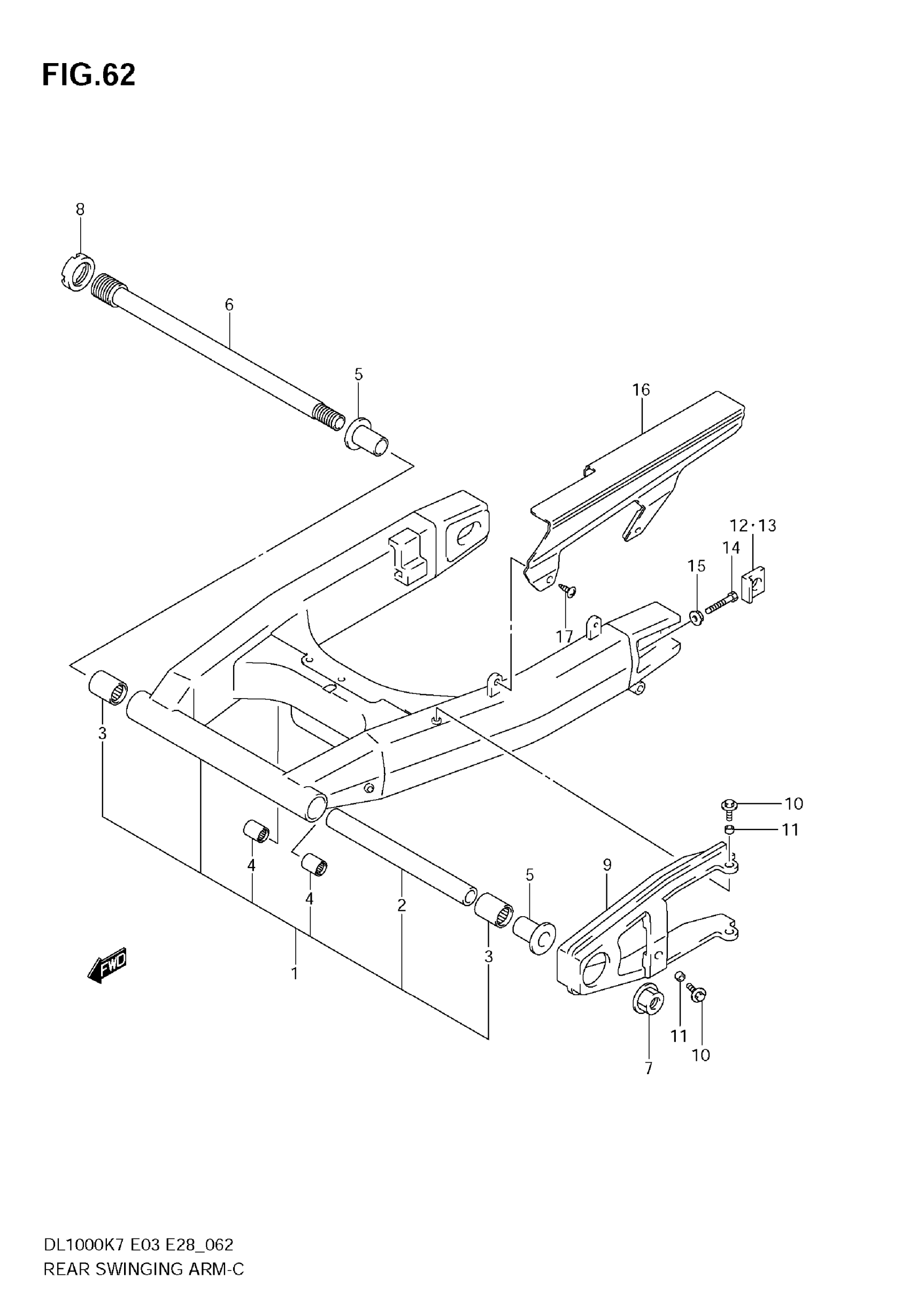

Suzuki DL1000 (2009) REAR SWINGING ARM Diagram
