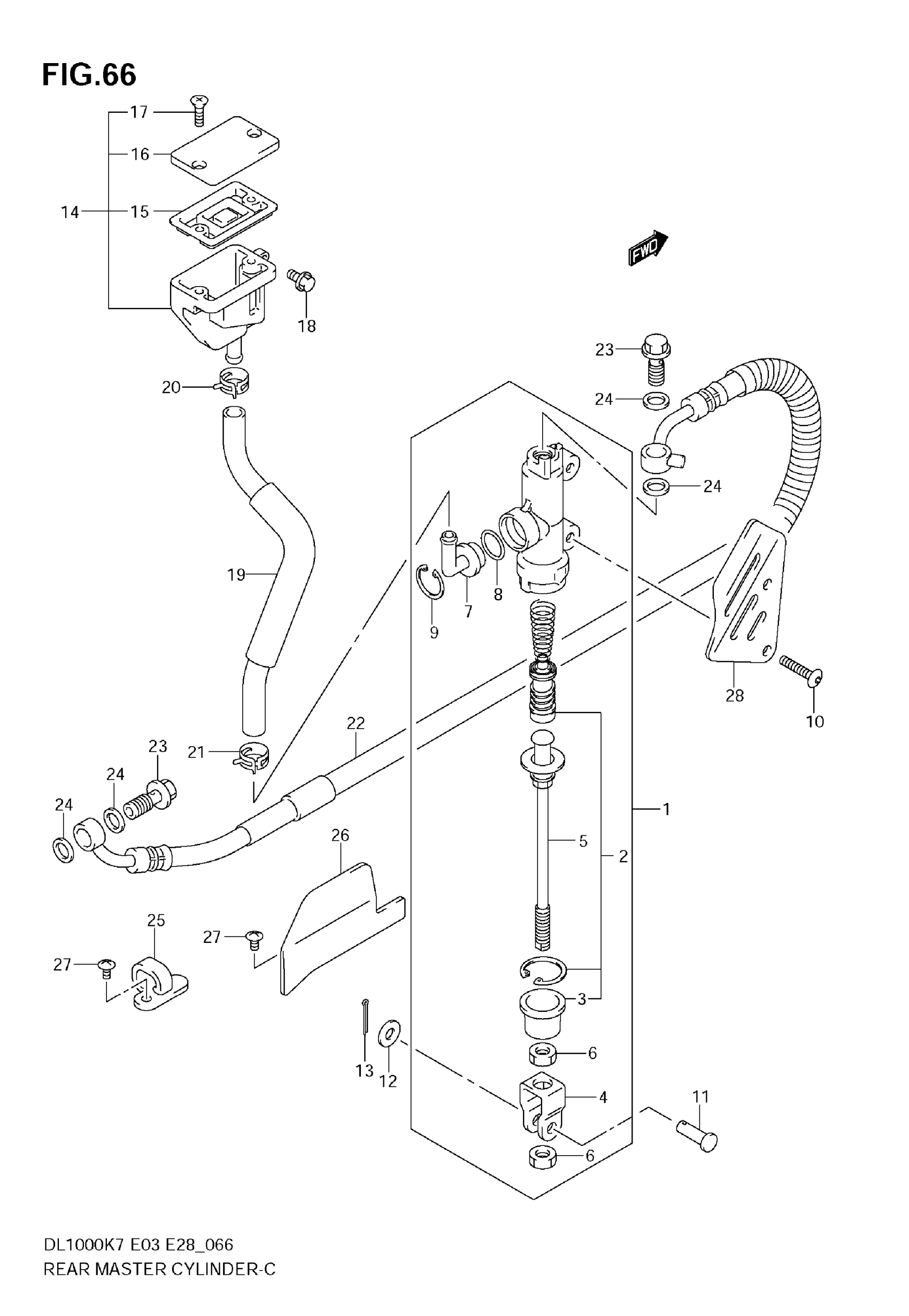

Suzuki DL1000 (2009) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, RR MASTER | Includes Item(s) 2 - 9

69600-06G00

$335.50

2

.PISTON/CUP SET This part replaces 69600-34820.

69600-34821

$24.34

3

.BOOT

69691-00A00

$5.00

4

YOKE

69692-19A00

$19.03

5

.ROD, PUSH

69670-03G00

$49.73

6

NUT

69693-05A00

$1.86

7

CONNECTOR

69672-00B20

$6.42

8

O RING

69686-34200

$2.80

9

CIRCLIP

69674-00B20

$3.73

10

BOLT (6X25)

09139-06029

$4.84

11

PIN | MODEL K7/K8

09200-06068

$3.71

11

PIN | MODEL K9

09200-08048

$2.80

12

WASHER

08322-0106B

$2.24

13

COTTER PIN

04111-2015A

$1.22

14

TANK ASSY,RR RESERVOIR | Includes Item(s) 15 - 17

69740-01D02

$64.52

15

DIAPHRAGM

59667-04700

$8.95

16

CAP

59669-05D00

$15.78

17

SCREW

69689-04A00

$2.15

18

BOLT

01547-0612B

$1.22

19

HOSE, RESERVOIR TANK

69730-06G00

$35.30

20

CLIP, UPPER

09401-13417

$2.24

21

CLIP, LOWER

09401-12404

$2.37

22

HOSE This part replaces 69480-06G01.

69480-06G02

$88.32

23

BOLT, CALIPER (10X1.25X22)

09360-10062

$5.81

24

WASHER (10X15X1.5)

09161-10009

$1.83

25

GUIDE RR BRAKE (HOLE 1-5.5) This part replaces 61196-27C30.

61196-27C50

$5.65

26

GUIDE, RR BRAKE HOSE FR This part replaces 61196-06G00.

61196-06G10

$21.88

27

SCREW

02142-0510B

$1.77

28

COVER, RR MASTER CYLINDER

69641-06G00

Unavailable
