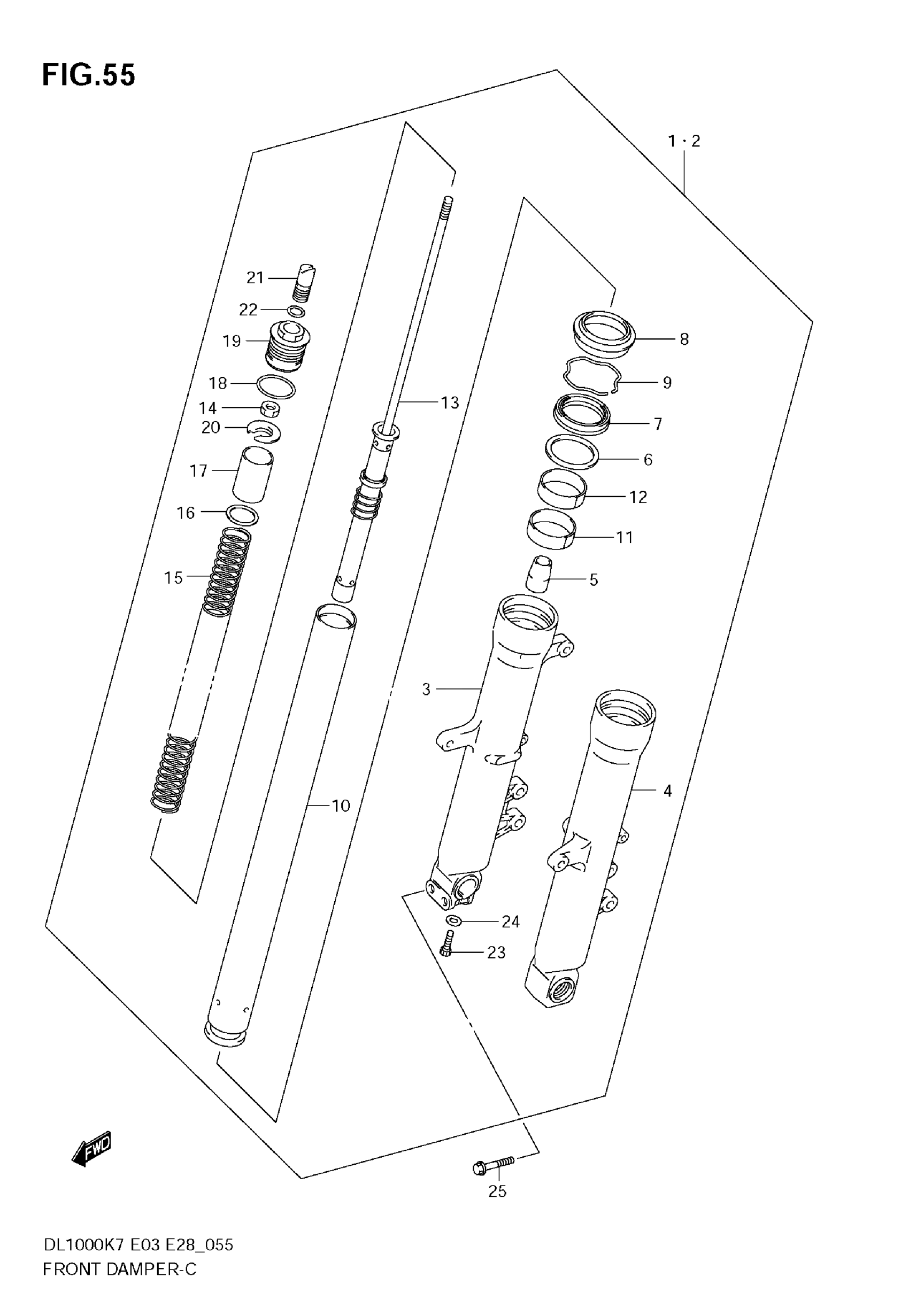

Suzuki DL1000 (2009) FRONT DAMPER Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-06G20

Unavailable

2

DAMPER ASSY, FRONT FORK LH | Includes Item(s) 3 - 24

51104-06G20

Unavailable

3

TUBE, OUTER RH

51130-06G00

Unavailable

4

TUBE, OUTER LH

51140-06G00

Unavailable

5

PIECE, OIL LOCK

51195-31E00

$34.12

6

.SPACER, SEAL

51168-17C00

$5.91

7

SEAL, OIL

51153-14D00

$21.02

8

SEAL, DUST

51173-29E00

$24.34

9

RING, OIL SEAL STOPPER

51556-38B00

$6.61

10

TUBE, INNER

51110-06G20

$545.95

11

BUSH, SLIDE

51121-13E00

$17.20

12

BUSH, GUIDE

51152-13E00

$18.07

13

ROD, FRONT DAMPER

52110-06G20

Unavailable

14

.NUT

51827-27E00

Unavailable

15

SPRING, FRONT

51171-06G20

$116.63

16

SEAT, SPRING

51186-17C00

$8.52

17

COLLAR, SPRING

51176-12C10

$15.70

18

O RING

51117-17C00

$5.61

19

BOLT, FORK

51189-14D00

Unavailable

20

SEAT, SPRING UPPER

51172-17C00

$16.03

21

ADJUSTER, SPRING

51185-31E00

Unavailable

22

O RING

09280-14011

$4.30

23

BOLT

51147-48130

$3.97

24

GASKET

51148-36011

$3.26

25

BOLT, RH

51166-06G00

$9.25
