Description

Price

1

FENDER, REAR FRONT This part replaces 63111-06G00.

63111-06G10

$143.65

1

FENDER, REAR FRONT | E33

63111-06G10

$143.65

2

BRACKET, FUEL SENSOR

47412-06G01

Unavailable

3

RIVET

09229-04020

$2.66

4

BOLT

09116-06210

$2.47

5

FENDER, REAR (BLACK)

63112-06G10-291

$213.15

6

BOLT

01547-0612B

$1.49

7

WASHER

09160-06156

$2.25

8

SPANNER, 8X10

09813-00027

Unavailable

9

TOOL ASSY

09800-21035

Unavailable

10

O RING(D:3.5,ID This part replaces 09280-61002.

09280-61004

$2.60

11

MUD GUARD, REAR FENDER LOWER

63421-19F00

Unavailable

12

SCREW

02162-0616B

$2.03

13

WASHER

09169-06071

$2.50

14

LOCK SET, HELMET

95700-42810

Unavailable

15

SCREW

02122-0620B

$1.93

16

CABLE,HELMET LO This part replaces 95740-06G00.

95740-06G01

$24.53

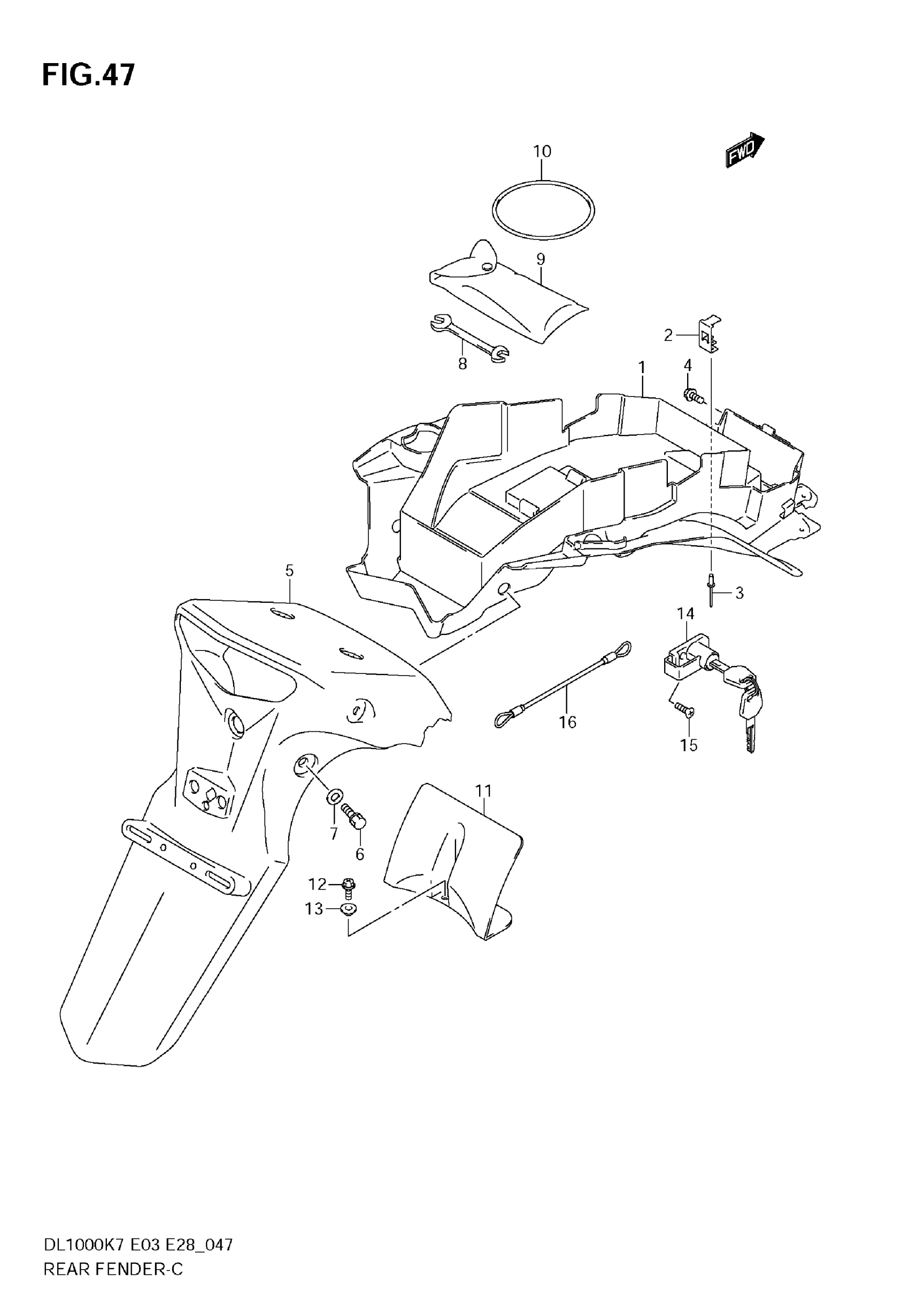

Suzuki DL1000 (2009) REAR FENDER Diagram

FENDER, REAR FRONT This part replaces 63111-06G00.

FENDER, REAR FRONT | E33

BRACKET, FUEL SENSOR

RIVET

BOLT

FENDER, REAR (BLACK)

BOLT

WASHER

SPANNER, 8X10

TOOL ASSY

O RING(D:3.5,ID This part replaces 09280-61002.

MUD GUARD, REAR FENDER LOWER

SCREW

WASHER

LOCK SET, HELMET

SCREW

CABLE,HELMET LO This part replaces 95740-06G00.
