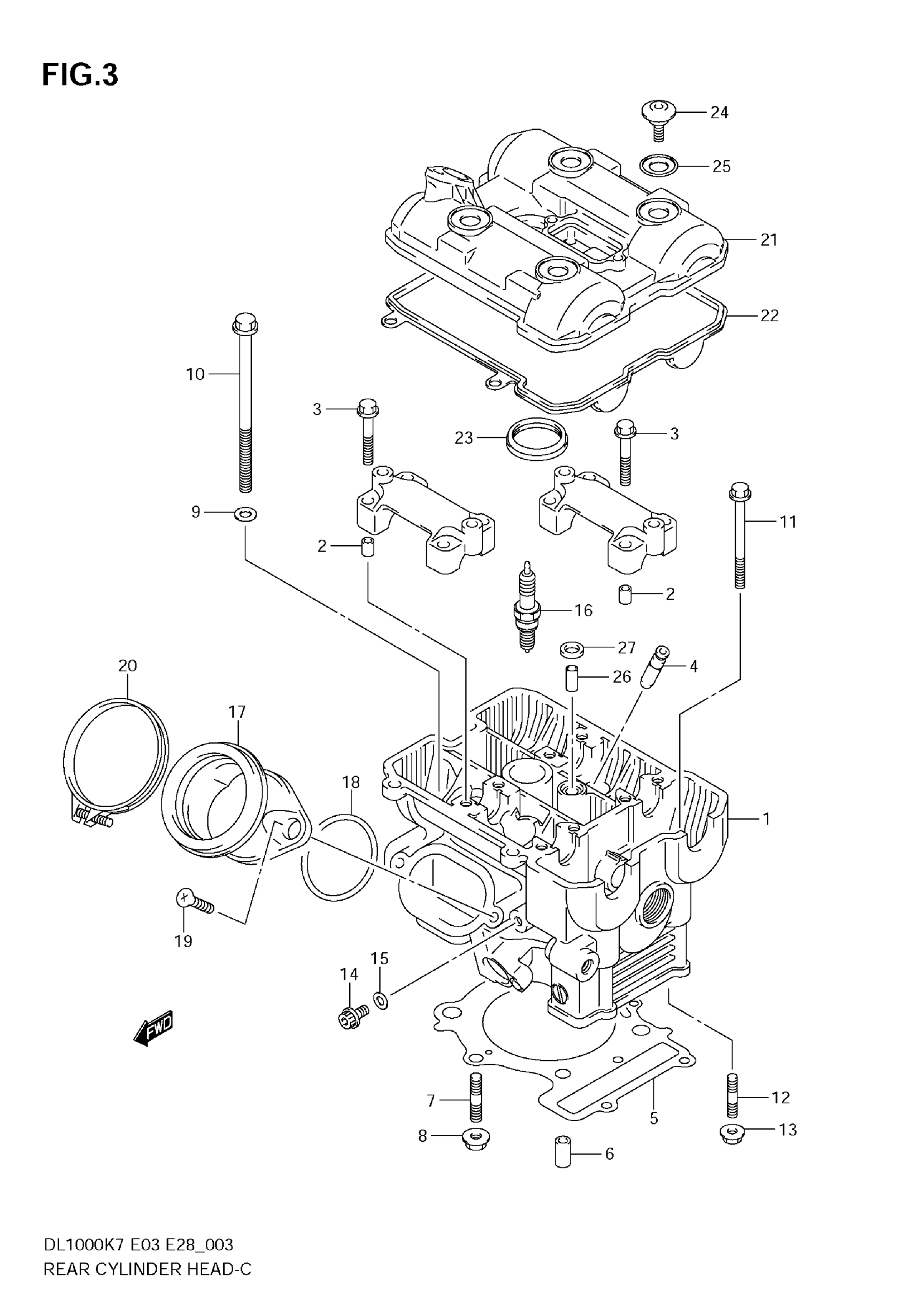

Suzuki DL1000 (2009) REAR CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER REAR | Includes Item(s) 2 - 3

11100-06G00

Unavailable

2

PIN

09206-08001

$1.78

3

BOLT (6X39)

09103-06026

$1.98

4

GUIDE, VALVE (OS:0.3) | OPT

11115-32E70

$33.35

5

GASKET

11141-02F01

$44.72

6

PIN

04211-13189

$2.19

7

STUD BOLT (8X35)

09108-08143

$3.78

8

NUT

08316-1008B

$2.66

9

WASHER

09160-10082

$1.61

10

BOLT (10X175)

09103-10276

$16.01

11

BOLT (6X70)

09103-06103

$2.53

12

STUD BOLT (6X30)

09108-06096

$2.27

13

NUT

08316-1006B

$2.50

14

PLUG

07120-0612B

$3.04

15

GASKET

09168-06023

$2.35

16

SPARK PLUG (NGK,CR8EK)

09482-00412

$10.62

16

SPARK PLUG (DENSO,U24ETR)

09482-00413

$13.17

16

SPARK PLUG (NGK,CR9EK) | OPT

09482-00410

$11.59

16

SPARK PLUG (DENSO,U27ESR-N) | OPT This part replaces 09482-00411.

09482-00459

$6.09

16

SPARK PLUG (NGK,CR10EK) | OPT

09482-00462

$12.50

16

SPARK PLUG (DENSO,U31ETR) | OPT

09482-00463

$15.42

17

PIPE, INTAKE REAR | Includes Item(s) 18

13102-06G00

$83.15

18

O RING

09280-55005

$6.42

19

SCREW

02122-0616B

$1.96

20

CLAMP

09402-70902

$5.64

21

COVER, CYLINDER HEAD

11172-06G00

Unavailable

22

GASKET

11173-02F00

$36.79

23

GASKET

11178-17E00

$6.64

24

BOLT (7X17.5) This part replaces 09106-07009.

09106-07021

$4.50

25

WASHER

11191-27E00

$4.27

26

PIN

09206-08007

$2.60

27

GASKET, 2ND AIR PASSAGE

11182-35F00

$3.29
