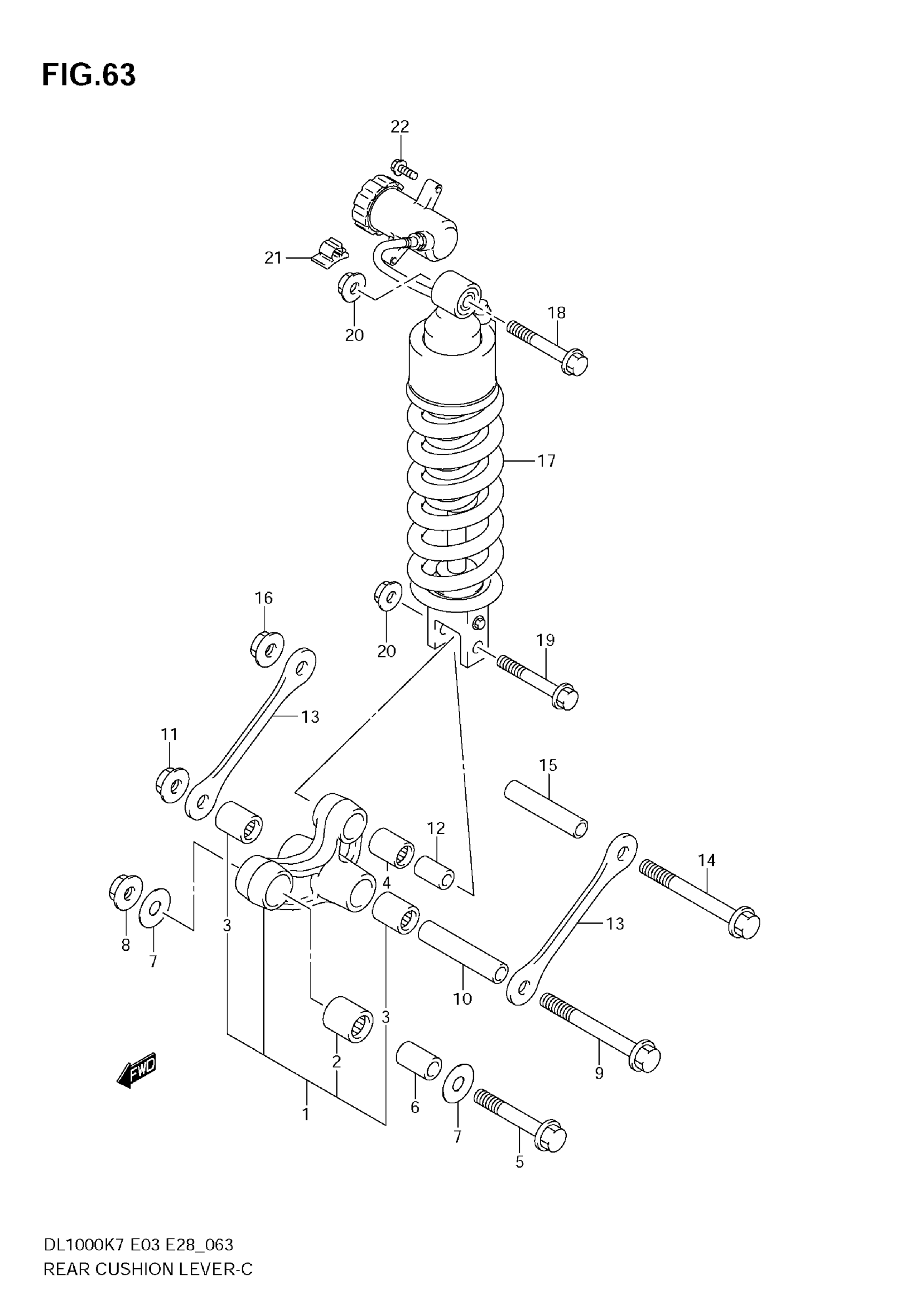

Suzuki DL1000 (2009) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET, RR CUSHION | Includes Item(s) 2 - 4 This part replaces 62600-06870.

62600-06872

$404.70

2

.BEARING (20X27X30) This part replaces 09263-20073.

09263-20121

$16.32

3

.BEARING (17X24X25) This part replaces 09263-17037.

09263-17053

$19.55

4

.BEARING (17X24X26) This part replaces 09263-17034.

09263-17057

$19.09

5

BOLT, RR CUSHION LEVER FR

62658-19F00

$13.50

6

SPACER,RR CUSHION LEVER FR (1

62684-12C00

$20.72

7

WASHER

09160-12037

$3.52

8

NUT

09159-12056

$6.65

9

BOLT,RR CUSHION ROD (12X111)

62621-19D00

$21.62

10

SPACER, CENTER (12X17X85)

09180-12122

$25.05

11

NUT

09159-12056

$6.65

12

SPACER, REAR (10X17X30)

62684-40A10

$11.44

13

ROD, RR CUSHION LEVER

62641-06G00

$36.48

14

BOLT,RR CUSHION ROD (12X111)

62621-19D00

$21.62

15

SPACER, ROD (12X17X85)

09180-12122

$25.05

16

NUT

09159-12056

$6.65

17

ABSORBER ASSY, REAR SHOCK (SILVER) | E28

62100-06G10-13L

Unavailable

17

ABSORBER ASSY, REAR SHOCK (SILVER) | E3,E33

62100-06G20-13L

Unavailable

18

BOLT, UPPER (10X70)

09103-10033

$5.64

19

BOLT, LOWER

09103-10143

$4.92

20

NUT

09159-10115

$3.21

21

CLAMP, ADJUSTER HOSE

09403-10313

Unavailable

22

BOLT, TANK

01550-0616A

$1.97
