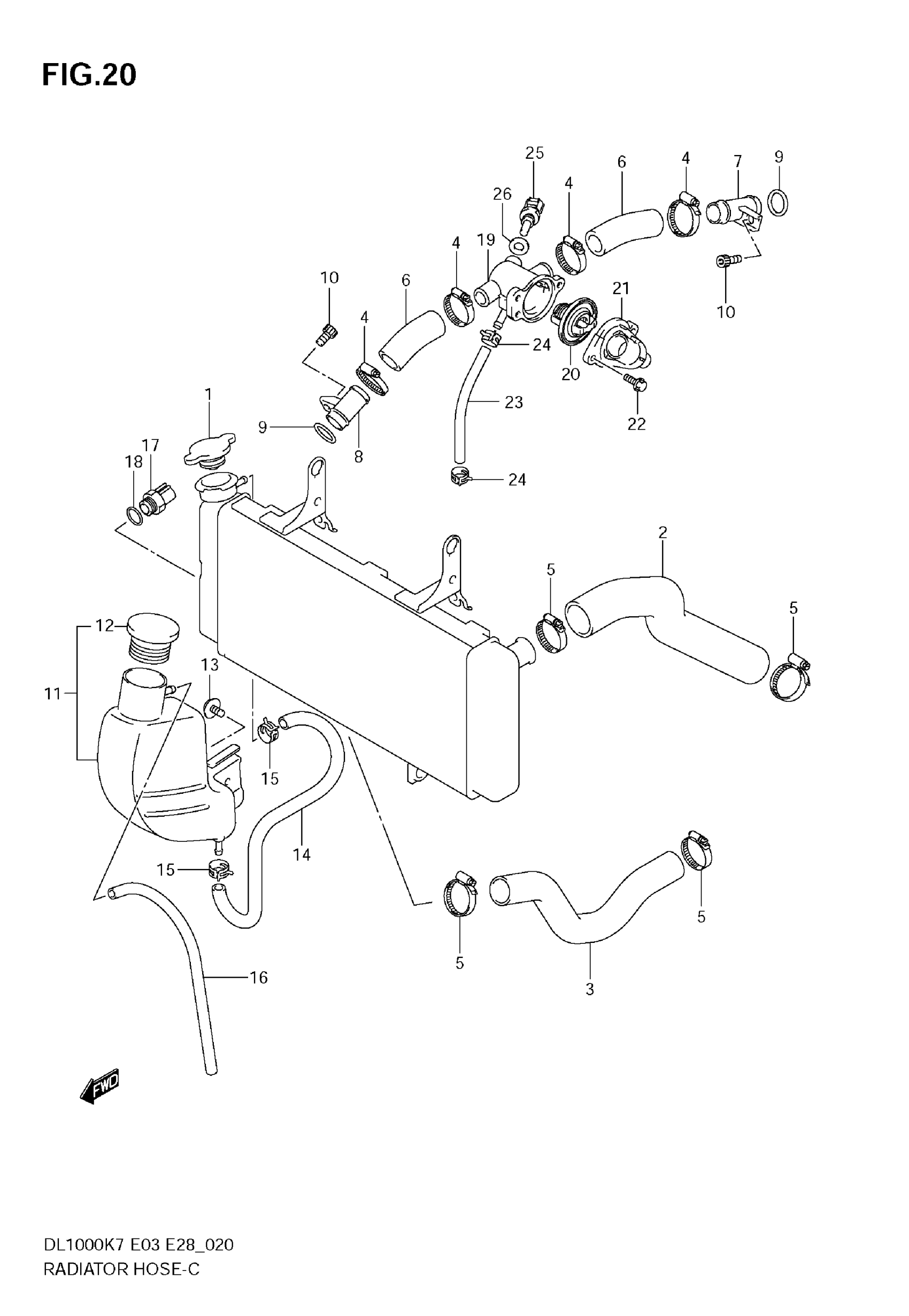

Suzuki DL1000 (2009) RADIATOR HOSE Diagram

#

Description
Price

1

CAP, RADIATOR This part replaces 17730-12C20.

17730-08J00

$40.65

2

HOSE, RADIATOR INLET

17851-06G00

$32.85

3

HOSE, RADIATOR OUTLET

17852-06G00

$31.93

4

CLAMP

09402-28513

$6.53

5

CLAMP

09402-38512

$11.11

6

HOSE, CONNECTOR INLET

17853-02F00

$9.29

7

UNION, CONNECTOR HOSE

17890-06G20

$14.20

8

UNION, CONNECTOR HOSE

17890-06G20

$14.20

9

O RING

09280-18009

$5.42

10

BOLT

07130-0612A

$2.58

11

TANK ASSY, RESERVOIR | Includes Item(s) 12

17910-06G10

$79.62

12

CAP

17931-06G00

$10.48

13

BOLT

09111-06085

$4.28

14

HOSE, RESERVOIR TANK INLET

17981-19F00

$16.58

15

CLIP

09401-08411

$1.82

16

HOSE, RESERVOIR TANK | L:2000!950

09352-50901-00B

$34.43

17

SWITCH,RDTR FAN | Includes Item(s) 18 This part replaces 17680-33E00.

17680-33E01

$46.33

18

O RING

17689-50F00

$2.63

19

CONNECTOR,THERMOSTAT INLET

17662-02F11

$72.57

20

THERMOSTAT,WATER This part replaces 17670-06G50.

17670-06G51

$24.64

21

CAP,THERMOSTAT CONNECTOR

17663-42E00

$61.78

22

BOLT

01550-0616B

$2.53

23

HOSE, WATER BYPASS

17856-16G10

$25.08

24

CLIP This part replaces 09401-12409.

09401-12414

$3.09

25

SENSOR, WATER TEMP

13650-57F00

$136.53

26

GASKET, TEMP SENSOR

09168-12017

$2.01
