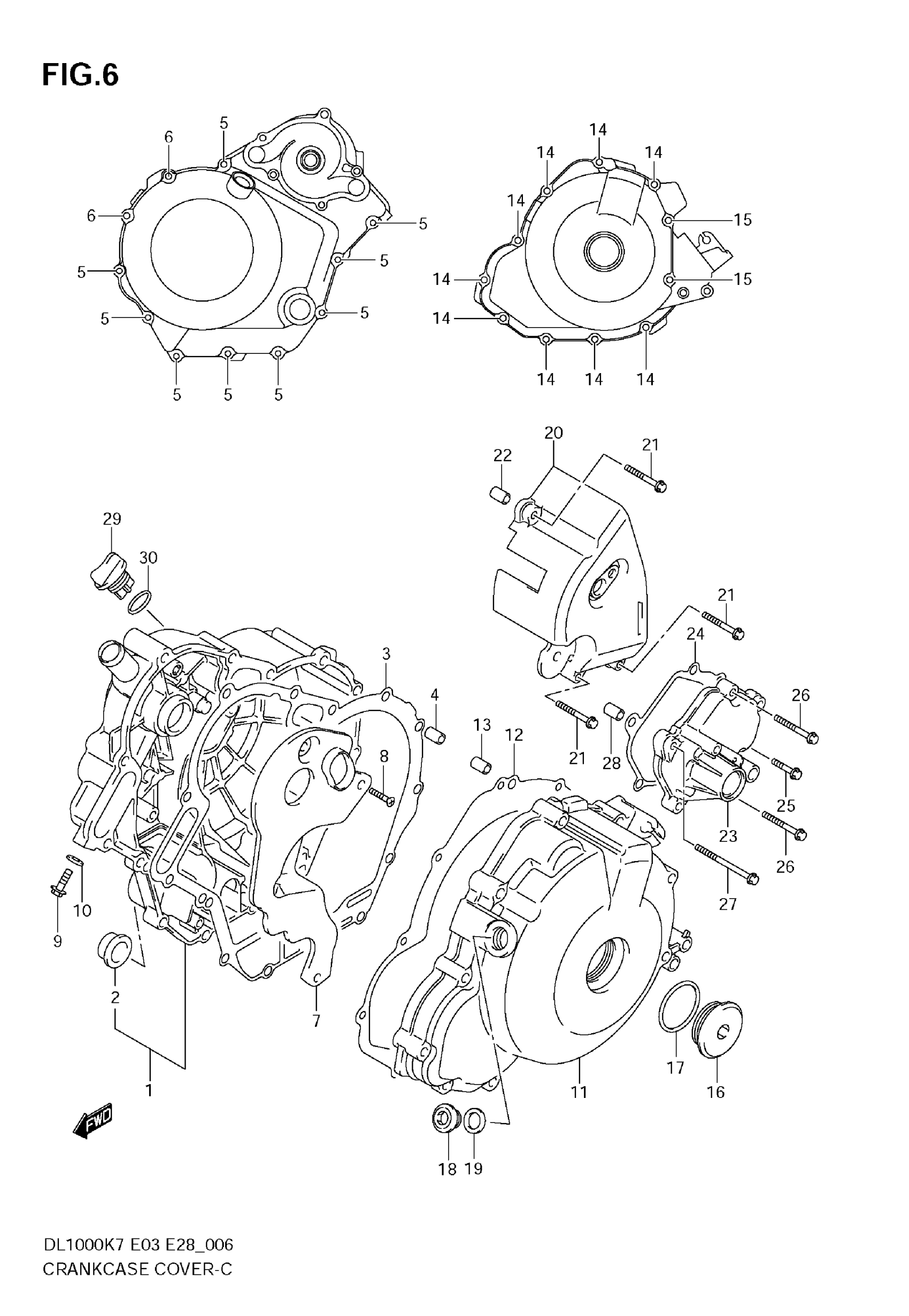

Suzuki DL1000 (2009) CRANKCASE COVER Diagram

#

Description
Price

1

COVER COMP,CLUT | Includes Item(s) 2 This part replaces 11340-06G20.

11340-06G21

$387.45

2

LENS, OIL LEVEL CHECK

11971-33210

$17.41

3

GASKET, CLUTCH COVER

11482-06G10

$18.51

4

PIN

04211-09149

$1.70

5

BOLT (L:30)

09103-06213

$2.53

6

BOLT (L:75)

09103-06257

$2.98

7

SEPARATOR,OIL

11342-06G00

$64.72

8

SCREW, OIL SEPARATOR

02112-0612B

$2.01

9

BOLT, CLUTCH COVER WATER DRAIN

01550-0610B

$2.53

10

GASKET, 6.4X11.5X0.84

09168-06026

$2.88

11

COVER,MAGNETO This part replaces 11351-02F51.

11351-02F52

$424.90

12

GASKET, MAGNETO COVER

11483-02F10

$16.79

13

PIN

04211-09149

$1.70

14

BOLT (L:35)

09103-06214

$2.57

15

BOLT (L:70)

09103-06225

$3.00

16

PLUG, CRANKSHAFT HOLE

09259-36016-20H

$12.83

17

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.31

18

PLUG, SHAFT This part replaces 09248-14005.

09248-14011

$2.81

19

GASKET

09168-14002

$2.83

20

COVER, ENGINE SPROCKET

11360-06G00

$96.63

21

BOLT

09103-06214

$2.57

22

PIN

04211-09149

$1.70

23

COVER,GEAR SHIFT

11381-06G00

$112.45

24

GASKET

11485-02F10

$4.91

25

BOLT

09103-06126

$4.12

26

BOLT

01547-0625B

$2.50

27

BOLT

01547-0635B

$2.80

28

PIN

04211-09149

$1.70

29

PLUG,ENGINE OIL FILLER

11971-25D00

$4.89

30

O RING

09280-17003

$1.70
