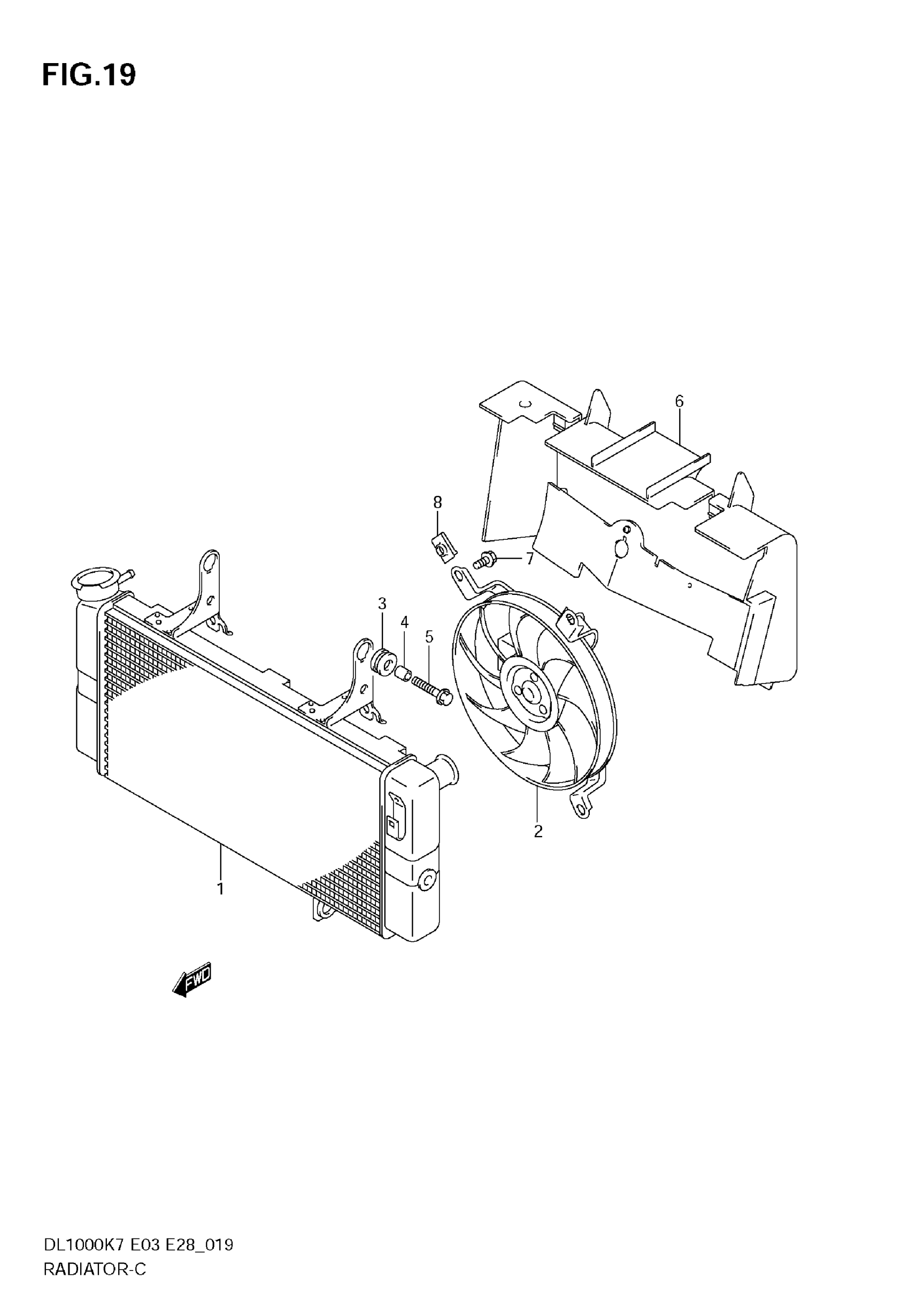

Suzuki DL1000 (2009) RADIATOR Diagram

#

Description

Price

1

RADIATOR ASSY, WATER

17710-06G00

$1,071.17

2

FAN ASSY

17800-06G00

Unavailable

3

CUSHION

09320-10051

$2.99

4

SPACER

09180-06290

$2.35

5

BOLT (6X20)

09118-06097

$2.50

6

SHIELD, RADIATOR HEAT

17760-06G00

Unavailable

7

BOLT

17711-40F00

$5.58

8

NUT, FAN ASSY

17712-40F00

$4.68
