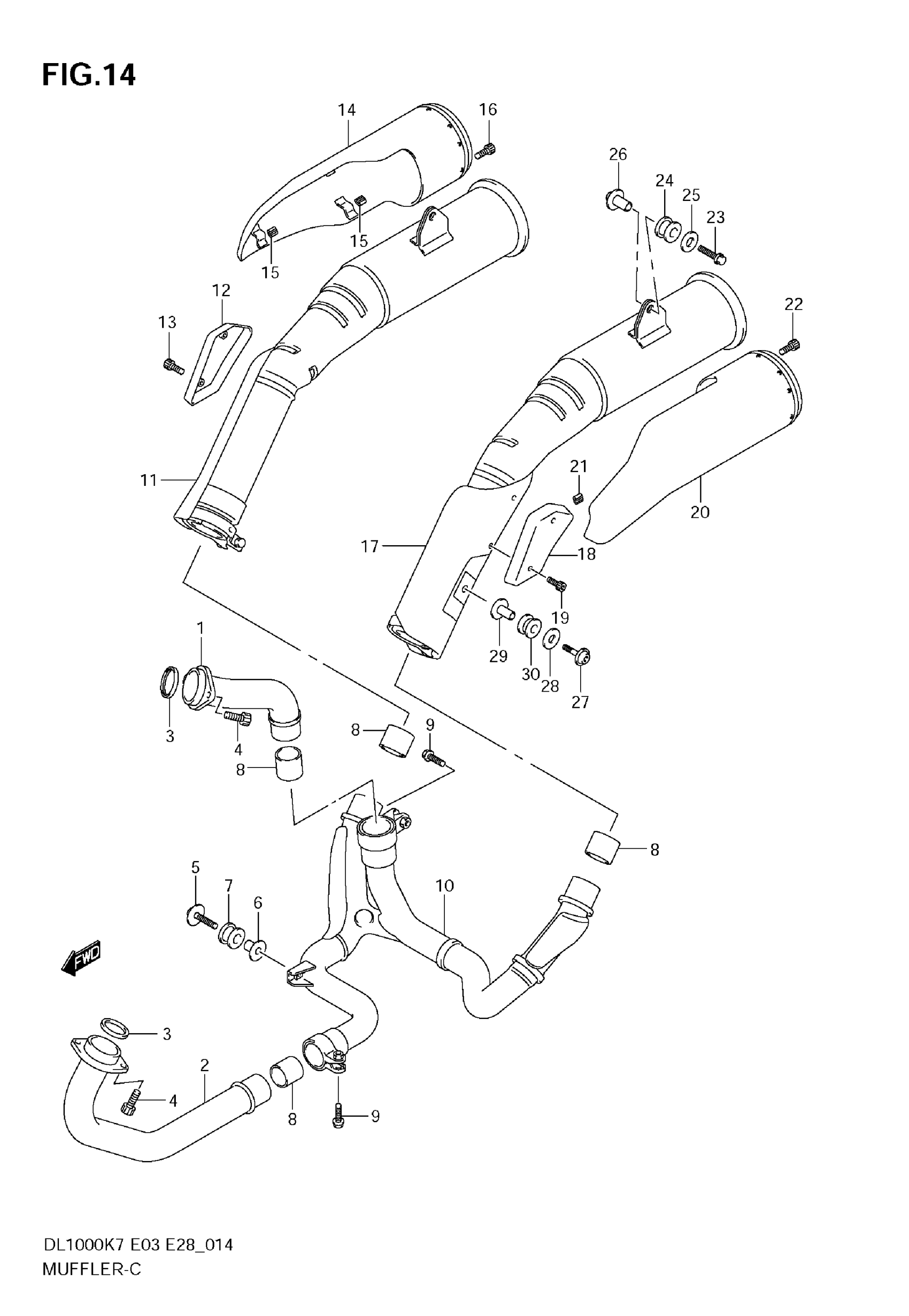

Suzuki DL1000 (2009) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST RH

14150-06G00

Unavailable

2

PIPE, EXHAUST LH

14160-06G00

Unavailable

3

GASKET, EXHAUST PIPE

14181-31D00

$10.28

4

BOLT, EXHAUST PIPE

09106-08165

$4.03

5

BOLT (8X45) This part replaces 09118-08152.

09118-08152-A05

$5.24

6

SPACER, EXHAUST SUPPORT

09180-08152

$5.83

7

CUSHION, EXHAUST SUPPORT

09320-12048

$5.11

8

CONNECTOR, EXHAUST

14771-02F00

$21.84

9

BOLT, CONNECTOR

09103-08392

$3.62

10

PIPE, EXHAUST CENTER

14205-06G10

Unavailable

11

MUFFLER, RH

14305-06G02-H01

Unavailable

12

PROTECTOR, MUFFLER COVER, RH

14186-06G00

Unavailable

13

SCREW, PROTECTOR MUFFLER

07130-0512B

$2.50

14

COVER, MUFFLER, RH

14780-06G01

Unavailable

15

GROMMET, MUFFLER COVER

14795-06G00

Unavailable

16

SCREW, MUFFLER COVER

09106-06076

$3.29

17

MUFFLER, LH

14306-06G02-H01

Unavailable

18

PROTECTOR, MUFFLER COVER, LH

14196-06G00

Unavailable

19

SCREW, PROTECTOR MUFFLER

07130-0512B

$2.50

20

COVER, MUFFLER, LH

14790-06G01

Unavailable

21

GROMMET, MUFFLER COVER

14795-06G00

Unavailable

22

SCREW, MUFFLER COVER

09106-06076

$3.29

23

BOLT, MUFFLER SUPPORT

09103-08358

$3.42

24

CUSHION, MUFFLER SUPPORT

09320-12049

$10.68

25

WASHER, MUFFLER SUPPORT

09160-08146

$2.60

26

NUT, MUFFLER SUPPORT

14414-06G00

Unavailable

27

BOLT, MUFFLER SUPPORT FRONT

09106-08147

$6.25

28

WASHER, MUFFLER SUPPORT FRONT

09160-08134

$2.03

29

SPACER, MUFFLER SUPPORT FRONT

09180-08151

$5.18

30

CUSHION, MUFFLER SUPPORT FRONT

09320-12043

$7.98
