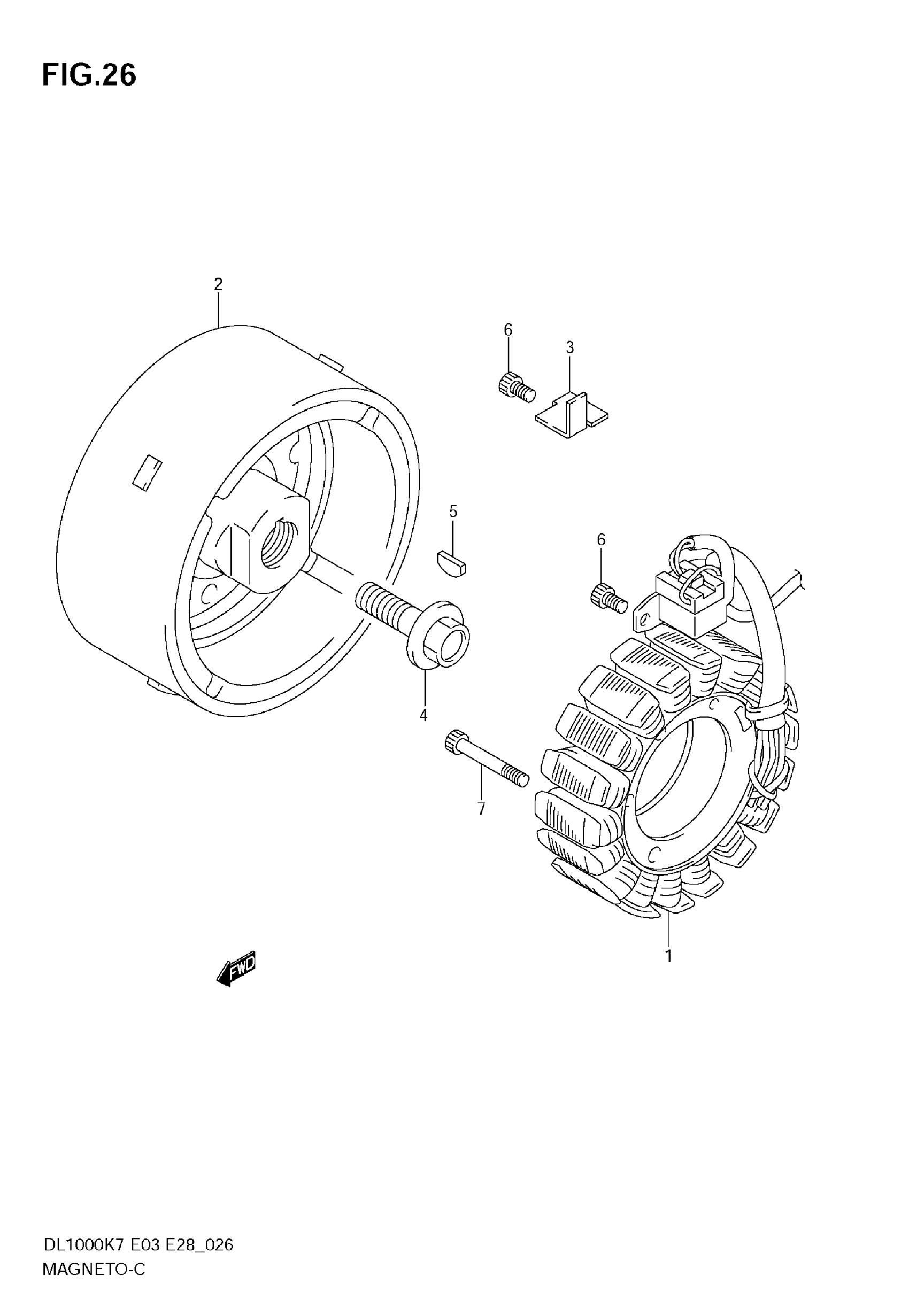

Suzuki DL1000 (2009) MAGNETO Diagram

#

Description

Price

1

STATOR ASSY,MAG This part replaces 32101-06G10.

32101-06G11

$518.13

2

ROTOR ASSY

32102-06G10

$535.90

3

CLAMP, MAGNETO

32371-13E00

$3.56

4

BOLT, ROTOR

32491-06G00

$7.88

5

KEY

09420-04008

$3.42

6

BOLT, PICK UP

07130-0510B

$2.62

7

BOLT, STATOR (6X35)

09106-06088

$4.15
