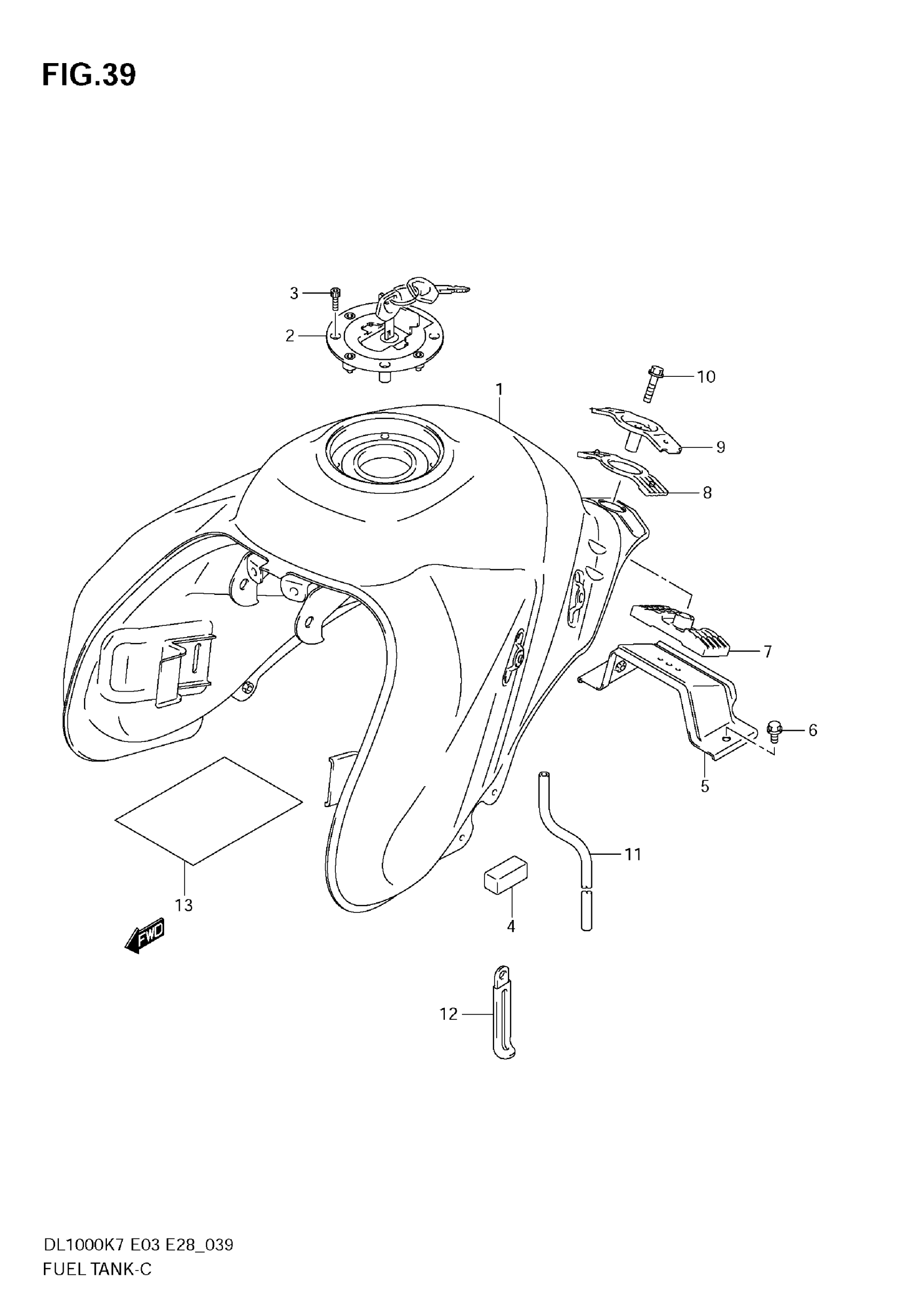

Suzuki DL1000 (2009) FUEL TANK (MODEL K7/K8) Diagram

#

Description
Price

1

TANK ASSY,FUEL( | E3,E28 FOR BPK This part replaces 44110-06G00-YAY.

44100-06G31-YAY

$1,746.07

1

TANK, FUEL (GRAY) | E3,E28 FOR DWG

44110-06G00-YU8

Unavailable

1

TANK, FUEL (BLUE) | E3,E28 FOR DWH

44110-06G00-YKY

Unavailable

1

TANK, FUEL (SILVER) | E3,E28 FOR EGR

44110-06G00-YMD

Unavailable

1

TANK ASSY, FUEL | E33 FOR BPK This part replaces 44110-06G20-YAY.

44100-06G51-YAY

Unavailable

1

TANK, FUEL (GRAY) | E33 FOR DWG

44110-06G20-YU8

Unavailable

1

TANK, FUEL (BLUE) | E33 FOR DWH

44110-06G20-YKY

Unavailable

1

TANK, FUEL (SILVER) | E33 FOR EGR

44110-06G20-YMD

Unavailable

2

CAP SET,FUEL TA This part replaces 44201-33820.

44201-33822

$152.27

2

CAP SET,FUEL TA | E33 This part replaces 44200-33830.

44200-33831

$318.75

3

BOLT

09106-05017

$2.83

4

CUSHION, SIDE

44541-06G00

$10.62

5

BRACKET, FUEL TANK RR This part replaces 44550-06G01.

44550-06G10

Unavailable

6

BOLT

01550-0816B

$2.73

7

CUSHION,FUEL TANK RR LWR

44545-06G00

$18.25

8

CUSHION,FUEL TANK RR UPR

44542-06G00

$16.78

9

BRACKET,FUEL TANK RR UP

44530-06G00

Unavailable

10

BOLT

01550-0835B

$3.95

11

HOSE,FUEL TANK This part replaces 44423-06G00.

44423-06G01

$17.92

12

CLAMP

09404-06429

$1.83

13

SHIELD, CENTER

44194-06G00

$33.25
