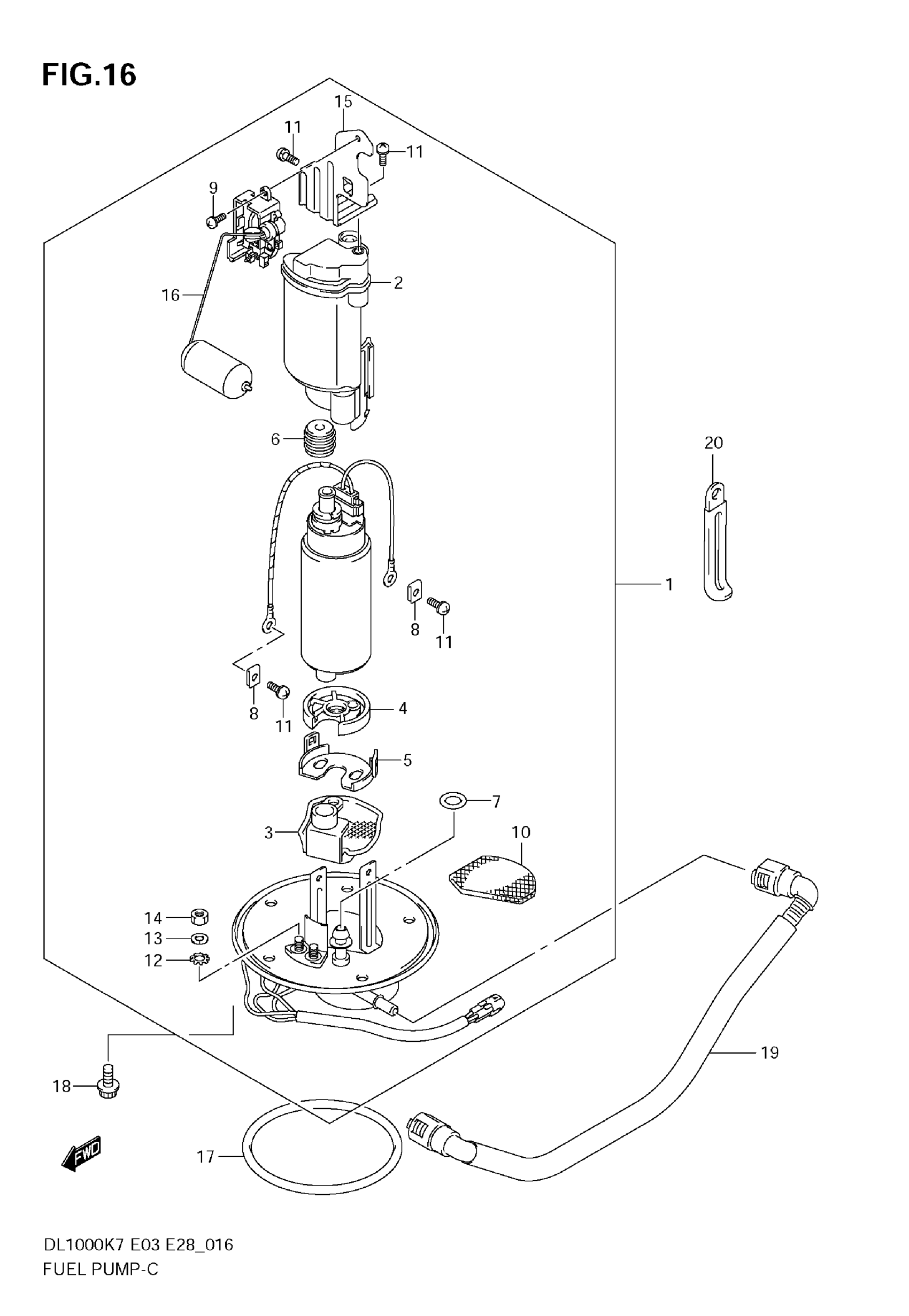

Suzuki DL1000 (2009) FUEL PUMP Diagram

#

Description
Price

1

PUMP ASSY, FUEL | Includes Item(s) 2 - 16

15100-06G10

$1,196.35

2

FILTER ASSY, FUEL

15410-24FB0

$478.36

3

STRAINER, FUEL PUMP

15420-35F01

$100.92

4

CUSHION, FUEL PUMP

15111-35F00

$9.25

5

HOLDER, FUEL PUMP

15112-42F00

$19.13

6

BUSH, FUEL PUMP

15114-35F00

$15.23

7

O RING

15113-35F00

$8.91

8

NUT

15115-35F00

$10.34

9

SCREW

15116-06G10

$7.20

10

SHEET

15117-06G10

$15.25

11

SCREW

15116-35F10

$6.31

12

WASHER

15171-35F00

$7.20

13

SPRING WASHER

15172-35F00

$7.20

14

NUT

15173-35F00

Unavailable

15

BRACKET, FUEL GAUGE

15181-06G00

Unavailable

16

GAUGE ASSY

34810-06G10

$220.03

17

O-RING

15201-35F00

$27.60

18

BOLT

07120-0612B

$3.04

19

HOSE, FUEL This part replaces 15810-06G00.

15810-06G01

$66.60

20

CLAMP

09404-06429

$1.83
