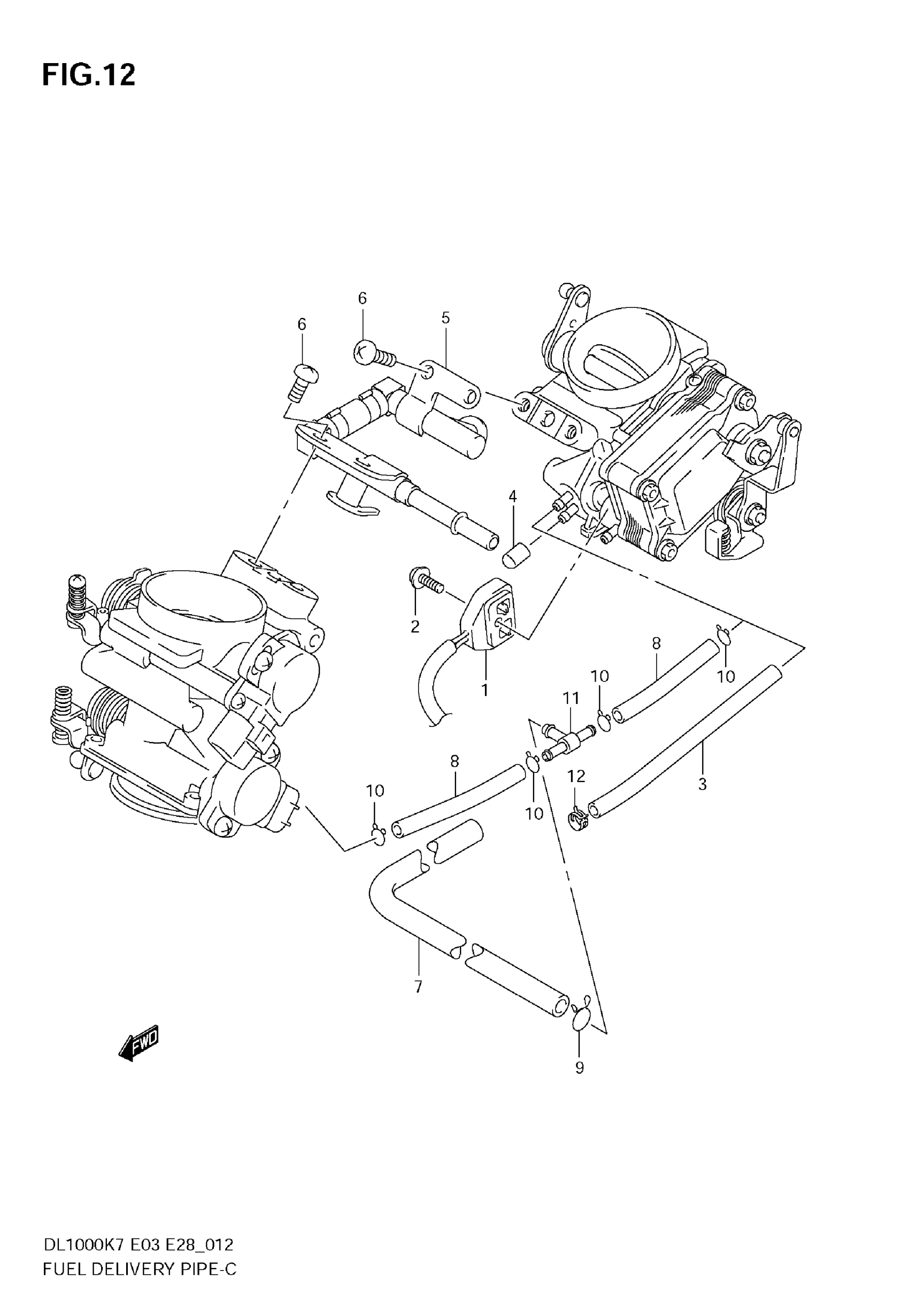

Suzuki DL1000 (2009) FUEL DELIVERY PIPE Diagram

#

Description
Price

1

HARNESS ASSY

13477-39F00

Unavailable

2

SCREW This part replaces 02112-34163.

02112-3416B

$2.19

3

HOSE (L:425) | E3,E28 L:125 This part replaces 13683-10F60.

13683-10F61

$17.10

4

CAP

13274-84000

$3.82

5

DELIVERY PIPE ASSY

15730-06G01

$306.43

6

SCREW

13602-06128

$2.96

7

HOSE | E33

13683-06G11

$94.55

8

HOSE | E33

13681-06G40

Unavailable

9

CLIP | E33 This part replaces 09401-10410.

09401-10401

$1.49

10

CLIP | E33

09401-06101

$2.03

11

NIPPLE | E33

13685-04F10

$11.07

12

CLIP (ID:9.4,H:8) | E33

09401-09403

$2.03
