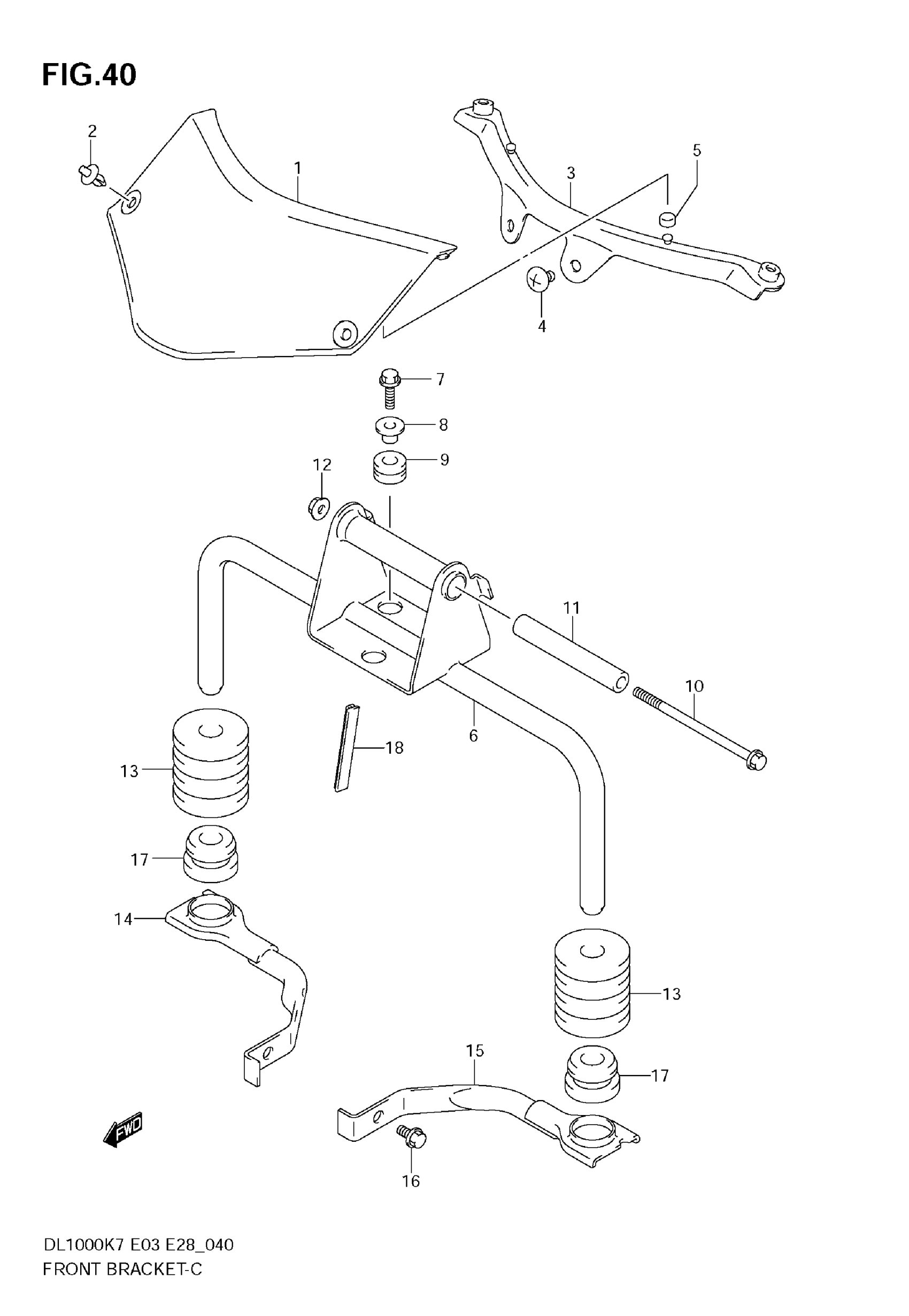

Suzuki DL1000 (2009) FRONT BRACKET Diagram

#

Description
Price

1

COVER, FRONT (BLACK)

44171-06G10-291

$27.96

2

CLIP (BLACK)

09409-06314-5PK

$2.78

3

BRACKET, COVER

44160-06G00

$48.38

4

SCREW

02142-0612B

$2.05

5

CUSHION, COVER

44164-06G00

$6.72

6

BRACKET, FRONT

44520-06G00

Unavailable

7

BOLT

01550-0620B

$2.39

8

SPACER

09169-06062

$2.50

9

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.06

10

BOLT

01550-0695B

$3.91

11

SPACER

44561-35F00

$13.88

12

NUT

08319-3106B

$2.45

13

CUSHION

44511-06G00

Unavailable

14

BRACKET,FR SIDE This part replaces 44560-06G00.

44560-06G01

$31.27

15

BRACKET, SIDE LH

44570-06G00

Unavailable

16

BOLT

01550-0612B

$2.39

17

CUSHION

09320-12054

Unavailable

18

MOLDING, COVER

68241-04X50-300

$7.32
