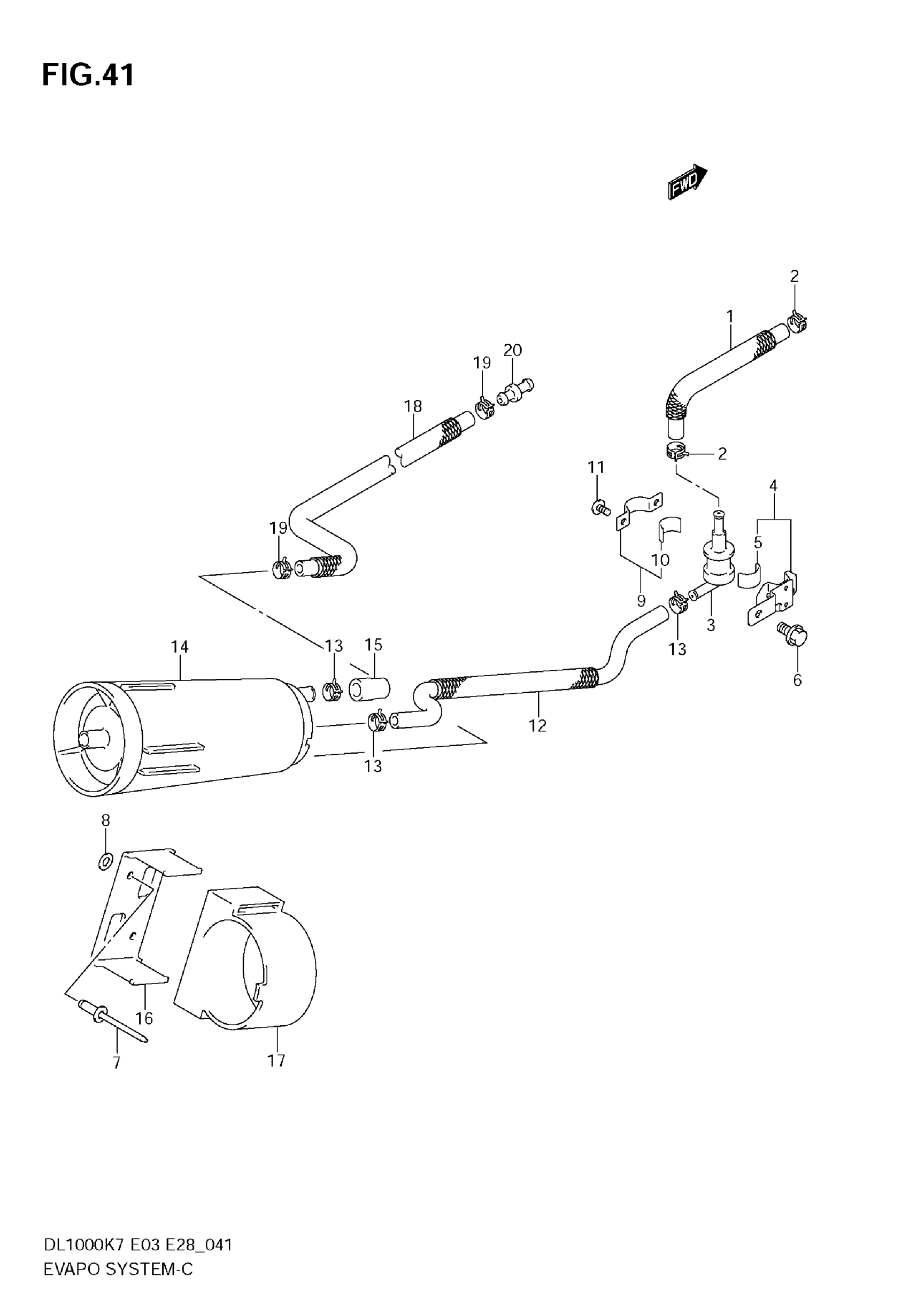

Suzuki DL1000 (2009) EVAP SYSTEM (E33) Diagram

#

Description
Price

1

HOSE, TANK & VALVE | MODEL K7

44434-06G00

Unavailable

1

HOSE, TANK & VALVE | MODEL K8/K9

44434-06G10

Unavailable

2

CLIP

09401-11413

$2.26

3

VALVE FUEL TANK BREATHER

44240-17C00

$64.68

4

BRACKET, BREATHER VALVE | Includes Item(s) 5

44890-06G00

Unavailable

5

CUSHION (10X30X2)

44894-24A00

$1.72

6

BOLT, PLATE

01550-0612B

$2.39

7

RIVET

09229-04020

$2.66

8

WASHER

08322-0104B

$1.49

9

PLATE,FUEL TANK BREATHER NO.2 | Includes Item(s) 10

44892-24A00

$4.52

10

CUSHION (10X30X2)

44894-24A00

$1.72

11

SCREW, PLATE

02142-0408B

$1.70

12

HOSE, VALVE & CANISTER | MODEL K7

44435-06G00

Unavailable

12

HOSE, VALVE & CANISTER | MODEL K8/K9

44435-06G10

Unavailable

13

CLIP

09401-11413

$2.26

14

CANISTER ASSY CHARCOAL

17210-26E00

$324.10

15

CAP

09251-07003

$2.53

16

BRACKET, CANISTER

44881-06G00

Unavailable

17

CUSHION,CANISTER This part replaces 44883-06G00.

44883-06G01

$15.22

18

HOSE, PURGE | MODEL K7

44436-06G00

Unavailable

18

HOSE, PURGE | MODEL K8/K9

44436-06G10

Unavailable

19

CLIP

09401-12404

$2.34

20

JOINT

09364-06009

Unavailable
