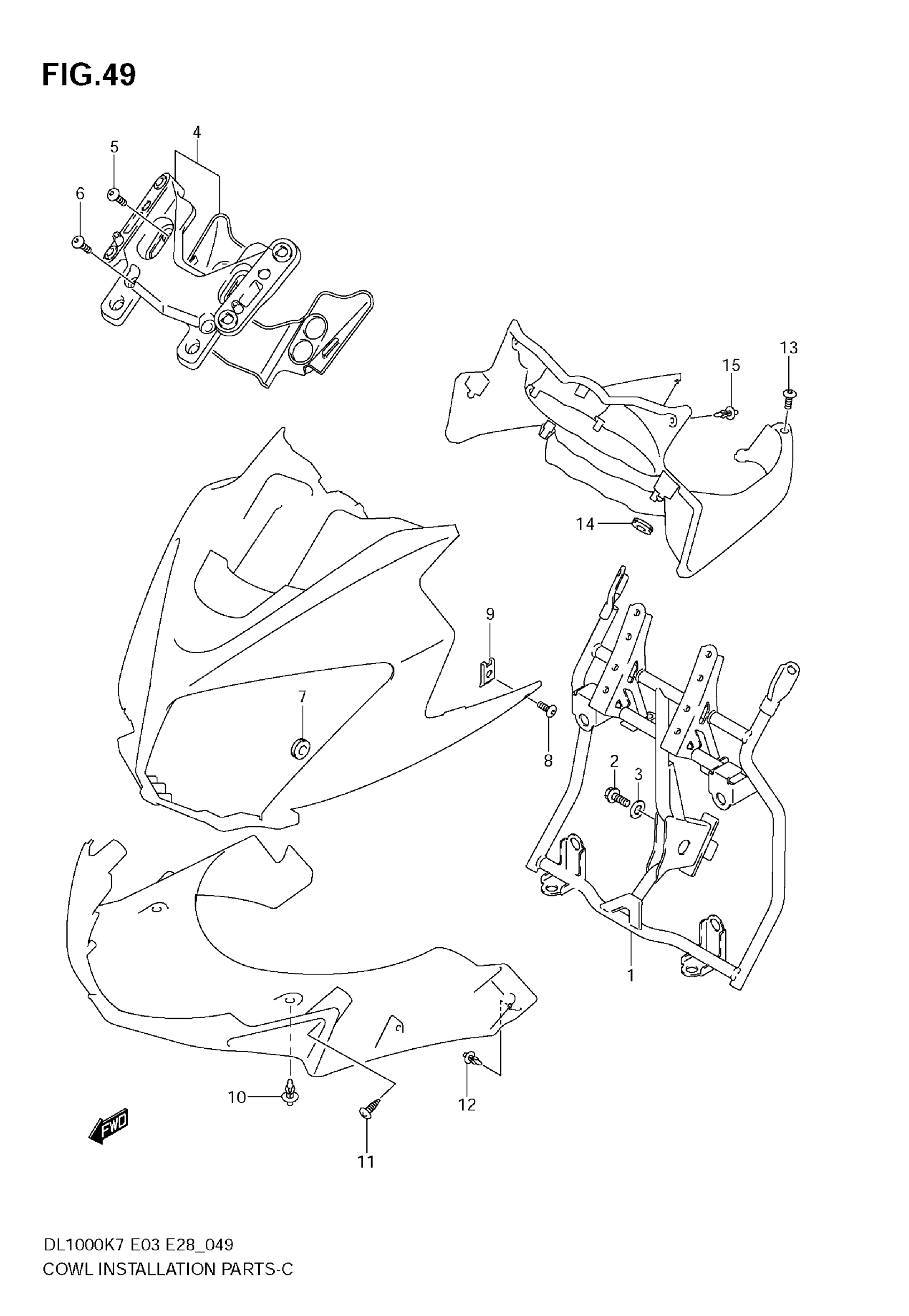

Suzuki DL1000 (2009) COWL BODY INSTALLATION PARTS Diagram

Description

Price

BRACE, COWLING

94510-27G01

$399.87

BOLT | MODEL K7

09103-08505

$3.58

BOLT | MODEL K8/K9

01550-0820B

$2.83

WASHER | MODEL K7

09164-08020

$2.06

BRACE, WINDSCREEN

94600-27G00

$96.02

SCREW, UPPER

09139-06126

$4.04

SCREW, LOWER

09139-06120

$2.83

CUSHION

09320-08028

$3.04

SCREW, SIDE

09139-05064

$2.57

NUT, SIDE

09148-05038

$1.97

CLIP, INNER COVER UPPER

09409-07333

$2.31

SCREW, INNER COVER

03241-0516B

$1.74

CLIP, SIDE (BLACK)

09409-06314-5PK

$2.78

SCREW, METER PANEL REAR SIDE

09139-06122

$3.04

CUSHION (6.5X14X6) This part replaces 09320-06016.

09320-06027

$2.10

CLIP, METER PANEL (BLACK)

09409-06314-5PK

$2.78
