Description

Price

1

CYLINDER ASSY,C | Includes Item(s) 2 - 12 This part replaces 59800-32F00.

59800-32F02

$368.18

2

PISTON & CUP SET

59800-08810

$37.77

3

BOOT

59666-44300

$5.54

4

PUSH ROD This part replaces 59871-38A00.

59871-32F00

$5.74

5

BUSH

59892-08A00

$4.84

6

DIAPHRAGM

59667-49460

$9.36

7

PLATE, DIAPHRAGM

59668-41C00

$8.92

8

CAP

59669-10G00

$43.22

9

SCREW

69689-49300

$1.81

10

PROTECTOR

59664-32F00

$13.20

11

HOLDER

59671-32F00

$18.68

12

BOLT (6X22)

59675-02FA0

$3.66

13

BOLT (10X1.25X22)

09360-10062

$5.99

14

WASHER (10X15X1.5)

09161-10009

$1.89

15

HOSE,CLUTCH This part replaces 59910-06G01.

59910-06G02

$200.50

16

CLAMP, CLUTCH HOSE, NO.1

59915-24F00

$12.83

17

CLAMP, CLUTCH HOSE, NO.2

59921-06G00

Unavailable

18

BOLT

01550-0612B

$2.44

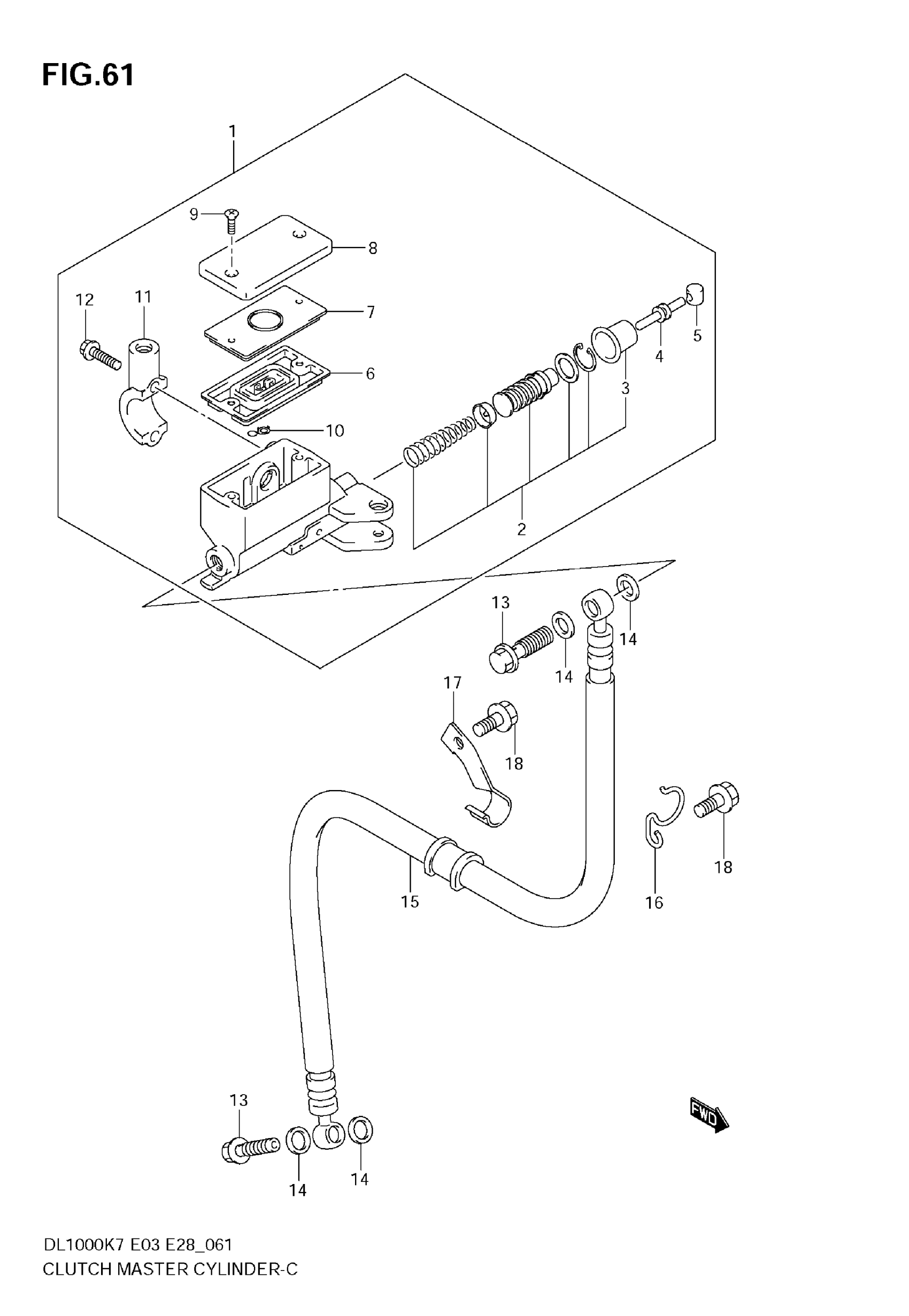

Suzuki DL1000 (2009) CLUTCH MASTER CYLINDER Diagram
