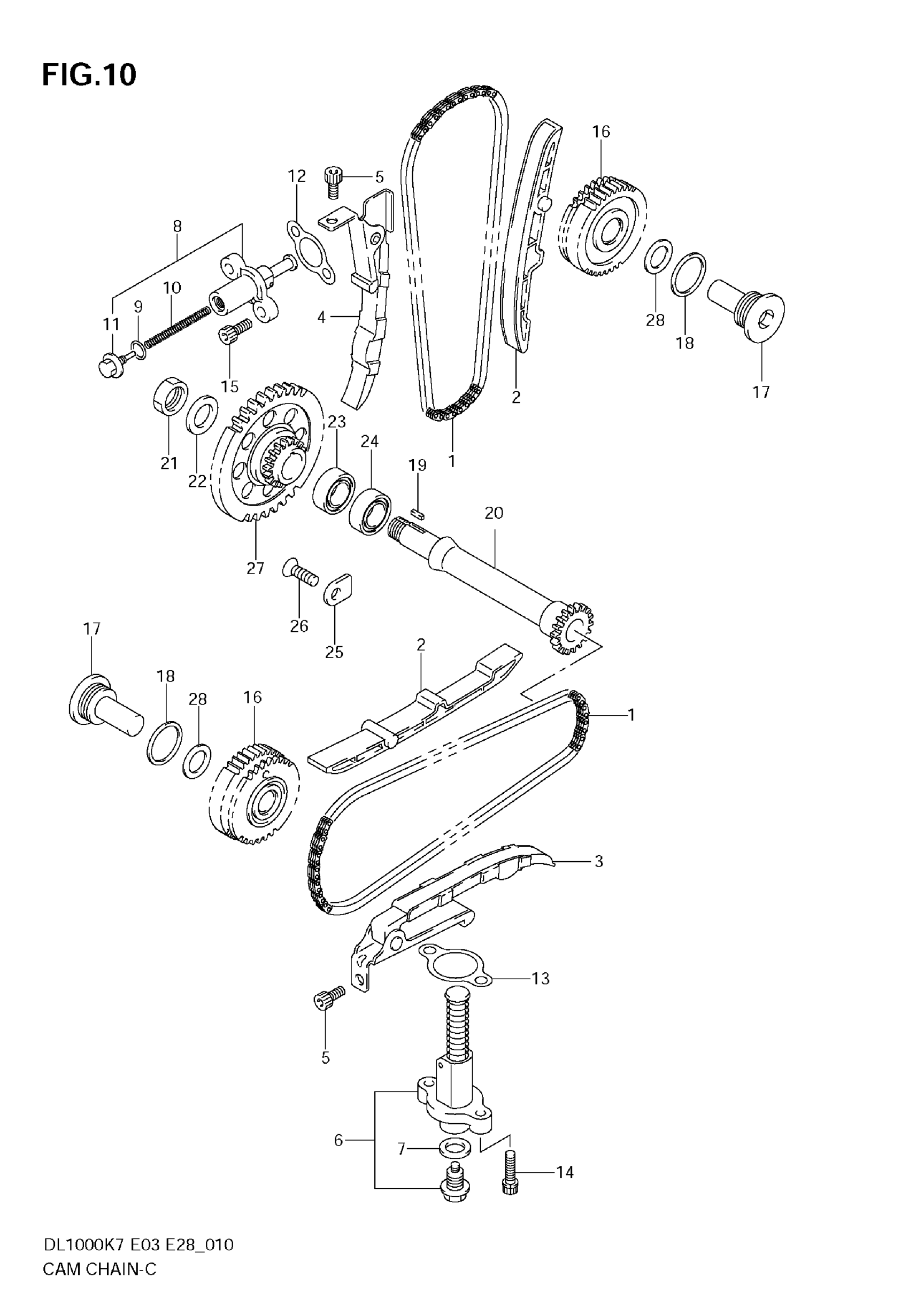

Suzuki DL1000 (2009) CAM CHAIN Diagram

#

Description
Price

1

CHAIN, CAM SHAFT DRIVE

12760-23F00

$82.87

2

GUIDE,CAM CHAIN

12771-06G00

$34.15

3

TENSIONER,CAM CHAIN FR

12810-06G00

$96.22

4

TENSIONER,CAM CHAIN,REAR

12815-06G00

$96.22

5

BOLT

07120-0612B

$3.04

6

ADJUSTER ASSY, FRONT TENSIONER | Includes Item(s) 7

12832-05A10

$167.15

7

GASKET

09168-12018

$3.08

8

ADJUSTER ASSY,TENSIONER | Includes Item(s) 9 - 11

12830-30A01

$121.77

9

O RING

12832-02A00

$2.82

10

SPRING

12833-30A01

Unavailable

11

PLUG

12834-02A00

Unavailable

12

.GASKET,TENSIONER ADJUSTER

12837-19B10

$2.73

13

.GASKET,TENSIONER ADJUSTER

12837-24A10

$3.25

14

BOLT

07130-0625B

$3.04

15

BOLT

07130-0620B

$3.05

16

GEAR, CAM CHAIN IDLER NO.2

12750-06G00

Unavailable

17

SHAFT, IDLER NO.2

12755-02F01

$52.73

18

GASKET

09168-26001

$5.00

19

KEY

09421-04004

$3.99

20

SHAFT,IDLER

12716-06G00

$147.77

21

NUT This part replaces 09140-16001.

09140-16005

$3.75

22

WASHER

09181-16212

Unavailable

23

BEARING, RH

08112-63030

Unavailable

24

BEARING, LH

09262-25006

$25.54

25

RETAINER

24741-20A00

$2.81

26

SCREW

09126-06011

$2.03

27

SPROCKET, IDLER NO.1

12731-06G01

Unavailable

28

SHIM, CAM CHAIN IDLER, T:0.9

09181-15164

$3.03

28

SHIM, CAM CHAIN IDLER, T:1.0

09181-15166

$2.85

28

SHIM, CAM CHAIN IDLER, T:1.1

09181-15172

$3.08

28

SHIM, CAM CHAIN IDLER, T:1.2

09181-15176

$3.03

28

SHIM, CAM CHAIN IDLER, T:1.3

09181-15181

$3.03

28

SHIM, CAM CHAIN IDLER, T:1.4

09181-15182

$3.03
