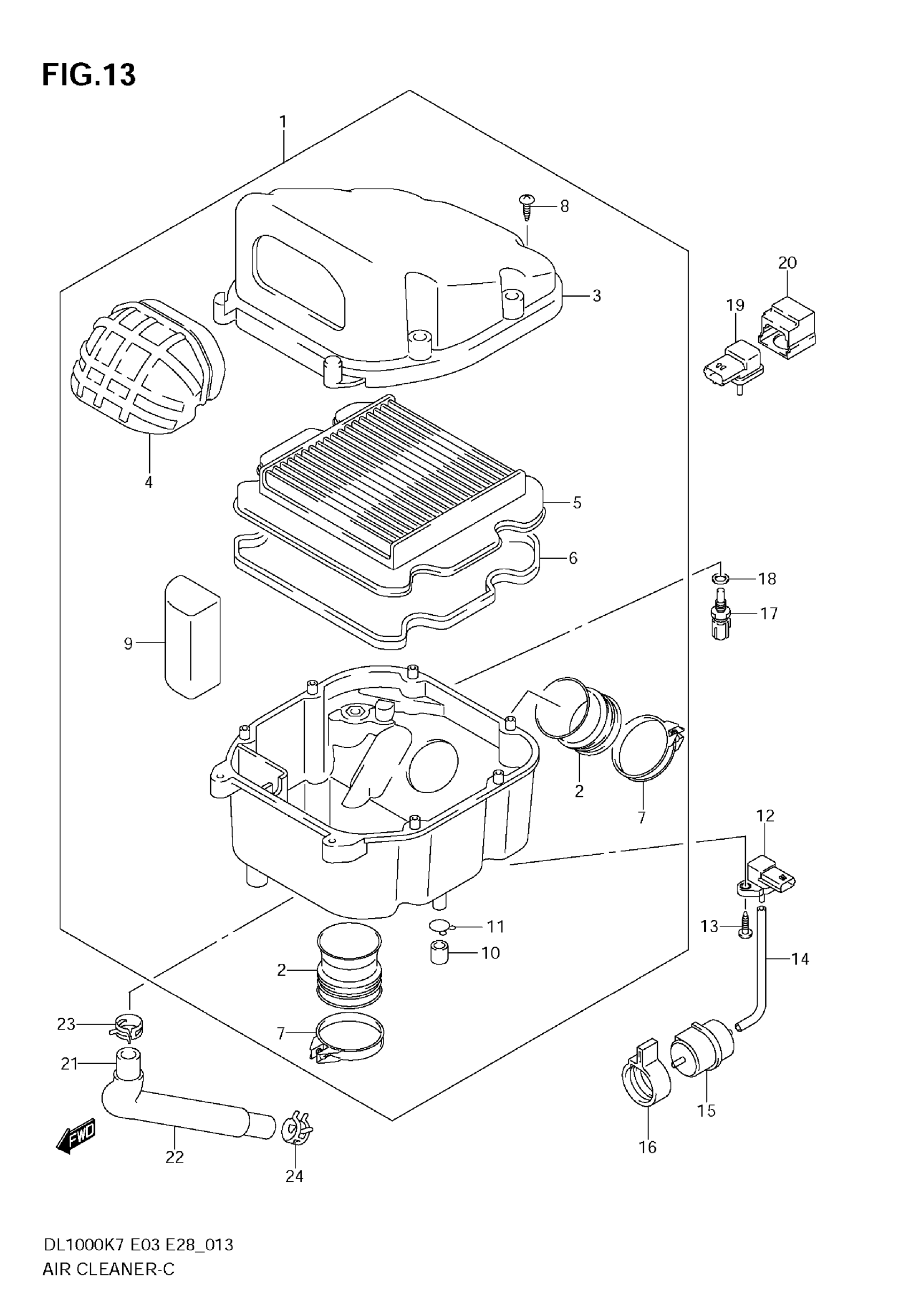

Suzuki DL1000 (2009) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR | Includes Item(s) 2 - 11

13700-06G00

Unavailable

2

TUBE,OUTLET This part replaces 13881-06G00.

13881-06G01

$14.02

3

CAP, AIR CLEANER

13741-06G00

Unavailable

4

TUBE, INLET

13891-06G00

$50.97

5

FILTER, AIR CLEANER

13780-06G00

$42.57

6

..GASKET, AIR CLEANER

13746-06G00

$16.58

7

.CLAMP, OUTLET TUBE This part replaces 13170-06G00.

13827-31J00

$16.03

8

SCREW

03141-0516B

$1.93

9

FILTER,BREATHER This part replaces 13788-06G00.

13788-06G01

$11.91

10

.PLUG

13859-41B10

$7.38

11

CLIP

09401-14301

$2.35

12

SENSOR BOOST

18590-80C40

$368.13

13

SCREW

03541-0516B

$1.78

14

HOSE SET,2ND AIR VALVE VACUUM This part replaces 13697-17F00.

18700-13810

$8.05

15

CHAMBER, VACUUM

13715-06G00

Unavailable

16

BAND, VACUUM CHAMBER

13912-02FA0

Unavailable

17

SENSOR, AIR TEMP

13650-57F00

$121.55

18

GASKET, TEMP SENSOR

09168-12017

$1.95

19

SENSOR, PRESSURE

18591-42F00

$301.32

20

HOLDER, SENSOR

18595-42F00

Unavailable

21

TUBE, BREATHER

13851-06G00

$29.33

22

PROTECTOR, BREATHER TUBE

13858-06G00

Unavailable

23

CLIP

09401-22405

Unavailable

24

CLAMP

09402-28513

$6.88
