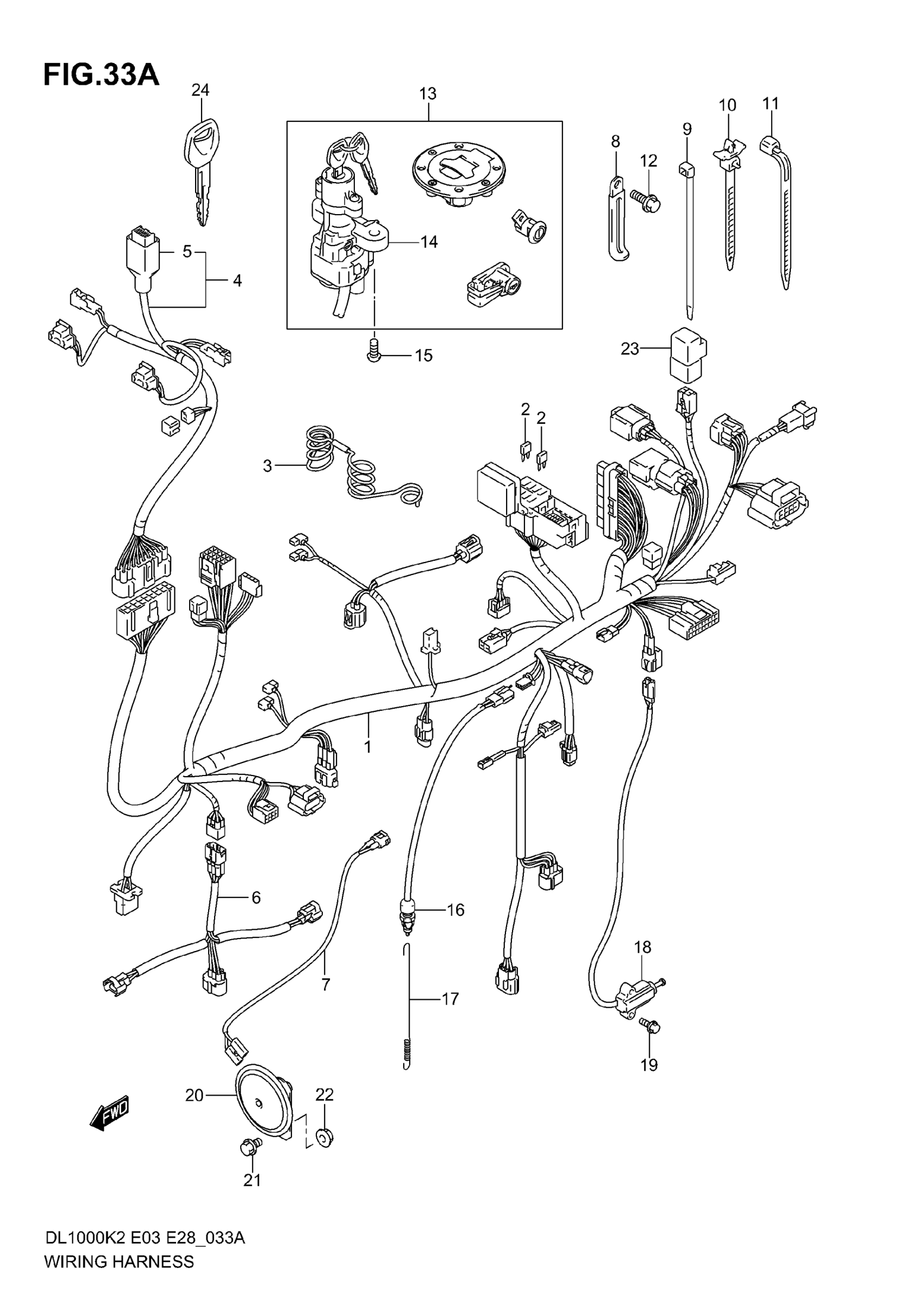

Suzuki DL1000 (2006) WIRING HARNESS (MODEL K4/K5/K6) Diagram

#

Description
Price

1

HARNESS, WIRING NO.1 | MODEL K4

36610-06G50

Unavailable

1

HARNESS, WIRING NO.1 | MODEL K5/K6; Includes Item(s) 2 - 2

36610-06G70

Unavailable

2

FUSE (10A)

09481-10501

$2.07

2

FUSE (15A)

09481-15501

$2.07

3

GUIDE, WIRING HARNESS

36619-06G01

$22.08

4

HARNESS, WIRING NO.2 | Includes Item(s) 5

36620-27G30

Unavailable

5

COVER, SPEEDOMETER

36618-18G10

Unavailable

6

WIRE, INJECTOR LEAD

36859-06G00

Unavailable

7

WIRE, HORN LEAD

36852-06G00

$19.68

8

CLAMP (L:45)

09404-06429

$1.82

8

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.76

9

CLAMP (L:145)

09407-14407

$2.80

10

CLAMP This part replaces 09407-17401.

09407-17402

$4.28

11

CLAMP (L:95)

09407-11401

$2.87

11

CLAMP (L:125)

09407-14403

$2.24

12

BOLT This part replaces 01547-06103.

01547-0610B

$2.47

13

LOCK SET This part replaces 37000-06860.

37000-06863

$491.88

13

LOCK SET | E33; Includes Item(s) 14

37000-06870

Unavailable

14

LOCK ASSY,STEER This part replaces 37100-06G00.

37100-06G01

$220.20

15

SCREW (8X20)

09139-08016

$3.04

16

SWITCH ASSY, STOP LAMP | MODEL K4

37740-31D00

$26.58

16

SWITCH ASSY, STOP LAMP | MODEL K5/K6

37740-45D00

$20.62

17

SPRING, STOP LAMP

43259-06G00

Unavailable

18

SWITCH ASSY,SIDE STAND This part replaces 37840-06G00.

37840-06G02

$68.13

19

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

20

HORN ASSY

38500-41F00

$98.98

21

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

$2.31

22

NUT This part replaces 08316-10083.

08316-1008B

$2.65

23

RELAY ASSY, FUEL PUMP

38740-24X50

$41.38

24

KEY, BLANK | OPT

37146-33E00

$19.42
