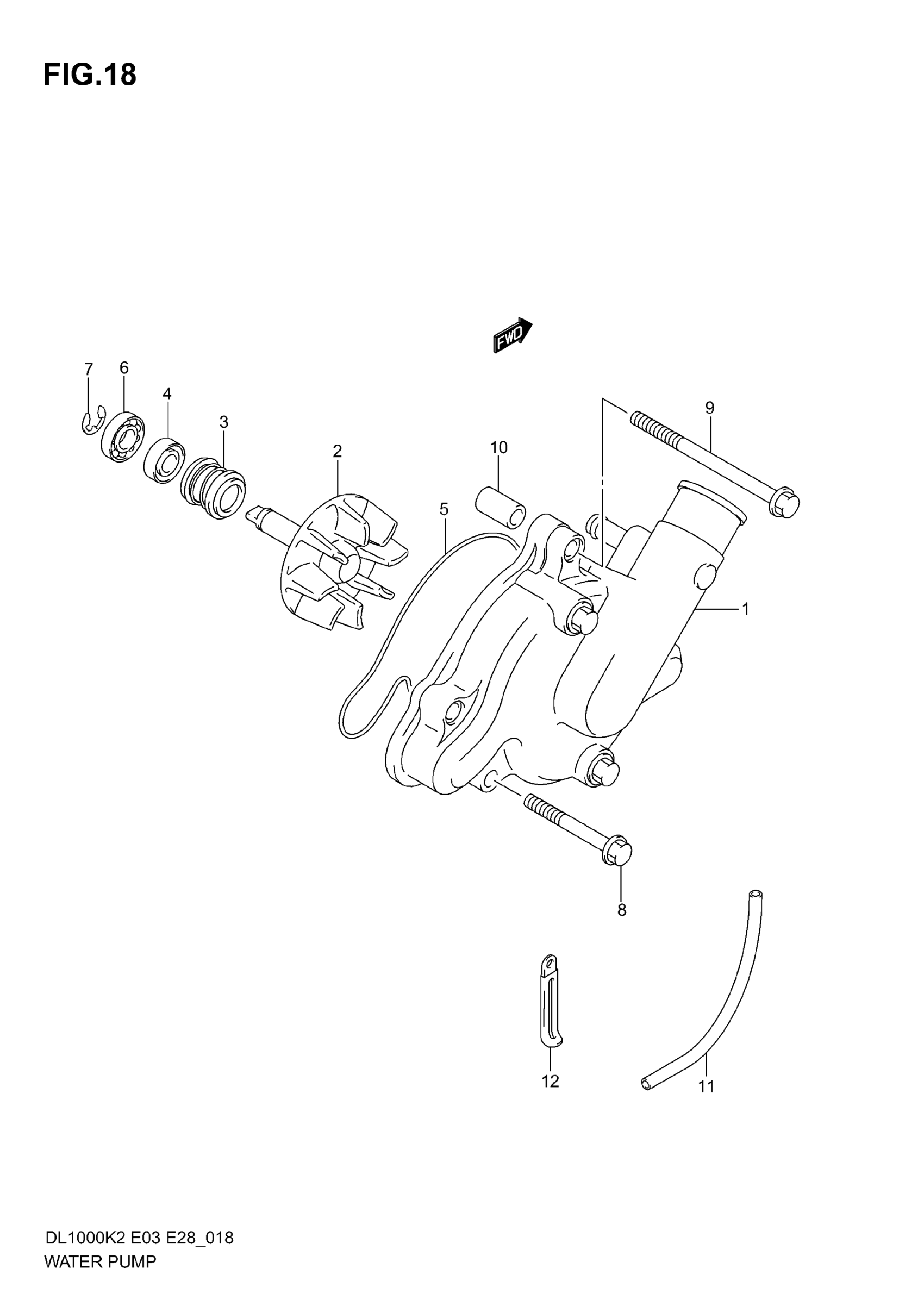

Suzuki DL1000 (2006) WATER PUMP Diagram

#

Description
Price

1

CASE, WATER PUMP | MODEL K2/K3 This part replaces 17410-02F20.

17410-02F41

$119.18

1

CASE, WATER PUMP | MODEL K4 This part replaces 17410-02F40.

17410-02F41

$119.18

1

CASE, WATER PUMP | MODEL K5/K6

17410-02F41

$119.18

2

IMPELLER | MODEL K2/K3

17491-06G00

$40.70

2

IMPELLER,WATER PUMP | MODEL K4/K5/K6

17491-16G00

$33.31

3

.SEAL,MECHANICAL This part replaces 17470-02F10.

17470-02F11

$29.22

4

OIL SEAL

09283-10005

$4.64

5

O RING

17435-02F00

$10.62

6

BEARING, WATER PUMP

09262-10016

$22.52

7

.E-RING This part replaces 08332-11086.

08332-1108A

$1.78

8

SCREW

09103-06213

$2.47

9

BOLT

09103-06239

$2.66

10

PIN

04211-09149

$1.65

11

HOSE(4.2X7X600) | MODEL K3/K4/K5/K6 L:600!220 This part replaces 09352-42703-600.

09352-42704-600

$6.52

12

CLAMP(L:80) | MODEL K3/K4/K5/K6 This part replaces 09404-06433.

09404-06036

$1.74
