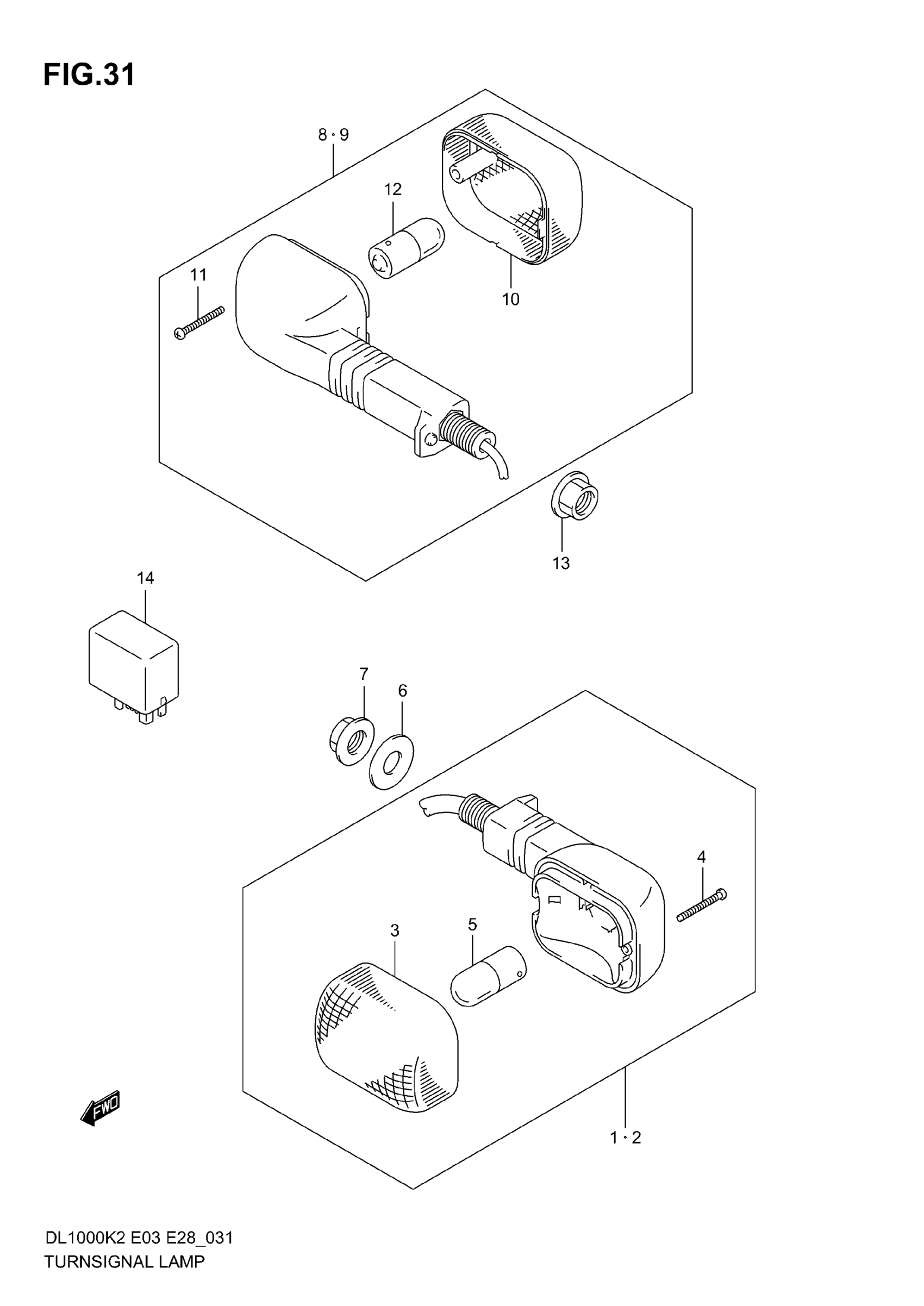

Suzuki DL1000 (2006) TURNSIGNAL LAMP (MODEL K2/K3) Diagram

#

Description

Price

1

LAMP ASSY, FRONT TURNSIGNAL RH

35601-06G30

$88.88

2

LAMP ASSY, FRONT TURNSIGNAL LH | Includes Item(s) 3 - 5

35602-06G30

$75.56

3

LENS

35612-06G00

$32.05

4

SCREW

35623-06G00

Unavailable

5

BULB (12V,10W)

09471-12177

$9.42

6

WASHER

09160-12092

$2.19

7

NUT This part replaces 08316-10123.

08316-1012A

$2.26

8

LAMP ASSY, REAR TURNSIGNAL RH

35601-06G00

$86.28

9

LAMP ASSY, REAR TURNSIGNAL LH | Includes Item(s) 10 - 12

35602-06G00

$86.28

10

LENS

35612-06G00

$32.05

11

SCREW

35623-06G00

Unavailable

12

BULB (12V,10W)

09471-12177

$9.42

13

NUT This part replaces 08316-10123.

08316-1012A

$2.26

14

RELAY ASSY,TURN This part replaces 38610-12FA0.

38610-12FA1

$105.10
