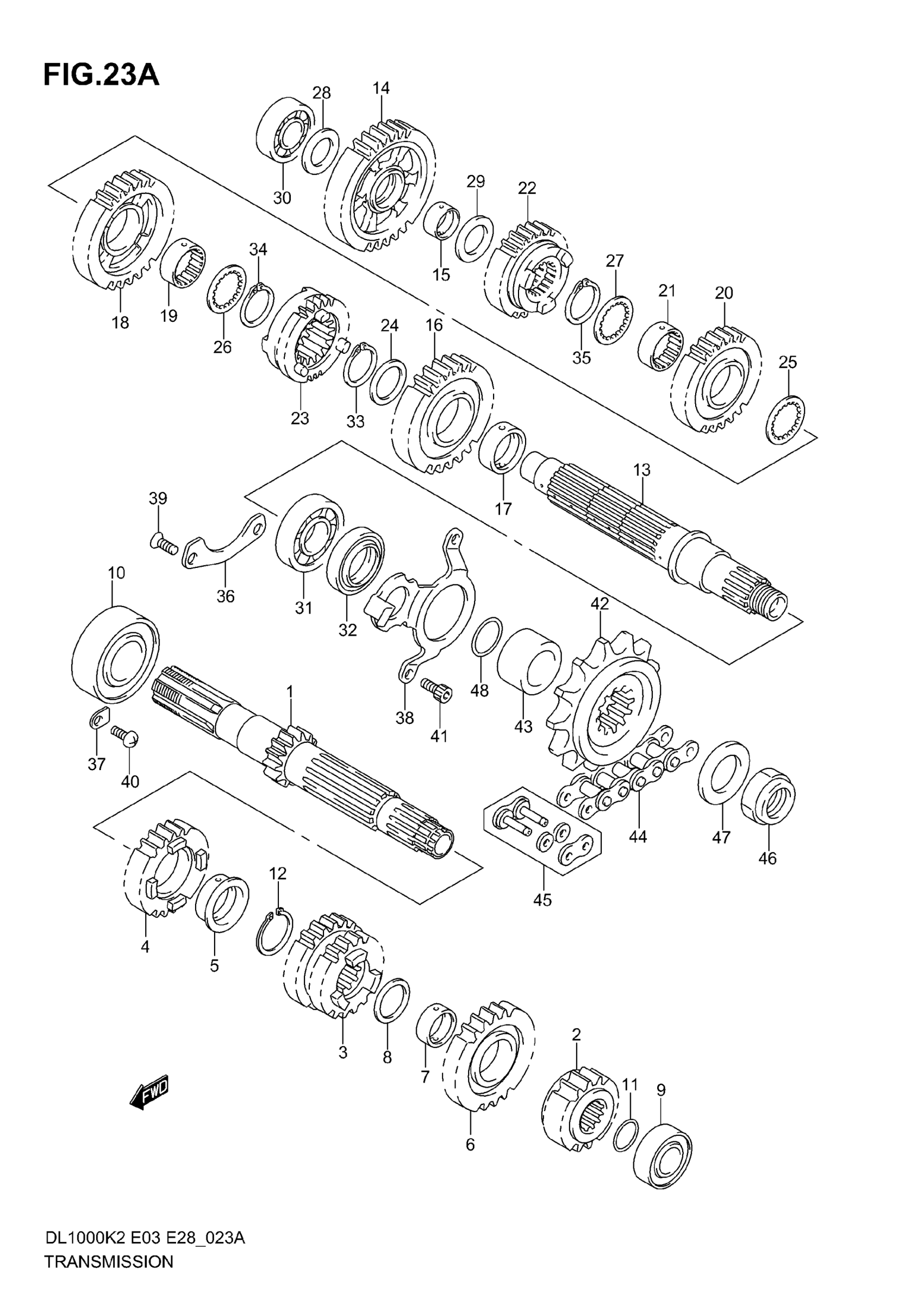

Suzuki DL1000 (2006) TRANSMISSION (MODEL K4/K5/K6) Diagram

#

Description
Price

1

SHAFT, COUNTER (NT:12)

24120-06G00

Unavailable

2

GEAR, 2ND DRIVE (NT:15)

24221-02F01

Unavailable

3

GEAR, 3RD & 4TH DRIVE | NT:18/27 This part replaces 24231-02F20.

24231-02F30

Unavailable

4

GEAR, 5TH DRIVE (NT:23)

24251-02F11

$184.63

5

BUSH, 5TH DRIVE GEAR

24252-02F10

$43.95

6

GEAR, 6TH DRIVE (NT:23)

24261-06G00

Unavailable

7

BUSH, 6TH DRIVE GEAR

24262-02F00

Unavailable

8

WASHER, 6TH DRIVE | 22X30X1.0

09181-22167

$2.80

9

BEARING, CENTER SHAFT LH | 20X47X14

09262-20139

$48.87

10

BEARING, CENTER SHAFT RH | 25X62X17

09262-25073

$23.39

11

O RING, CENTER SHAFT | D:1.9,ID:16.6

09280-17004

$3.98

12

CIRCLIP, 5TH DRIVE

09380-27001

$2.58

13

SHAFT, DRIVE

24130-02F10

Unavailable

14

GEAR, 1ST DRIVEN (NT:36)

24311-06G00

Unavailable

15

BUSH, 1ST DRIVEN

24312-02F00

$31.78

16

GEAR, 2ND DRIVEN (NT:29)

24321-02F11

Unavailable

17

BUSH, 2ND DRIVEN

24322-02F01

$24.28

18

GEAR, 3RD DRIVEN (NT:27)

24331-02F12

Unavailable

19

BUSH, 3RD DRIVEN GEAR

24332-17E20

$44.03

20

GEAR,4TH DRIVEN This part replaces 24341-02F20.

24341-02F30

$139.05

21

BUSH, 4TH DRIVEN GEAR

24332-17E20

$44.03

22

GEAR,5TH DRIVEN (NT:25) This part replaces 24351-02F13.

24351-02F20

$138.77

23

GEAR, 6TH DRIVEN (NT:21)

24361-06G00

Unavailable

24

WASHER, 2ND DRIVEN GEAR | 27X36X1

09160-27008

$4.00

25

WASHER, 3RD & 4TH DRIVEN | 27X36X2

09167-27002

Unavailable

26

WASHER, 3RD DRIVEN

24333-02F00

$6.62

27

WASHER, 4TH DRIVEN

24333-02F00

$6.62

28

WASHER, 1ST DRIVEN RH | 20X34X1

09181-20251

$2.77

29

WASHER, 1ST DRIVEN LH | 22X34X1

09181-22223

$2.85

30

BEARING, DRIVE SHAFT RH | 20X52X15

09262-20082

$33.28

31

BEARING, DRIVE SHAFT LH | 28X68X20

09262-28040

$123.15

32

SEAL, DRIVE SHAFT | 38X52X8

09283-38020

$26.16

33

CIRCLIP, 2ND DRIVEN

09380-27001

$2.58

34

CIRCLIP, 3RD DRIVEN

09380-27001

$2.58

35

CIRCLIP, 4TH DRIVEN

09380-27001

$2.58

36

RETAINER, DRIVE SHAFT

24741-06G00

$9.08

37

RETAINER, CENTER SHAFT

24741-21A00

$2.80

38

RETAINER, DRIVE SHAFT

24751-06G00

$11.57

39

SCREW, DRIVE SHAFT (6X12)

09126-06011

$2.01

40

SCREW This part replaces 02112-06123.

02112-0612A

$1.43

41

BOLT This part replaces 07130-06123.

07130-0612A

$2.50

42

SPROCKET,ENGINE This part replaces 27510-20A20.

27510-20A22

$89.07

43

SPACER, SPROCKET

27531-24B13

$40.38

44

CHAIN ASSY (RK 525SM8) This part replaces 27600-06G00-112.

27600-06G40-112

$242.55

45

JOINT SET, CHAIN | OPT

27620-06G00

$24.27

46

NUT

09159-20004

$14.15

47

WASHER (25X41X3)

09160-25009

$4.84

48

O RING (D:2.4,ID:23.7)

09280-24010

$5.09
