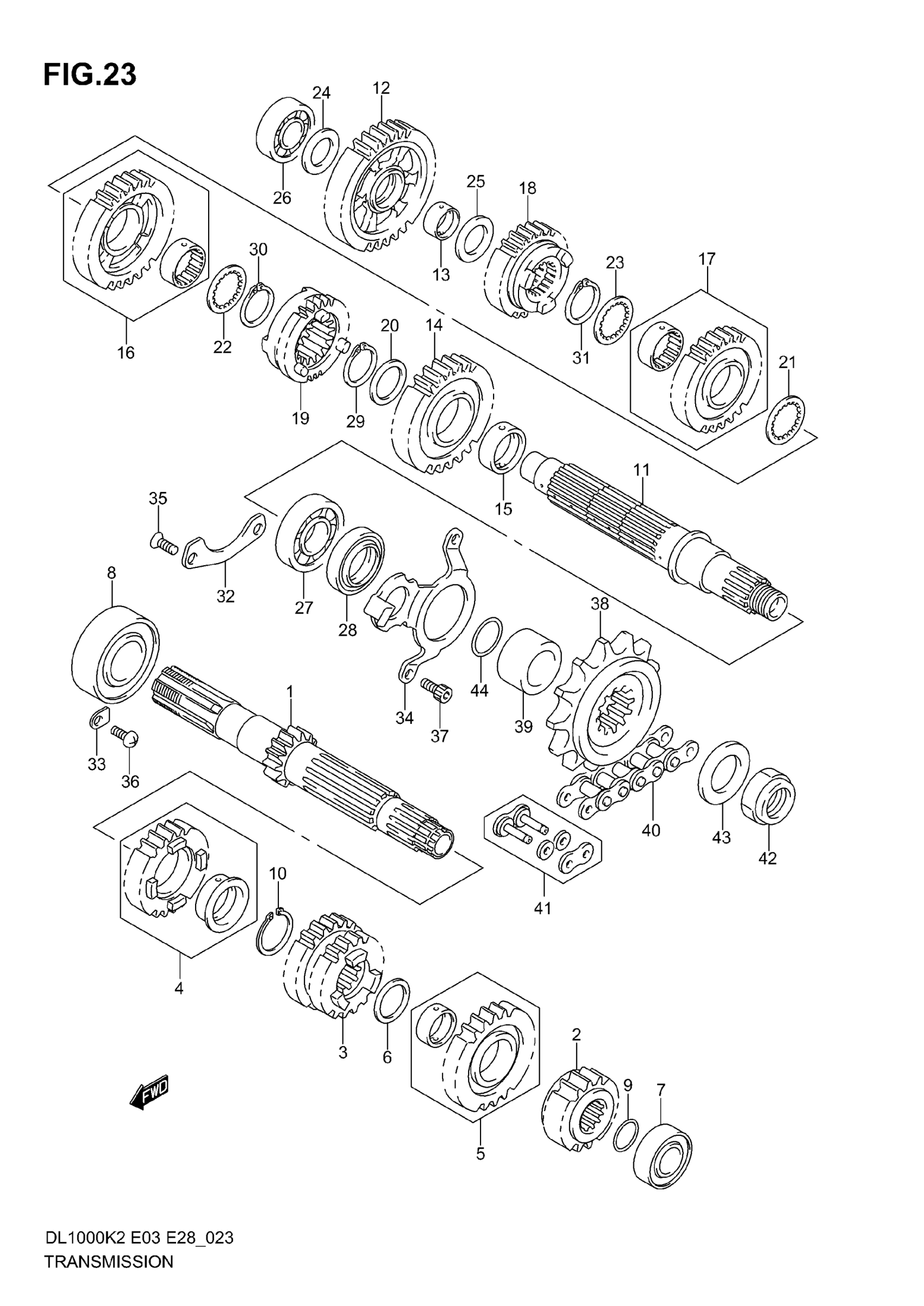

Suzuki DL1000 (2006) TRANSMISSION (MODEL K2/K3) Diagram

#

Description
Price

1

SHAFT, COUNTER (NT:12)

24120-06G00

Unavailable

2

GEAR, 2ND DRIVE (NT:15)

24221-02F01

Unavailable

3

GEAR, 3RD & 4TH DRIVE | NT:18/27

24231-02F13

Unavailable

4

NO DESCRIPTION AVAILABLE This part replaces 24251-02810.

24251-02811

Unavailable

5

GEAR SET, 6TH DRIVE (NT:23)

24261-02820

Unavailable

6

WASHER, 6TH DRIVE | 22X30X1.0

09181-22167

$2.96

7

BEARING, CENTER SHAFT LH | 20X47X14

09262-20139

$44.97

8

BEARING, CENTER SHAFT RH | 25X62X17

09262-25073

$25.92

9

O RING, CENTER SHAFT | D:1.9,ID:16.6

09280-17004

$3.67

10

CIRCLIP, 5TH DRIVE

09380-27001

$2.38

11

SHAFT, DRIVE

24130-02F10

Unavailable

12

GEAR, 1ST DRIVEN (NT:36)

24311-06G00

Unavailable

13

BUSH, 1ST DRIVEN

24312-02F00

$28.15

14

GEAR, 2ND DRIVEN (NT:29)

24321-02F11

Unavailable

15

BUSH, 2ND DRIVEN

24322-02F01

$21.52

16

NO DESCRIPTION AVAILABLE This part replaces 24331-02810.

24331-02811

Unavailable

17

GEAR SET,4TH DR This part replaces 24341-02810.

24341-02811

Unavailable

18

GEAR,5TH DRIVEN (NT:25) This part replaces 24351-02F13.

24351-02F20

$123.53

19

GEAR, 6TH DRIVEN (NT:21)

24361-06G00

Unavailable

20

WASHER, 2ND DRIVEN GEAR | 27X36X1

09160-27008

$3.68

21

WASHER, 3RD & 4TH DRIVEN | 27X36X2

09167-27002

Unavailable

22

WASHER, 3RD DRIVEN

24333-02F00

$4.99

23

WASHER, 4TH DRIVEN

24333-02F00

$4.99

24

WASHER, 1ST DRIVEN RH | 20X34X1

09181-20251

$2.79

25

WASHER, 1ST DRIVEN LH | 22X34X1

09181-22223

$3.12

26

BEARING, DRIVE SHAFT RH | 20X52X15

09262-20082

$30.63

27

BEARING, DRIVE SHAFT LH | 28X68X20

09262-28040

$113.32

28

SEAL, DRIVE SHAFT | 38X52X8

09283-38020

$29.00

29

CIRCLIP, 2ND DRIVEN

09380-27001

$2.38

30

CIRCLIP, 3RD DRIVEN

09380-27001

$2.38

31

CIRCLIP, 4TH DRIVEN

09380-27001

$2.38

32

RETAINER, DRIVE SHAFT

24741-06G00

$8.05

33

RETAINER, CENTER SHAFT

24741-21A00

$2.81

34

RETAINER, DRIVE SHAFT

24751-06G00

$12.28

35

SCREW, DRIVE SHAFT (6X12)

09126-06011

$2.03

36

SCREW This part replaces 02112-06123.

02112-0612A

$1.49

37

BOLT This part replaces 07130-06123.

07130-0612A

$2.50

38

SPROCKET,ENGINE This part replaces 27510-20A20.

27510-20A22

$78.92

39

SPACER, SPROCKET

27531-24B13

$35.78

40

CHAIN ASSY (RK 525SM8) This part replaces 27600-06G00-112.

27600-06G40-112

$220.08

41

JOINT SET, CHAIN | OPT

27620-06G00

$21.50

42

NUT

09159-20004

$15.67

43

WASHER (25X41X3)

09160-25009

$5.36

44

O RING (D:2.4,ID:23.7)

09280-24010

$5.64
