2006 Suzuki DL1000 Side Cowling Diagram

← All diagrams

Find the part on the Side Cowling diagram for your 2006 Suzuki DL1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

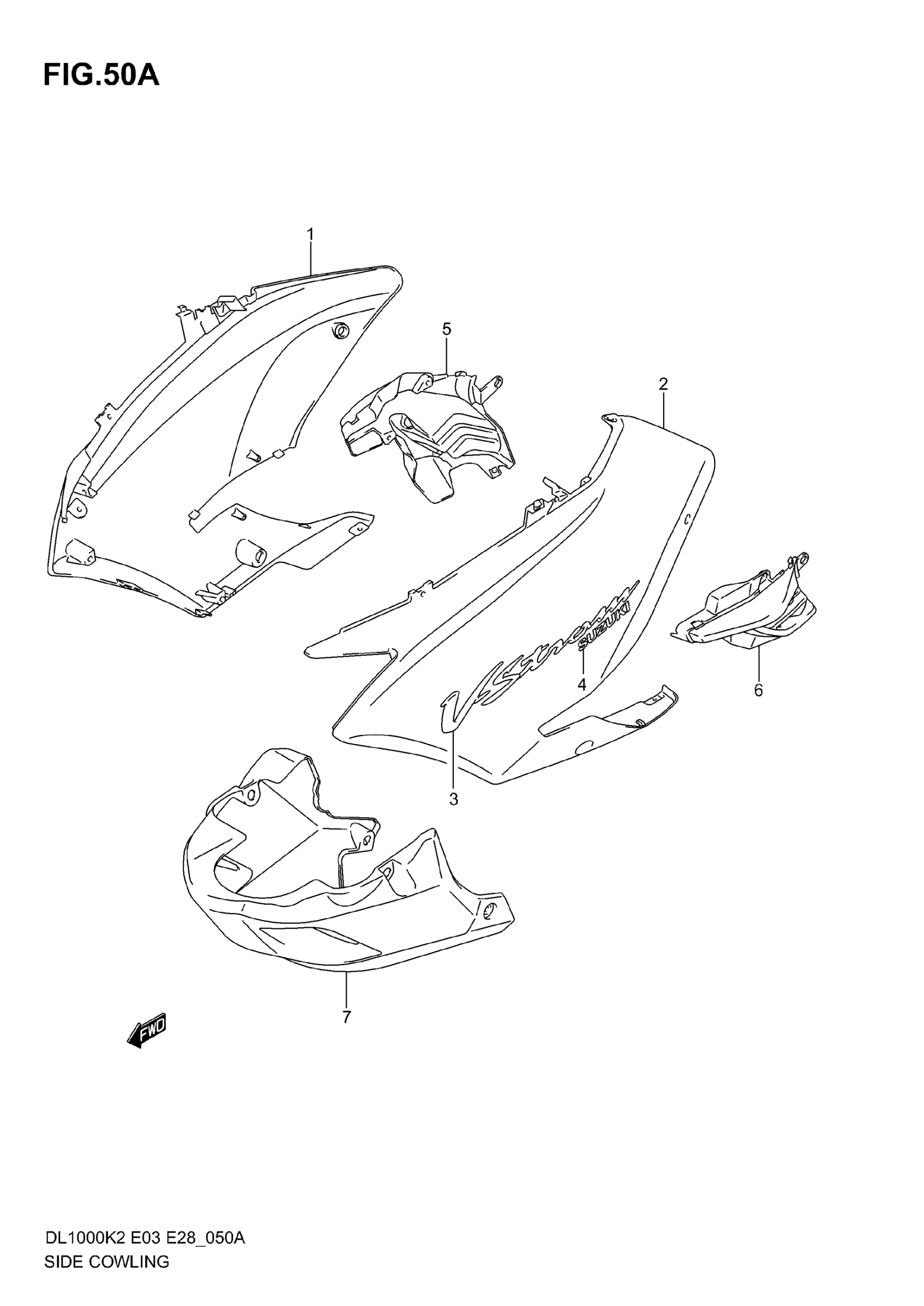

2006 Suzuki DL1000 Side Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COWL ASSY, SIDE RH (BLUE)

94402-06G00-YBA

—
Out of stock

1

COWL ASSY, SIDE RH (SILVER)

94402-06G10-YD8

1
Out of stock

1

COWL ASSY, SIDE RH (YELLOW)

94402-06G10-ZJX

1
Out of stock

2

COWL ASSY, SIDE LH (BLUE)

94403-06G00-YBA

—
Out of stock

2

COWL ASSY, SIDE LH (SILVER)

94403-06G10-YD8

1
Out of stock

2

COWL ASSY, SIDE LH (YELLOW) | Includes Item(s) 3 - 4

94403-06G10-ZJX

1
Out of stock

3

EMBLEM (BLUE) | FOR YD8

68681-06G00-Y7H

2
Out of stock

3

EMBLEM (SILVER) | FOR YBA

68681-06G00-YD8

2
Out of stock

3

EMBLEM (GRAY) | FOR ZJX

68681-06G00-17U

2
Out of stock

4

EMBLEM, "SUZUKI" (BLUE) | FOR ZJX

68166-31300-Y7H

2
Out of stock

4

EMBLEM, "SUZUKI" (GRAY) | FOR YBA

68166-31300-1ZY

2
Out of stock

4

EMBLEM,"SUZUKI" | FOR YD8 This part replaces 68166-31300-YU8.

68166-31310-YU8

2
Out of stock

5

COVER, SIDE RH (BLACK)

94440-06G00-YZ5

1
Out of stock

6

COVER, SIDE LH (BLACK)

94450-06G00-YZ5

1
Out of stock

7

COWLING, UNDER (BLACK)

94471-06G00-YZ5

1
Out of stock
