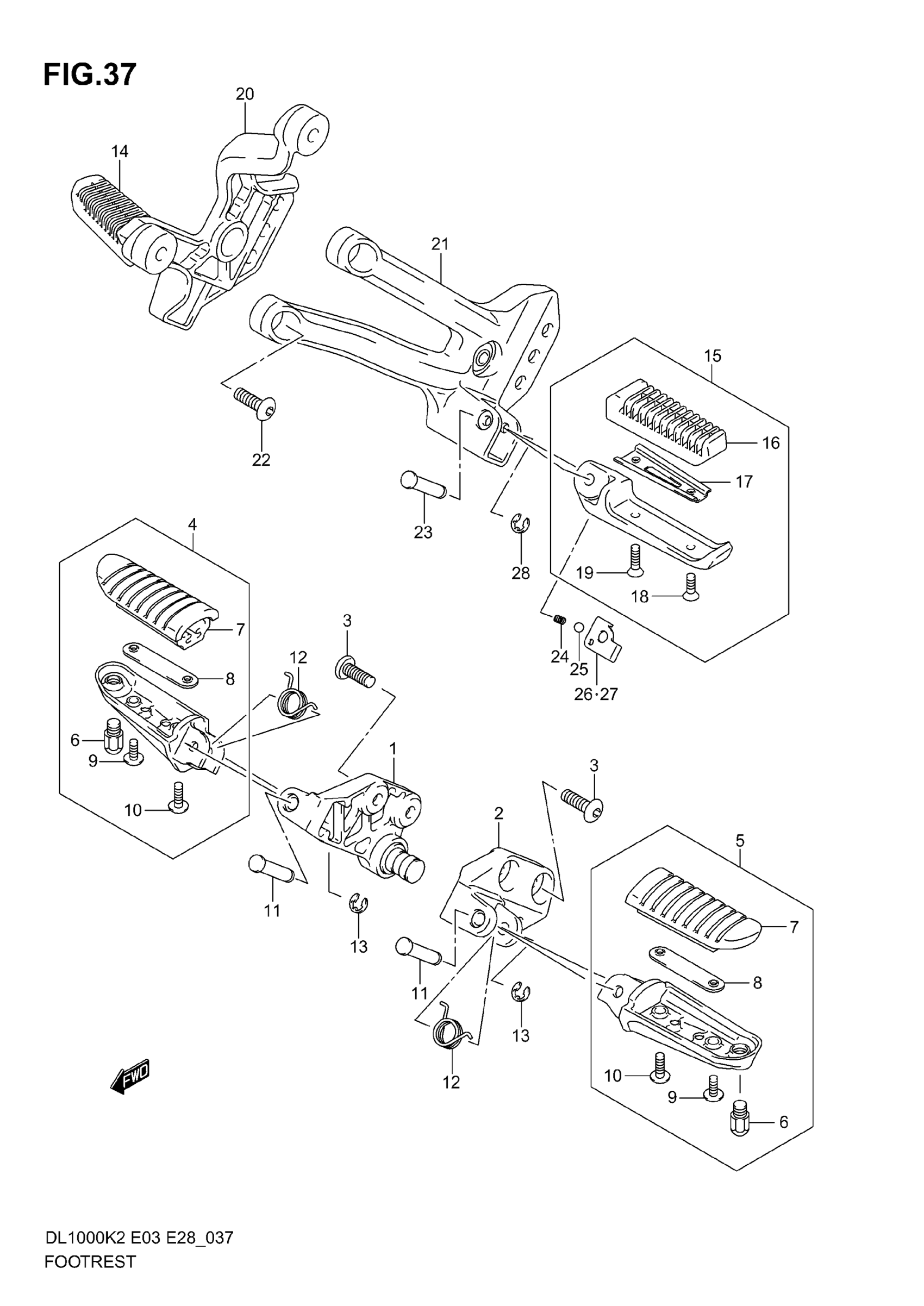

Suzuki DL1000 (2006) FOOTREST Diagram

#

Description
Price

1

BRACKET,FR FOOT | MODEL K2/K3/K4 This part replaces 43510-06G00.

43510-06G10-13L

Unavailable

1

BRACKET,FR FOOTREST RH (BLACK | MODEL K5/K6 This part replaces 43510-06G01-YAP.

43510-06G10-YAP

$89.14

2

BRACKET,FR FOOT | MODEL K2/K3/K4 This part replaces 43521-06G00.

43521-06G11-13L

$118.83

2

BRACKET,FR FOOTREST,L (BLACK) | MODEL K5/K6 This part replaces 43521-06G01-YAP.

43521-06G11-YAP

$44.94

3

BOLT

09106-08150

$3.13

4

FOOTREST ASSY RH | MODEL K2/K3 This part replaces 43501-06G00.

43501-06G01

$133.57

4

FOOTREST ASSY RH | MODEL K4/K5/K6

43501-06G01

$133.57

5

FOOTREST ASSY, LH | MODEL K2/K3 This part replaces 43502-06G00.

43502-06G01

$133.57

5

FOOTREST ASSY, LH | MODEL K4/K5/K6; Includes Item(s) 6 - 10

43502-06G01

$133.57

6

.BOLT,BANK SENSOR

43576-07D01

$8.10

7

RUBBER

43551-06G00

$13.21

8

PLATE

43552-06G00

$14.47

9

SCREW This part replaces 02142-05163.

02142-0516A

$1.43

10

SCREW, REAR This part replaces 02142-05203.

02142-0520B

$1.77

11

PIN

09208-08016

$3.32

12

SPRING

09448-18022

$3.42

13

CIRCLIP This part replaces 08332-11063.

08332-1106A

$1.43

14

FOOTREST ASSY, PILLION RH This part replaces 43600-42F00.

43600-42F10

$121.48

15

FOOTREST ASSY, PILLION LH | Includes Item(s) 16 - 19 This part replaces 43700-42F00.

43700-42F10

$121.48

16

RUBBER

43612-31300

$14.73

17

PLATE, STOP

43632-45501

Unavailable

18

SCREW This part replaces 02122-05123.

02122-0512A

$1.88

19

SCREW This part replaces 02122-05163.

02122-0516B

Unavailable

20

BRACKET,PILLION | MODEL K2/K3/K4 This part replaces 43811-06G00.

43811-06G01-13L

Unavailable

20

BRACKET, PILLION RH (BLACK) | MODEL K5/K6

43811-06G01-YAP

$191.28

21

BRACKET,PILLION | MODEL K2/K3/K4 This part replaces 43821-06G00.

43821-06G01-13L

Unavailable

21

BRACKET, PILLION LH (BLACK) | MODEL K5/K6

43821-06G01-YAP

$191.28

22

BOLT, BRACKET

09106-08150

$3.13

23

PIN

09208-08010

$2.80

24

SPRING

09440-05005

$1.45

25

BALL

06111-07004

$1.22

26

PLATE, FOOTREST RH

43816-42F10

$8.52

27

PLATE, FOOTREST LH

43826-42F10

$6.04

28

CIRCLIP This part replaces 08332-11063.

08332-1106A

$1.43
