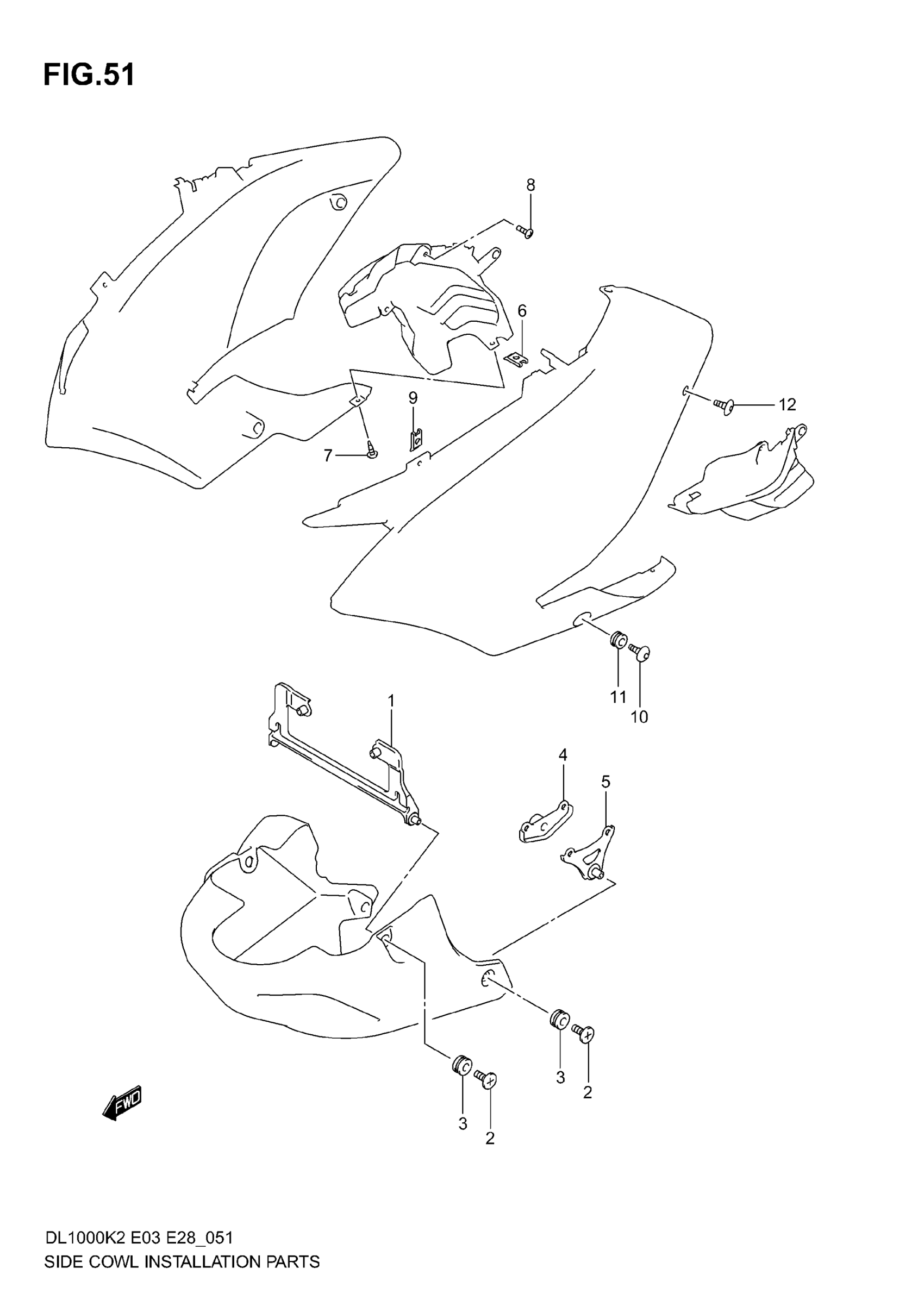

Suzuki DL1000 (2006) SIDE COWL INSTALLATION PARTS Diagram

#

Description
Price

1

BRACKET, UNDER FRONT

94520-06G00

$60.02

2

SCREW

11178-12F10

$5.56

3

CUSHION

09320-09016

$1.97

4

BRACKET, RH

94530-06G00

$13.35

5

BRACKET, LH

94540-06G00

$14.23

6

NUT

09148-05038

$1.97

7

SCREW, FRONT This part replaces 03242-05103.

03241-0510A

$1.49

8

SCREW This part replaces 02142-05103.

02142-0510B

$1.78

9

NUT COWL

94484-24F00

$4.03

10

SCREW This part replaces 09139-06087.

09139-06126

$4.04

11

CUSHION

09320-09016

$1.97

12

SCREW, SIDE REAR

09139-06122

$3.04
