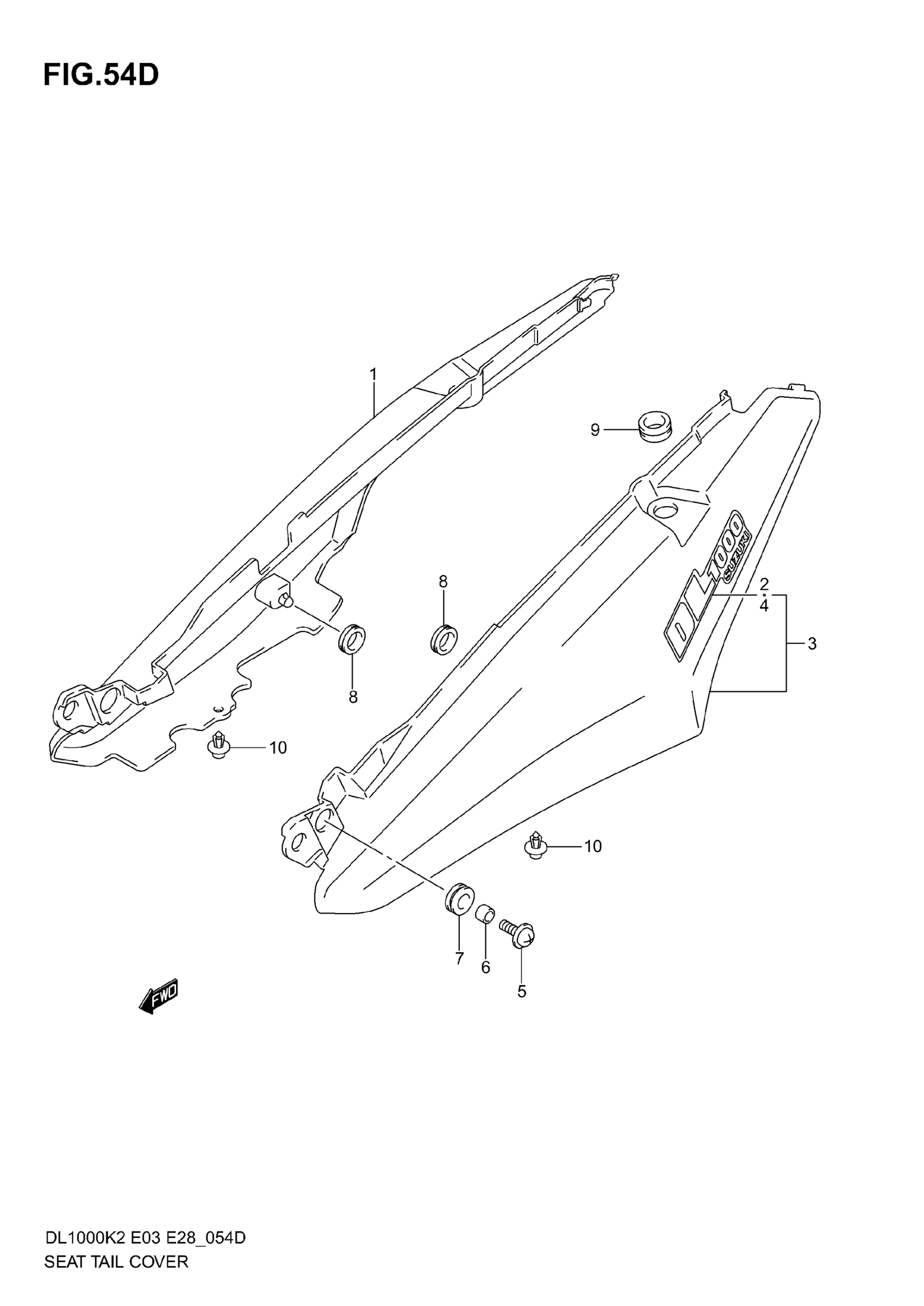

Suzuki DL1000 (2006) SEAT TAIL COVER (MODEL K6) Diagram

COVER ASSY, SEAT TAIL, R | Includes Item(s) 2

45501-06G10-4PX

Unavailable

EMBLEM, SEAT TAIL COVER

68161-06G10-CUL

Unavailable

COVER ASSY, SEAT TAIL, L | Includes Item(s) 4

45502-06G10-4PX

Unavailable

EMBLEM, SEAT TAIL COVER

68161-06G10-CUL

Unavailable

SCREW, FRONT

09136-06081

$2.28

SPACER, FRONT

09180-06300

$3.52

CUSHION, FRONT

09320-12068

$3.25

CUSHION, CENTER

09320-08018

$2.80

CUSHION, REAR

09320-15008

$3.56

CLIP (BLACK)

09409-06314-5PK

$2.80
