Partiron

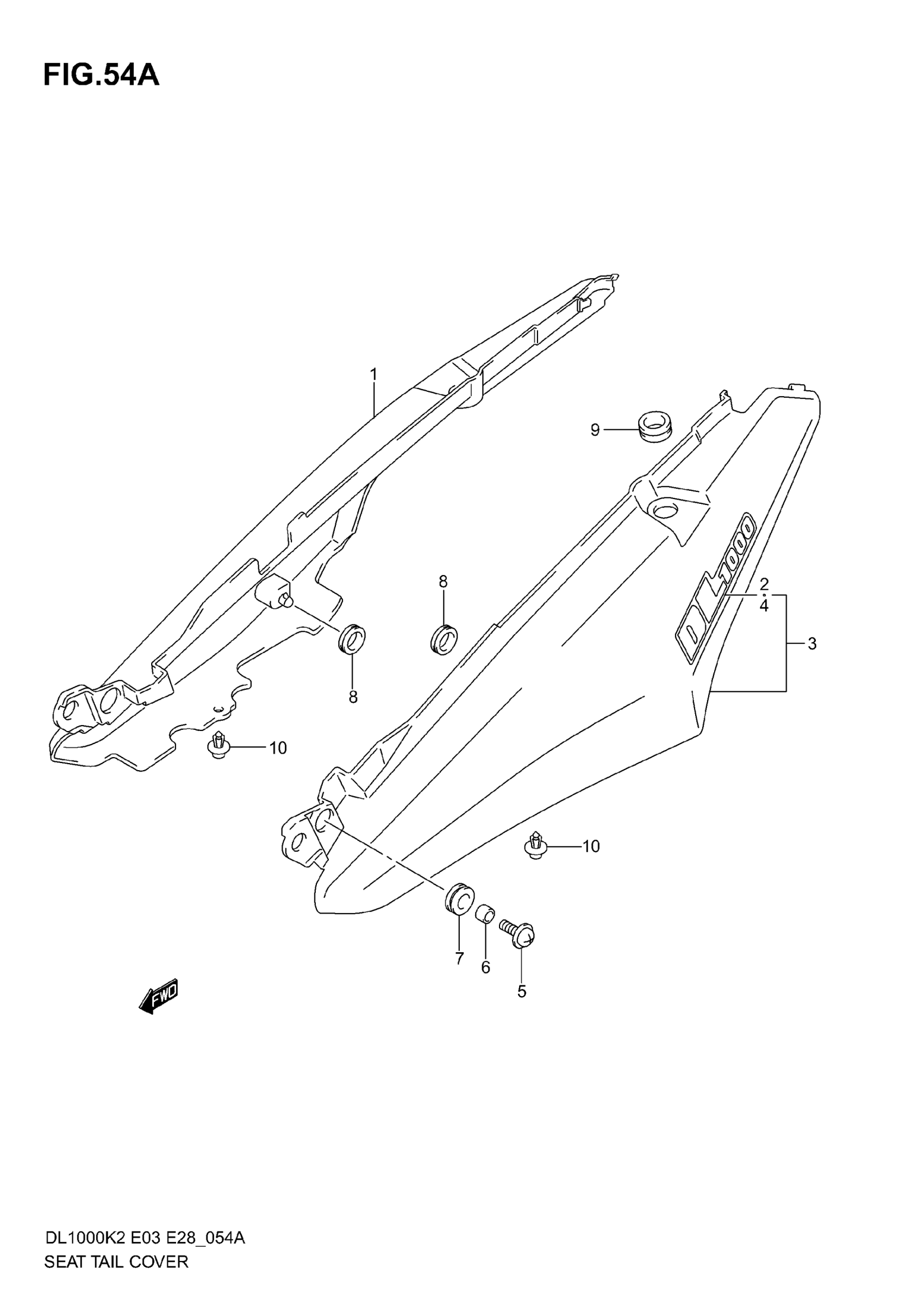

Suzuki DL1000 (2006) SEAT TAIL COVER (MODEL K3) Diagram

#

Description
Price

1

COVER ASSY, SEAT TAIL, R (SILVER)

45501-06G00-YD8

Unavailable

1

COVER ASSY, SEAT TAIL, R (YELLOW)

45501-06G00-ZJX

Unavailable

1

COVER ASSY, SEAT TAIL, R (BLUE) | Includes Item(s) 2 - 2

45501-06G00-YBA

Unavailable

2

EMBLEM, SEAT TAIL COVER | FOR YD8

68161-06G00-LY4

Unavailable

2

EMBLEM, SEAT TAIL COVER | FOR YU9

68161-06G00-LY5

Unavailable

2

EMBLEM, SEAT TAIL COVER | FOR YBA

68161-06G00-LY6

Unavailable

3

COVER ASSY, SEAT TAIL, L (SILVER)

45502-06G00-YD8

Unavailable

3

COVER ASSY, SEAT TAIL, L (YELLOW)

45502-06G00-ZJX

Unavailable

3

COVER ASSY, SEAT TAIL, L (BLUE) | Includes Item(s) 4 - 4

45502-06G00-YBA

Unavailable

4

EMBLEM, SEAT TAIL COVER | FOR YD8

68161-06G00-LY4

Unavailable

4

EMBLEM, SEAT TAIL COVER | FOR YU9

68161-06G00-LY5

Unavailable

4

EMBLEM, SEAT TAIL COVER | FOR YBA

68161-06G00-LY6

Unavailable

5

SCREW, FRONT

09136-06081

$2.26

6

SPACER, FRONT

09180-06300

$3.85

7

CUSHION, FRONT

09320-12068

$3.55

8

CUSHION, CENTER

09320-08018

$3.04

9

CUSHION, REAR

09320-15008

$3.89

10

CLIP (BLACK)

09409-06314-5PK

$2.78
