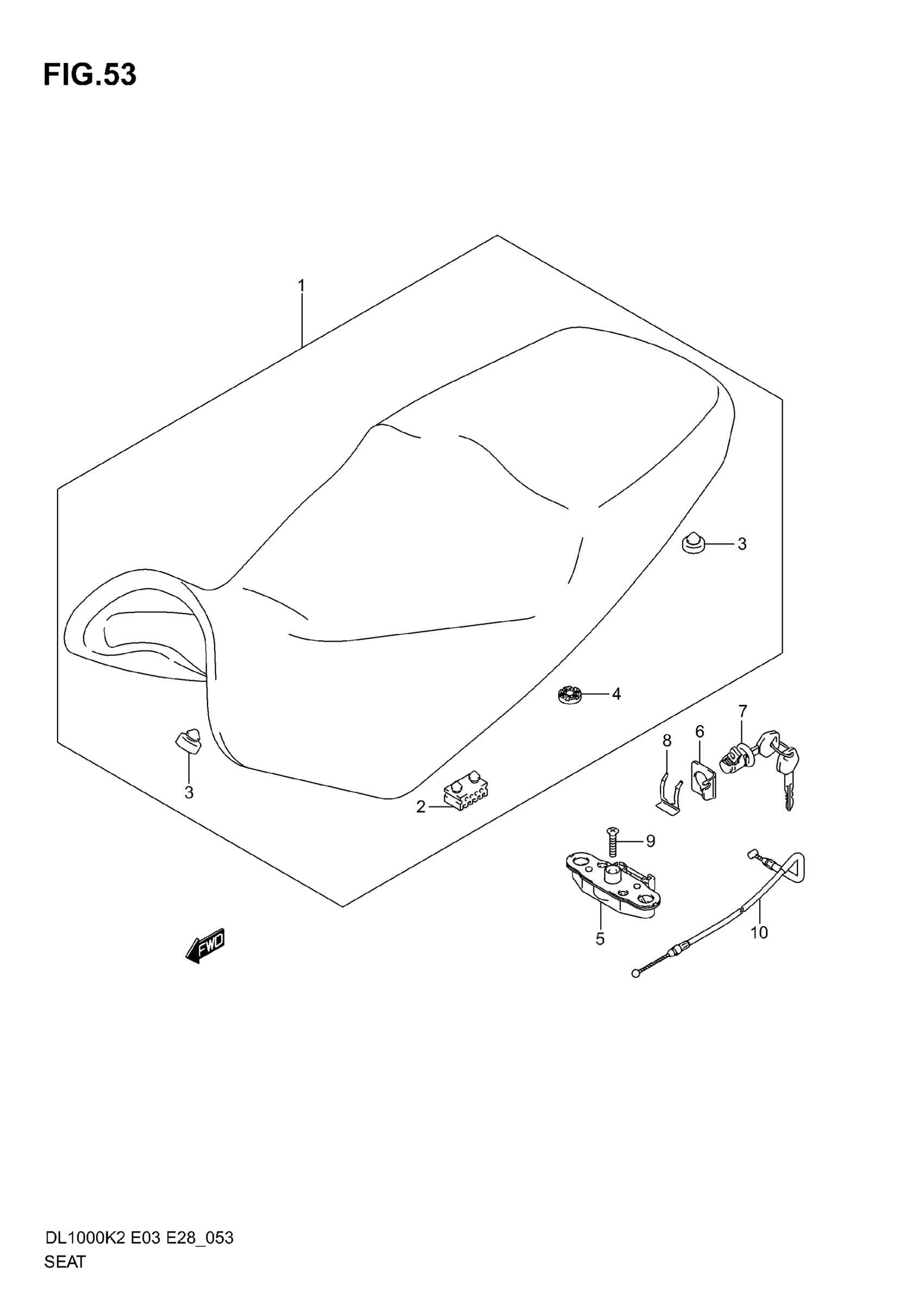

Suzuki DL1000 (2006) SEAT Diagram

SEAT ASSY | MODEL K2

45100-06G00-W69

Unavailable

SEAT ASSY | MODEL K3/K4/K5/K6; Includes Item(s) 2 - 4 This part replaces 45100-06G10-H1N.

45100-06G11-H1N

$433.73

CUSHION

09321-08006

$2.90

CUSHION

09321-10012

$2.92

CUSHION

45213-13601

$2.79

BRACKET, SEAT SUPPORT This part replaces 45220-20A01.

45220-47H00

$138.38

GUIDE, SEAT LOCK CABLE

45288-14F00

$5.36

LOCK SET, SEAT

95700-14810

$107.30

PLATE, SEAT LOCK ASSY

45289-11F00

$6.20

SCREW This part replaces 02122-06303.

02122-0630B

$2.06

CABLE, SEAT LOCK

45280-06G00

$29.43
