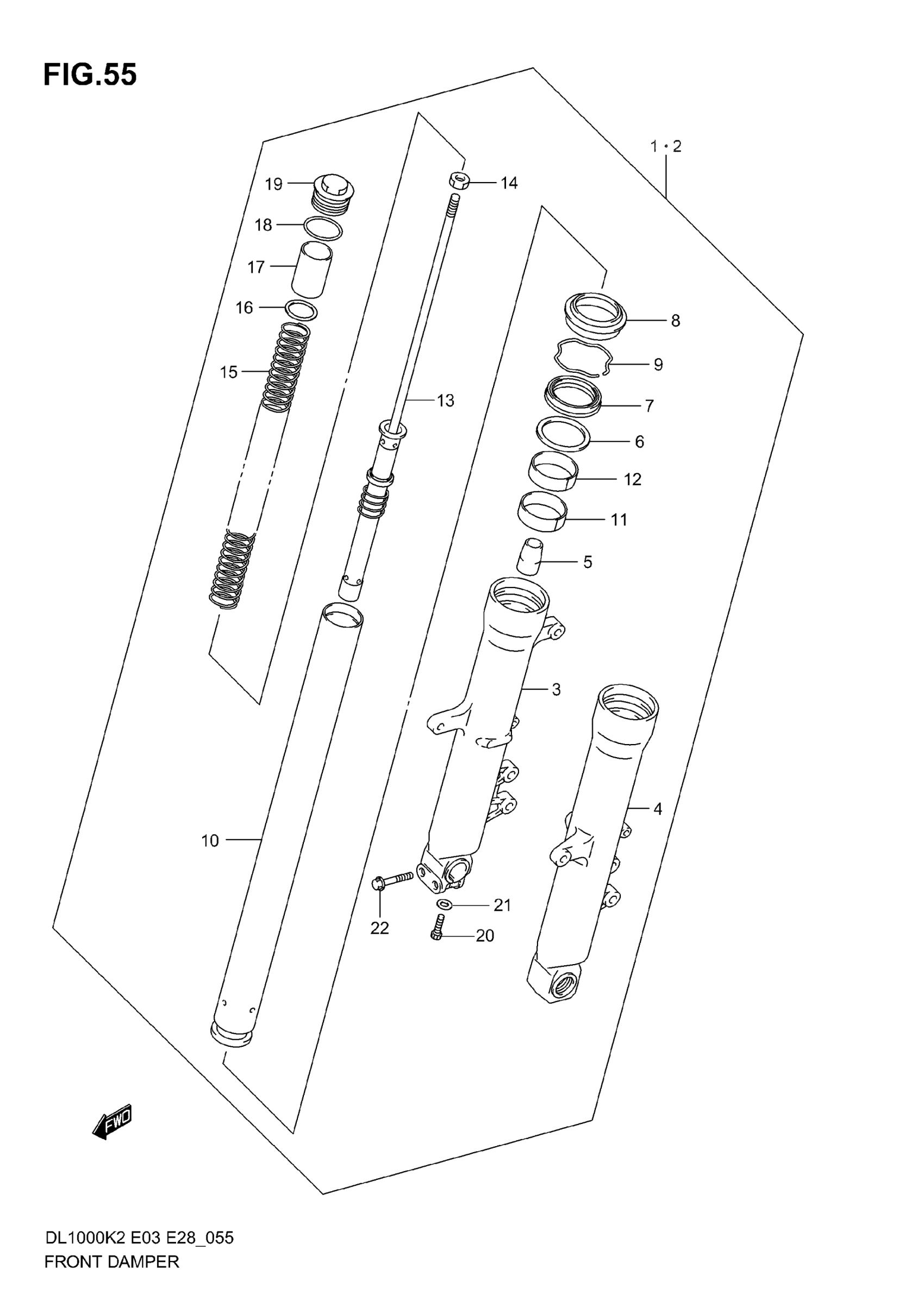

Suzuki DL1000 (2006) FRONT DAMPER (MODEL K2) Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-06G00

Unavailable

2

DAMPER ASSY, FRONT FORK LH | Includes Item(s) 3 - 22

51104-06G00

Unavailable

3

TUBE, OUTER RH

51130-06G00

Unavailable

4

TUBE, OUTER LH

51140-06G00

Unavailable

5

PIECE, OIL LOCK

51195-31E00

$30.22

6

.SPACER, SEAL

51168-17C00

$6.28

7

SEAL, OIL

51153-14D00

$22.96

8

SEAL, DUST

51173-29E00

$26.58

9

RING, OIL SEAL STOPPER

51556-38B00

$7.22

10

TUBE, INNER

51110-06G00

Unavailable

11

BUSH, SLIDE

51121-13E00

$18.28

12

BUSH, GUIDE

51152-13E00

$19.74

13

ROD, FRONT DAMPER

52110-06G00

Unavailable

14

.NUT

51827-27E00

Unavailable

15

SPRING, FRONT

51171-06G00

Unavailable

16

SEAT, SPRING

51186-17C00

$7.53

17

COLLAR, SPRING

51176-12C10

$13.92

18

O RING

51117-17C00

$5.95

19

BOLT, FORK

51351-14E30

Unavailable

20

BOLT

51147-48130

$4.34

21

GASKET

51148-36011

$3.56

22

BOLT, RH

51166-06G00

$8.18
