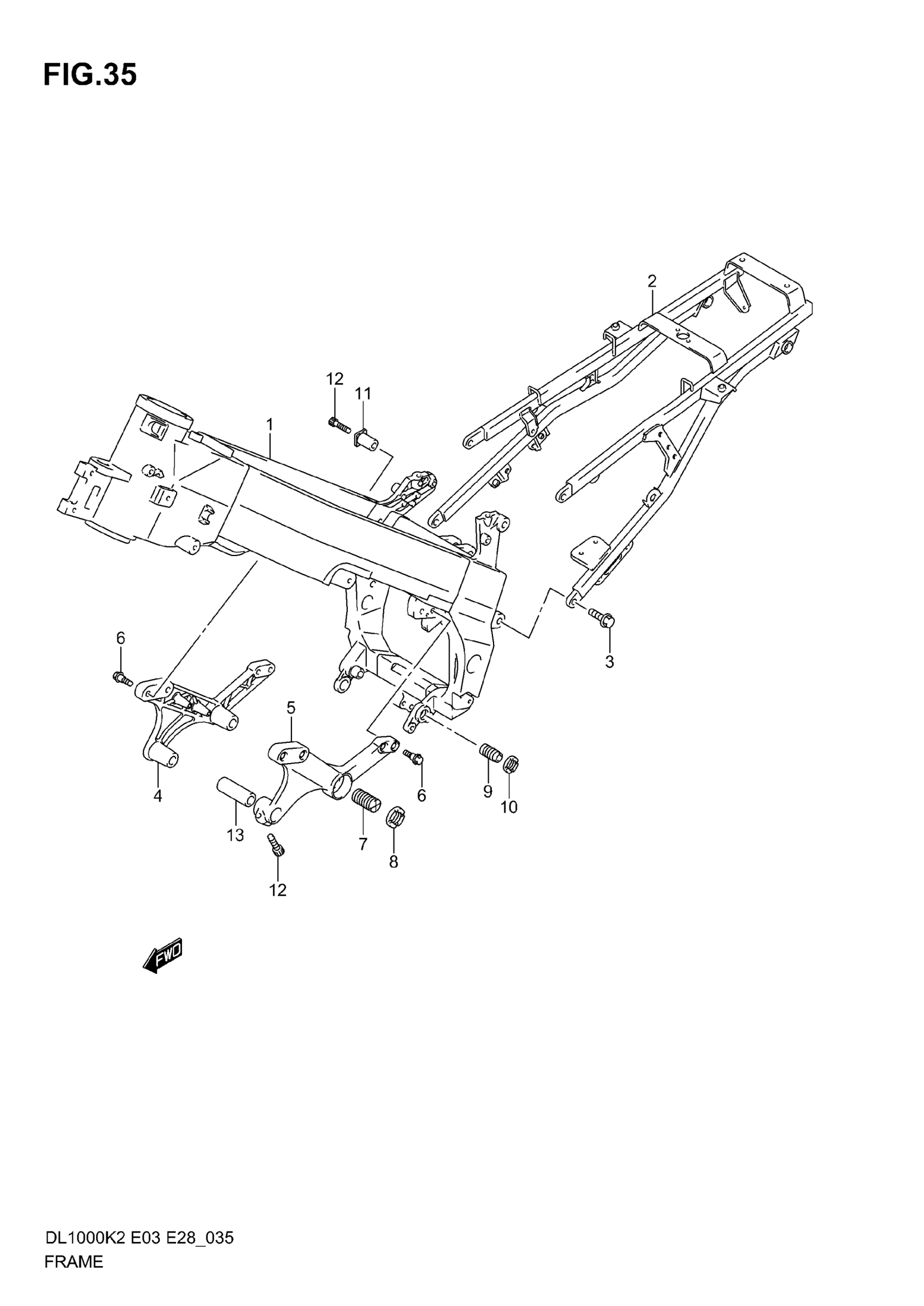

Suzuki DL1000 (2006) FRAME Diagram

#

Description
Price

1

FRAME (SILVER) | MODEL K2/K3/K4

41100-06G00-YD8

Unavailable

1

FRAME (BLACK) | MODEL K5/K6 This part replaces 41100-06G00-YAP.

41100-06G01-YAP

Unavailable

2

RAIL, SEAT

41200-06G00

Unavailable

3

BOLT | MODEL K2/K3/K4 This part replaces 01550-10303.

01550-1030A

$3.55

3

BOLT | MODEL K5/K6

09103-10379

$4.52

4

BRACKET, MOUNT RH (SILVER) | MODEL K2/K3 This part replaces 41911-06G00-YD8.

41911-06G01-YD8

Unavailable

4

BRACKET, MOUNT RH (SILVER) | MODEL K4

41911-06G01-YD8

Unavailable

4

BRACKET, MOUNT RH (BLACK) | MODEL K5/K6

41911-06G20-YAP

Unavailable

5

BRACKET, MOUNT LH (SILVER) | MODEL K2/K3 This part replaces 41912-06G00-YD8.

41912-06G01-YD8

Unavailable

5

BRACKET, MOUNT LH (SILVER) | MODEL K4

41912-06G01-YD8

Unavailable

5

BRACKET, MOUNT LH (BLACK) | MODEL K5/K6

41912-06G20-YAP

Unavailable

6

BOLT | MODEL K2/K3/K4

09106-08121

$3.16

6

BOLT | MODEL K5/K6

09106-08175

$4.10

7

BOLT, ADJUSTER CENTER | MODEL K2/K3

41921-19F11

$56.32

7

BOLT, CRANK CASE ADJUST CTR | MODEL K4/K5/K6

41923-16G00

$31.28

8

NUT,CRANK CASE ADJUST CTR This part replaces 41922-19F00.

41922-19F20

$18.90

9

BOLT, ADJUSTER LOWER | MODEL K2/K3

41921-33E11

$49.42

9

BOLT, CRANK CASE ADJUST LWR | MODEL K4/K5/K6 This part replaces 41921-16G00.

41921-16G01

$23.47

10

NUT, ADJUSTER LOWER

41922-33E00

$22.52

11

SPACER, ADJUSTER UPPER

41941-19F01

$40.33

12

BOLT, SPACER This part replaces 09106-08149.

09106-08170

$3.49

13

SPACER, HEAD FRONT LH

41198-02F00

Unavailable
