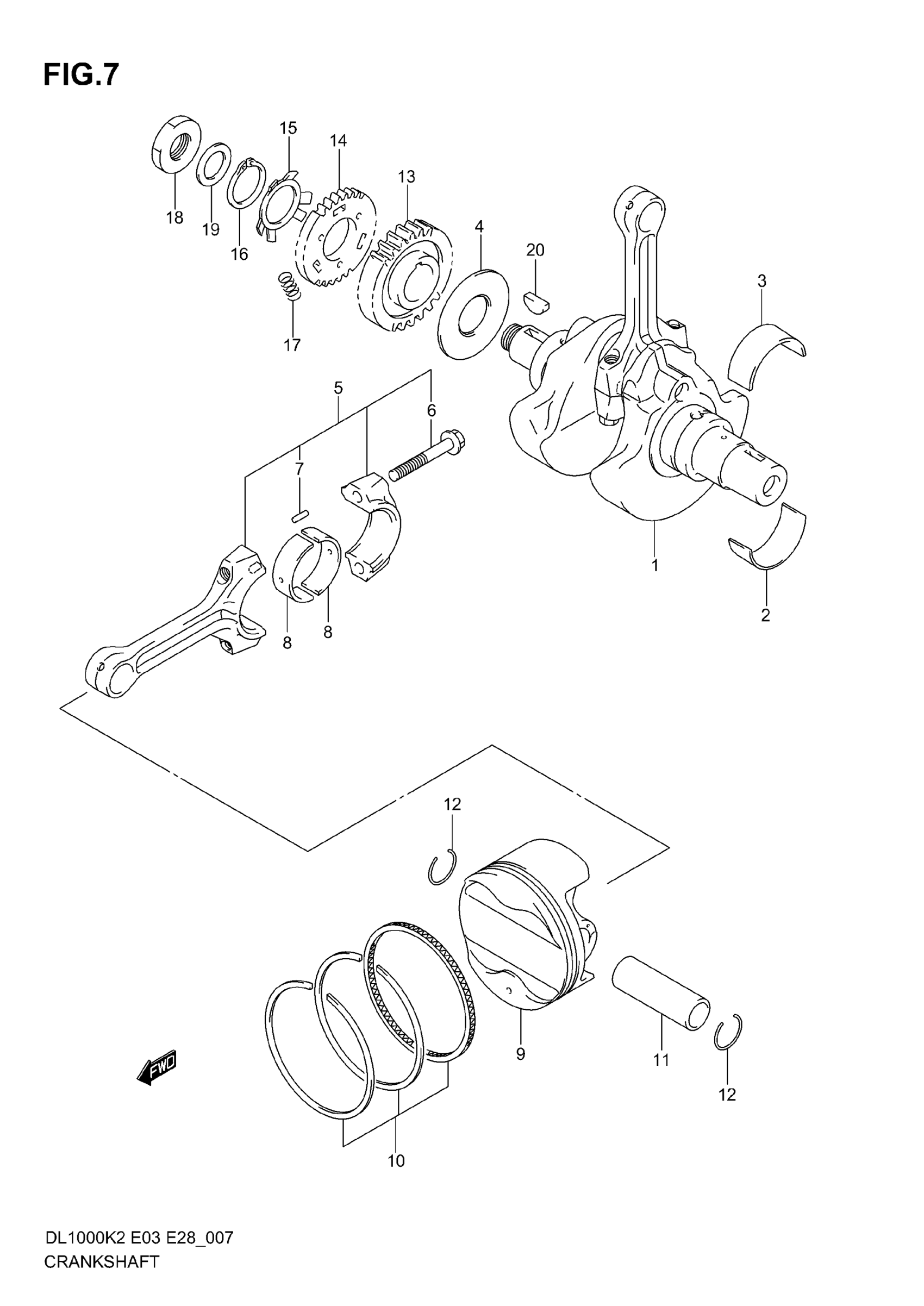

Suzuki DL1000 (2006) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT

12220-06G00

Unavailable

2

BEARING, LOWER (GREEN)

12229-16G00-0A0

$27.70

2

BEARING, LOWER (BLACK)

12229-16G00-0B0

$27.70

2

BEARING, LOWER (BROWN)

12229-16G00-0C0

$27.70

3

BEARING, UPPER (GREEN)

12229-16G00-0A0

$27.70

3

BEARING, UPPER (BLACK)

12229-16G00-0B0

$27.70

3

BEARING, UPPER (BROWN)

12229-16G00-0C0

$27.70

4

WASHER,CRANK THRUST

12652-38B00

Unavailable

5

CONNECTING ROD ASSY | Includes Item(s) 6 - 7

12160-06G00

Unavailable

6

BOLT

12163-06G00

$20.85

7

PIN

12165-27A50

$1.54

8

BEARING, CRANK PIN (GREEN) This part replaces 12164-02F11-0A0.

12164-02F12-0A0

Unavailable

8

BEARING, CRANK PIN (BLACK) This part replaces 12164-02F11-0B0.

12164-02F12-0B0

$21.84

8

BEARING, CRANK PIN (BROWN) This part replaces 12164-02F11-0C0.

12164-02F12-0C0

$25.68

8

BEARING, CRANK PIN (YELLOW) This part replaces 12164-02F11-0D0.

12164-02F12-0D0

$25.68

9

PISTON

12111-06G00-0F0

Unavailable

10

RING SET, PISTON

12140-02F42

$74.78

11

PIN, PISTON

12151-02F00

$29.82

12

CIRCLIP

09381-22002

$1.65

13

GEAR, PRIMARY DRIVE | MODEL K2

21111-02F20

Unavailable

13

GEAR, PRIMARY DRIVE | MODEL K3/K4/K5/K6

21111-02F11

Unavailable

14

GEAR, PRIMARY DRIVE SCISSORS

21112-02F00

Unavailable

15

WASHER

21114-02F00

$10.65

16

CIRCLIP This part replaces 08331-31406.

08331-31409

$3.58

17

SPRING

09440-07001

$2.38

18

NUT

09140-22012

$13.20

19

WASHER

09164-22007

$7.35

20

KEY

09420-06001

$9.27
