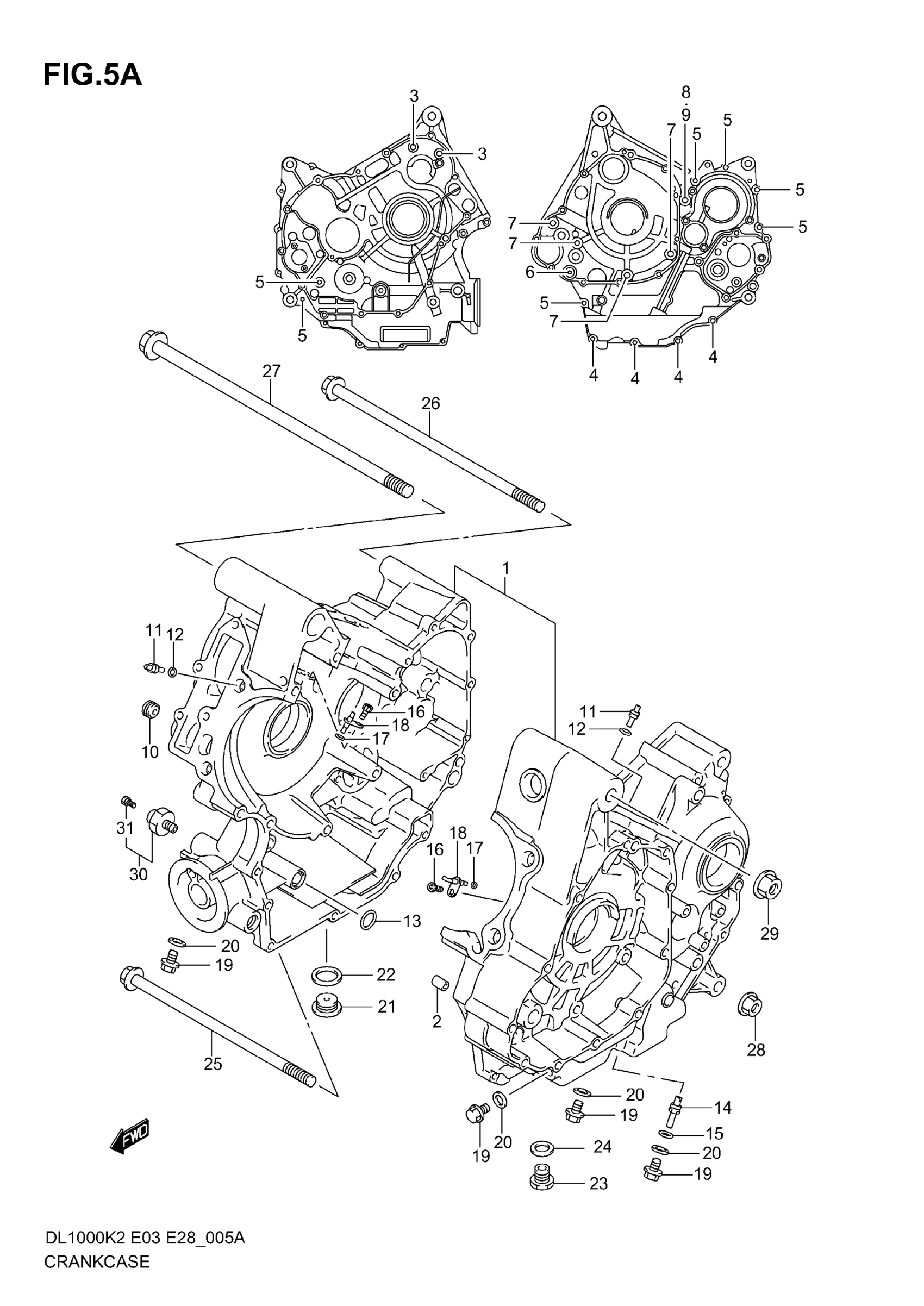

Suzuki DL1000 (2006) CRANKCASE (MODEL K6) Diagram

#

Description
Price

1

CRANKCASE SET | Includes Item(s) 2 - 13 This part replaces 11306-06820.

11306-06821

Unavailable

2

PIN

11319-33E00

Unavailable

3

BOLT (L:110)

09106-08142

Unavailable

4

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

$2.73

5

BOLT This part replaces 01547-06703.

01547-0670B

$3.29

6

BOLT, CRANKCASE (6X85) This part replaces 01547-06853.

01547-0685B

$4.00

7

BOLT This part replaces 07120-08903.

07120-0890B

Unavailable

8

BOLT (L:125)

09106-08136

Unavailable

9

WASHER This part replaces 08322-01083.

08322-0108A

$1.92

10

JET,OIL GALLERY (3.6)

11329-02F00

$6.70

11

JET, OIL GALLERY

09493-28010

$16.57

12

O RING (D:1.2,ID:4)

09280-04004

$1.91

13

O RING

09280-12009

$3.18

14

JET,T/M OIL GALLERY

09493-20014

$16.87

15

O RING

09280-04004

$1.91

16

BOLT

09106-06075

$2.48

17

O RING (D:1.2,ID:4)

09280-05007

$1.92

18

JET,PISTON COOLING

11390-06G10

Unavailable

19

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

$2.32

20

GASKET (8.2X14X1)

09168-08016

$1.65

21

PLUG

09248-16012

$4.64

22

GASKET

09168-16002

$1.91

23

PLUG, OIL DRAIN

09247-14036

$6.17

24

GASKET

09168-14002

$2.26

25

BOLT (L:225)

09103-10205

$19.52

26

BOLT (L:275)

09103-10347

$21.83

27

BOLT (L:330)

09103-12073

$33.72

28

NUT This part replaces 08319-31103.

08319-3110A

$2.73

29

NUT

09159-12054

$7.44

30

SWITCH ASSY,OIL PRESSURE | Includes Item(s) 31 This part replaces 37820-33D10.

37820-33D11

$25.13

31

BOLT

37822-33D00

$4.35
