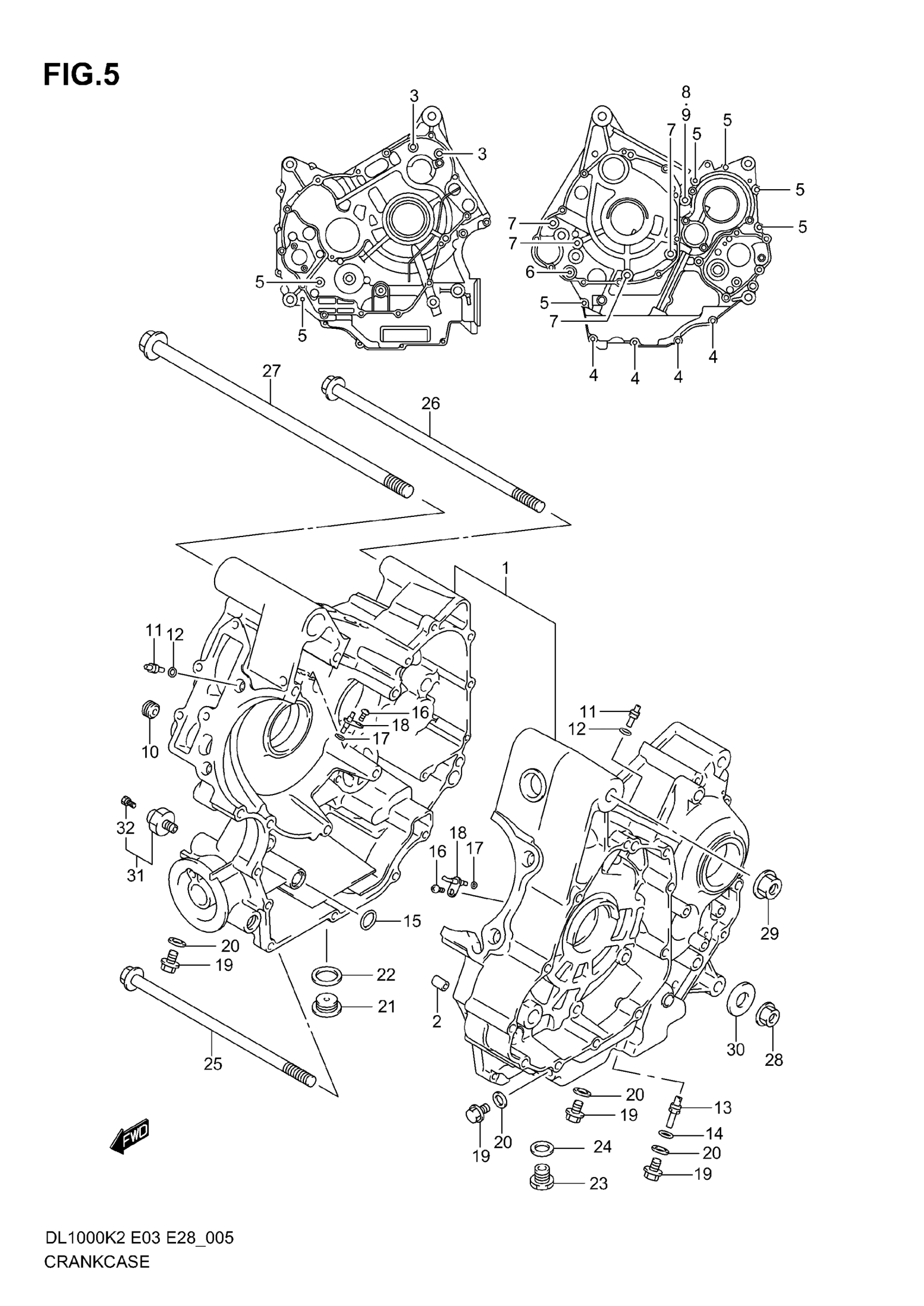

Suzuki DL1000 (2006) CRANKCASE (MODEL K2/K3/K4/K5) Diagram

CRANKCASE SET | MODEL K2

11302-06810

Unavailable

CRANKCASE SET | MODEL K3

11302-06812

Unavailable

CRANKCASE SET | MODEL K4/K5; Includes Item(s) 2 - 15

11302-06821

Unavailable

PIN

11319-33E00

Unavailable

BOLT (L:110)

09106-08142

Unavailable

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

$2.73

BOLT This part replaces 01547-06703.

01547-0670B

$3.29

BOLT, CRANKCASE (6X85) This part replaces 01547-06853.

01547-0685B

$4.00

BOLT This part replaces 07120-08903.

07120-0890B

Unavailable

BOLT (L:125)

09106-08136

Unavailable

WASHER This part replaces 08322-01083.

08322-0108A

$1.92

JET,OIL GALLERY (3.6)

11329-02F00

$6.70

JET,T/M OIL GALLERY

09493-20014

$16.87

O RING (D:1.2,ID:4)

09280-04004

$1.91

JET,T/M OIL GALLERY

09493-20014

$16.87

O RING

09280-04004

$1.91

O RING

09280-12009

$3.18

BOLT | MODEL K2/K3

09125-06086

$2.77

BOLT | MODEL K4/K5

09106-06075

$2.48

O RING (D:1.2,ID:4)

09280-04004

$1.91

JET, PISTON COOLING

11390-06G00

Unavailable

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

$2.32

GASKET | MODEL K2/K3

09168-08015

$2.79

GASKET (8.2X14X1) | MODEL K4/K5

09168-08016

$1.65

PLUG

09248-16012

$4.64

GASKET

09168-16002

$1.91

PLUG, OIL DRAIN

09247-14036

$6.17

GASKET

09168-14002

$2.26

BOLT (L:225)

09103-10205

$19.52

BOLT (L:260) | MODEL K2/K3

09103-10226

$16.75

BOLT (L:275) | MODEL K4/K5

09103-10347

$21.83

BOLT (L:320) | MODEL K2/K3

09103-12069

Unavailable

BOLT (L:330) | MODEL K4/K5

09103-12073

$33.72

NUT, REAR SWGARM BRACKET | MODEL K2/K3 This part replaces 09159-10058.

09159-10115

$3.55

NUT | MODEL K4/K5 This part replaces 08319-31103.

08319-3110A

$2.73

NUT

09159-12054

$7.44

WASHER | MODEL K2/K3

09160-10039

$2.26

SWITCH ASSY,OIL PRESSURE | Includes Item(s) 32 This part replaces 37820-33D10.

37820-33D11

$25.13

BOLT

37822-33D00

$4.35
