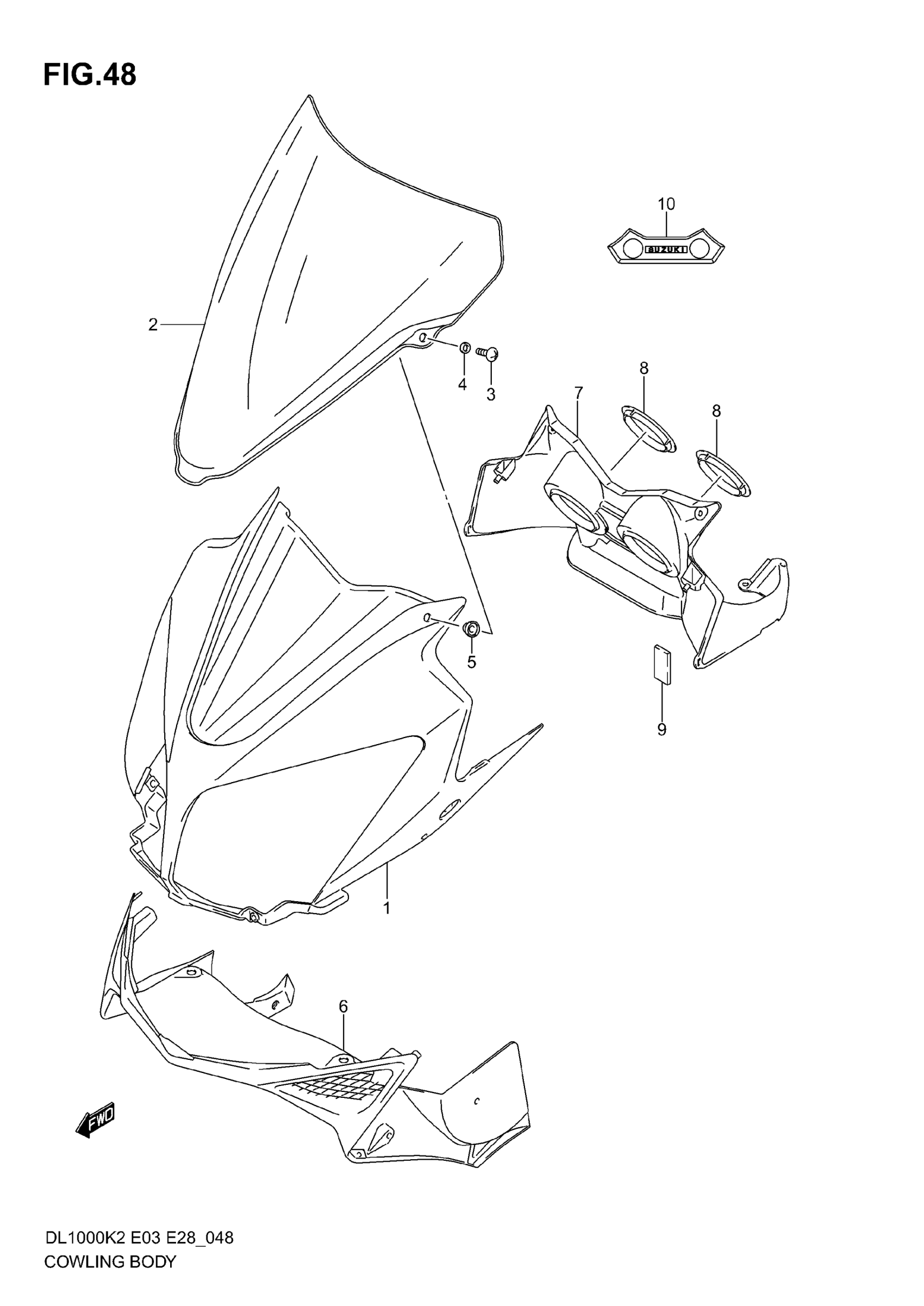

Suzuki DL1000 (2006) COWLING BODY (MODEL K2/K3) Diagram

#

Description
Price

1

BODY, COWLING (BLACK) | FOR Y7H,YBA

94410-06G00-33J

Unavailable

1

BODY, COWLING (BLACK) | FOR YU8,YU9,YD8

94410-06G00-Y7L

Unavailable

2

WINDSCREEN This part replaces 94610-06G00.

94610-06G01

$690.33

3

SCREW

09139-05075

$2.58

4

WASHER, FRONT This part replaces 08322-01053.

08322-0105A

$1.84

5

NUT

94619-36A00

$7.85

6

COVER, COWL INNER (BLACK)

94461-06G00-YZ5

Unavailable

7

PANEL COMP,METE | MODEL K2 This part replaces 94630-06G00-HW5.

94630-06G00-BGS

$173.43

7

PANEL COMP,METE | MODEL K3; Includes Item(s) 8 - 9 This part replaces 94630-06G00-LP7.

94630-06G00-BGS

$173.43

8

RING, METER PANEL (SILVER) | MODEL K2

94632-06G00-YAG

Unavailable

8

RING, METER PANEL (GRAY) | MODEL K3

94632-06G00-YCG

Unavailable

9

PROTECTOR

44885-38A00

$4.58

10

NO DESCRIPTION AVAILABLE | MODEL K2 This part replaces 68281-06G00.

68281-06G00-YAG

Unavailable

10

EMBLEM (GRAY) | MODEL K3

68281-06G00-YCG

Unavailable
