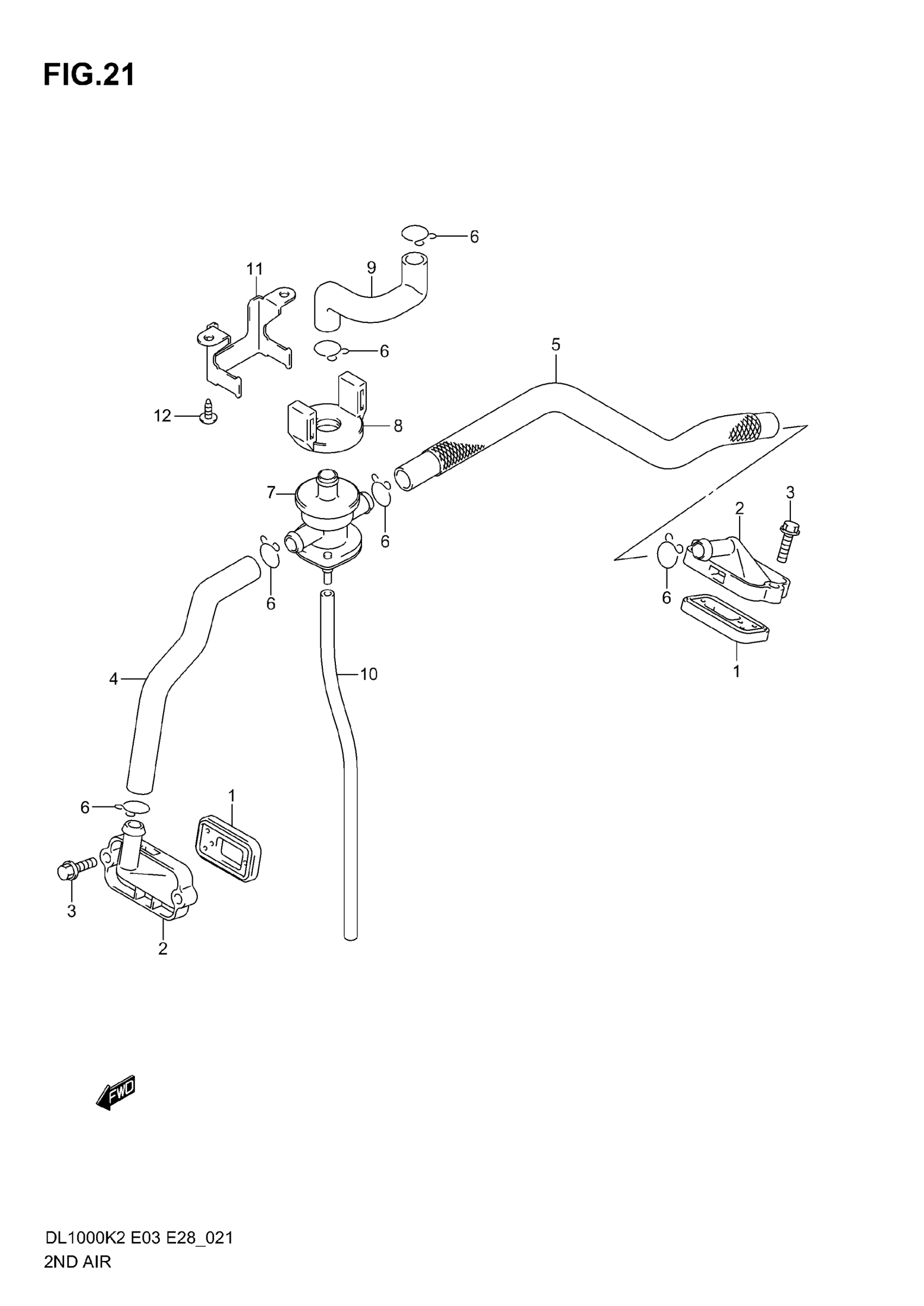

Suzuki DL1000 (2006) 2ND AIR Diagram

#

Description
Price

1

.VALVE ASSY,2ND AIR REED

18450-06G00

$36.82

2

COVER,2ND AIR | MODEL K2 This part replaces 18531-06G00.

18531-06G01

$13.41

2

COVER,2ND AIR | MODEL K3/K4/K5/K6

18531-06G01

$13.41

3

BOLT

09103-06201

$2.64

4

HOSE, 2ND AIR VALVE FRONT

18461-06G00

Unavailable

5

HOSE, 2ND AIR VALVE REAR

18471-06G00

Unavailable

6

CLIP

09401-15101

$2.26

7

VALVE ASSY, AIR CUT

18510-35F00

Unavailable

8

CUSHION, 2ND AIR CLEANER

18517-06G10

Unavailable

9

HOSE, 2ND AIR CLEANER

18711-06G10

$13.10

10

HOSE, 2ND AIR VALVE VACUUM

13697-02A00

Unavailable

11

BRACKET, 2ND AIR VALVE

18610-06G00

$9.90

12

SCREW

03542-06123

Unavailable
