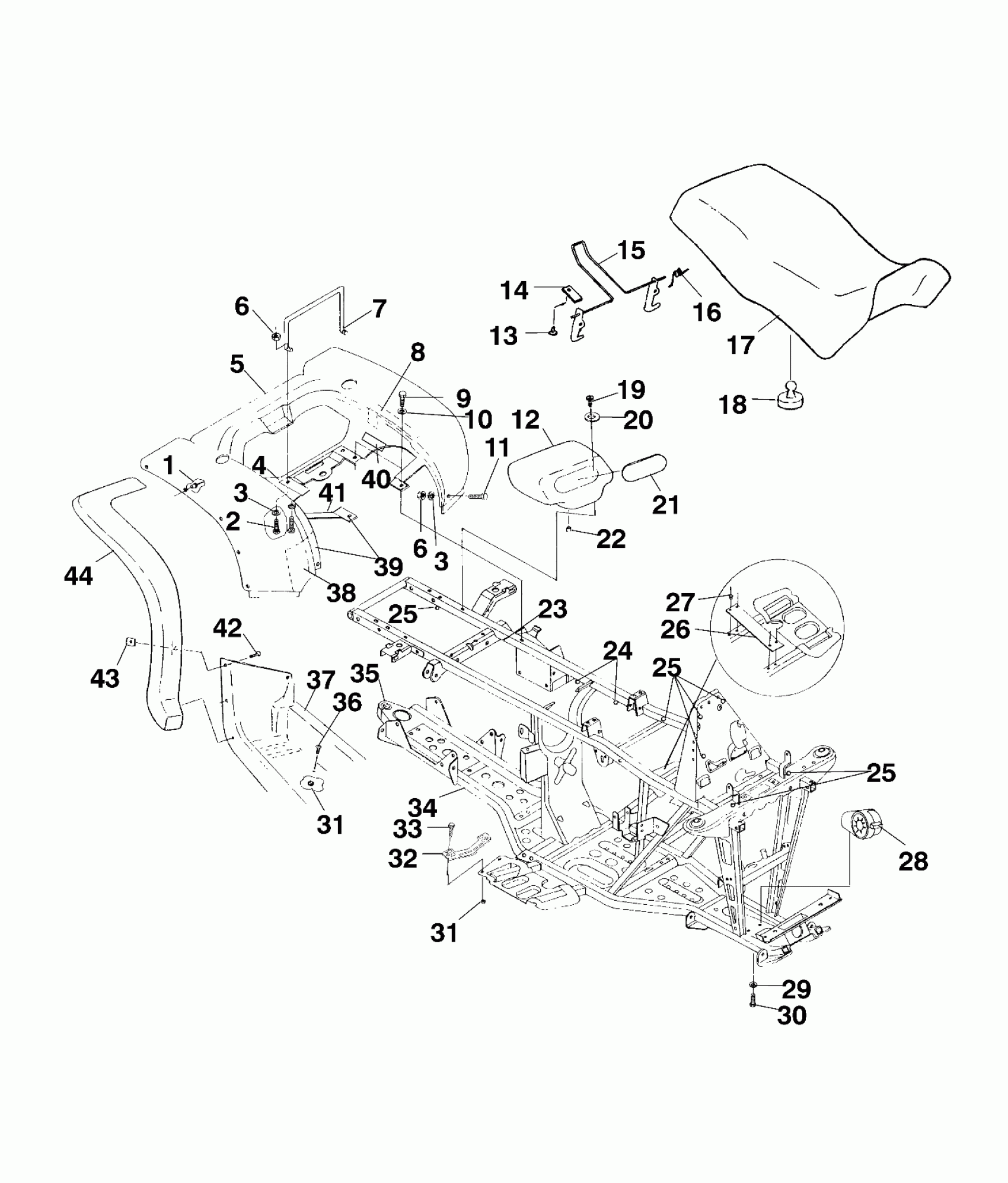

Polaris DIESEL - A99CH45CA REAR CAB and SEAT - A99CH45IA (4949154915A005) Diagram

#

Description
Price

1

RIVET(50)

7661645

Unavailable

2

SCREW(10)

7511930

$2.38

3

WASHER(10)

7555792

$4.76

3

WASHER(10)

7555792

$4.76

4

FOIL,REAR CAB,REAR

5811107

Unavailable

5

CAB,REAR,GEN IV,BASIC,BON.BLUE

5432988-157

Unavailable

6

NUT(10)

7541925

$0.79

6

NUT(10)

7541925

$0.79

7

RETAINER,SEAT LATCH

5224592

Unavailable

8

FOIL,TAPE,3 X 12

5811308

$12.94

9

SCREW(10)

7512242

$2.38

10

WASHER, FLAT(10)

7555859

$1.19

11

SCREW(10) Substituted by 7511989

7512085

Unavailable

12

BOX,TOOL

5432875

Unavailable

13

BLIND RIVET(50)

7621403

$1.19

14

BRACKET,LEVER RETAINER

5211033

$34.99

15

LATCH,SEAT

1040387

$48.56

16

SPRING, LATCH

7041370

$9.52

17

COVER,SEAT,BLK.

2681747-070

$149.75

17

SEAT,BLK

2682441-070

$445.22

17

FOIL,SEATBASE,LG.

5811104

Unavailable

17

FOIL,SEATBASE,SM.

5811105

$9.84

18

Bumper, Rubber

5410414

$3.17

19

BOLT(10)

7512130

$3.97

20

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.76

21

COVER, TOOLBOX

5431787

Unavailable

22

CAP,DRAIN

5410896

$5.65

23

FITTING,VENT,1/8"

7052192

Unavailable

24

CLIP-ROUTING

7670109

$2.38

25

CLIP,ROSEBUD

4020149

$6.35

25

CLIP,ROSEBUD

4020149

$6.35

25

CLIP,ROSEBUD

4020149

$6.35

26

GUARD,CLUTCH,BLK

5242953-067

Unavailable

27

RIVET,INTERLOCK,B(50)

7661638

$1.19

28

Asm., Front Housing (See Footnote) (See Front Housing Pg. D4 for Details)

----

Unavailable

29

WASHER(10)

7552603

$0.79

30

SCREW(10)

7512492

$1.19

31

NUT-LOCK(10)

7542122

$1.19

31

NUT-LOCK(10)

7542122

$1.19

32

SPACER,FOOTWELL

5432280

$8.73

33

SCREW

7517377

$4.76

34

FRAME,MAIN,DIESEL,BLK

1040666-067

Unavailable

35

DECAL-HITCH (1225)

7078261

Unavailable

36

SCREW Substituted by 7512279

7517376

$0.79

37

FOOTWELL,LH,BLK,NYLON

5432221-070

$230.70

37

FOOTWELL-NYLON,RH,BLK

5433219-070

$230.70

38

FOIL FOAM

5811111

Unavailable

39

FOIL,FR,REAR CAB

5811106

Unavailable

40

DECAL,FILT.ELEMENT,4-S

7077446

Unavailable

41

FOIL-FOAM,(6X1)

5811087

Unavailable

42

BOLT(10)

7512232

$1.19

43

NUT, SPEED(10)

7670057

$1.19

44

MUDGUARD,LH,R.BLK. Substituted by 5431796-070

5431796

Unavailable

44

MUDGUARD,RH,R.BLK. Substituted by 5431797-070

5431797

Unavailable
