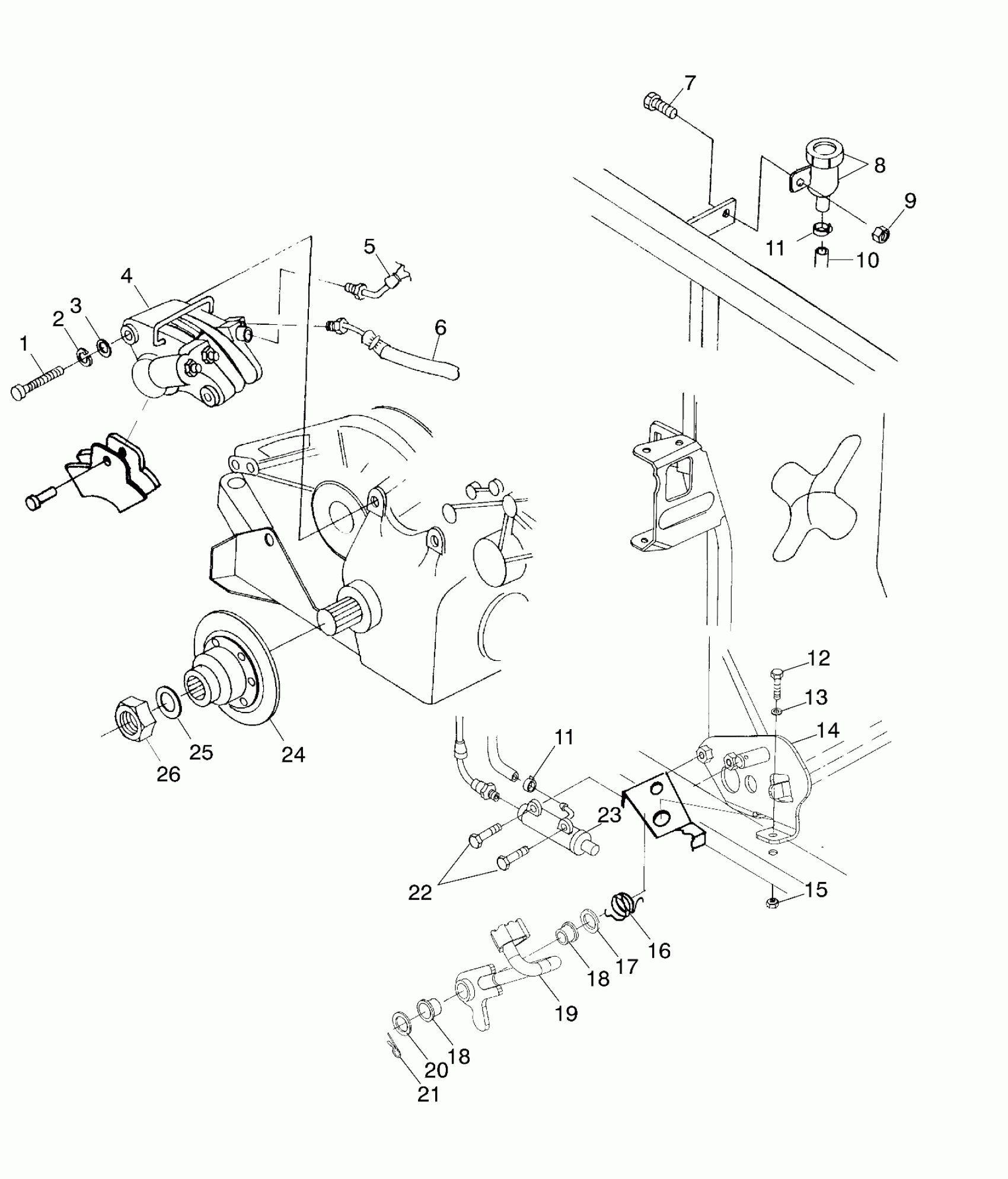

Polaris DIESEL - A99CH45CA REAR BRAKE/FOOT PEDAL - A99CH45IA (4949154915C009) Diagram

#

Description
Price

1

BOLT(10)

7515497

$3.97

2

WASHER(10)

7552603

$0.79

3

WASHER(10)

7555806

$0.79

4

KIT,SEAL,CALIPER,WW

2201180

$64.75

4

BLEEDER REPLACEMENT,KIT

2201428

$27.78

4

KIT,BRAKEPAD,R.AXLE,WW (Incl. Spacer, Pin)

2201189

$38.08

4

ASM., CALIPER, BRAKE

1910366

$288.87

4

Piston, STEPPED BORE

2201181

$83.33

5

LINE,R.BRAKE,WWOOD

1930853

Unavailable

6

LINE,BRAKE CALIPER,W/FTNGS.

1910305

Unavailable

7

BOLT(10) Substituted by 7512240

7512111

$3.97

8

RESERVOIR ASM,R.BRAKE

1930854

Unavailable

9

NUT(10)

7542153

$1.59

10

HOSE-RESERVOIR,1/4 ID,17IN.

1910326

$4.03

11

HOSE CLAMP, RED

7080003

$1.19

11

HOSE CLAMP, RED

7080003

$1.19

12

BOLT(10)

7512240

$3.97

13

WASHER(10)

7558301

$1.19

14

BRAKE MOUNT,DIESEL,BLK.

1012840-067

$21.43

15

NUT, LOCK(10)

7542103

$5.56

16

SPRING-TORSION,BRAKE

7041750

$8.89

17

WASHER(10)

7555919

$4.99

18

BUSHING-PEDAL PIVOT

5433189

$3.97

18

BUSHING-PEDAL PIVOT

5433189

$3.97

19

BRAKE ROD,DIESEL,BLK

1012842-067

Unavailable

20

WASHER,SPRING

7556090

$2.62

21

PIN COTTER(10)

7661203

$1.19

22

SCREW(10)

7515158

$4.76

23

CYLINDER,MASTER,BRAKE,REAR

1910301

$174.03

24

DISC ASM,BRAKE (A99CH45CA)

1910188

Unavailable

24

DISC ASM,BRAKE (A99CH45IA)

1910279

Unavailable

25

WASHER, SLOTTED(10)

7571620

$7.14

26

NUT,NYLOC

7547046

$5.56
