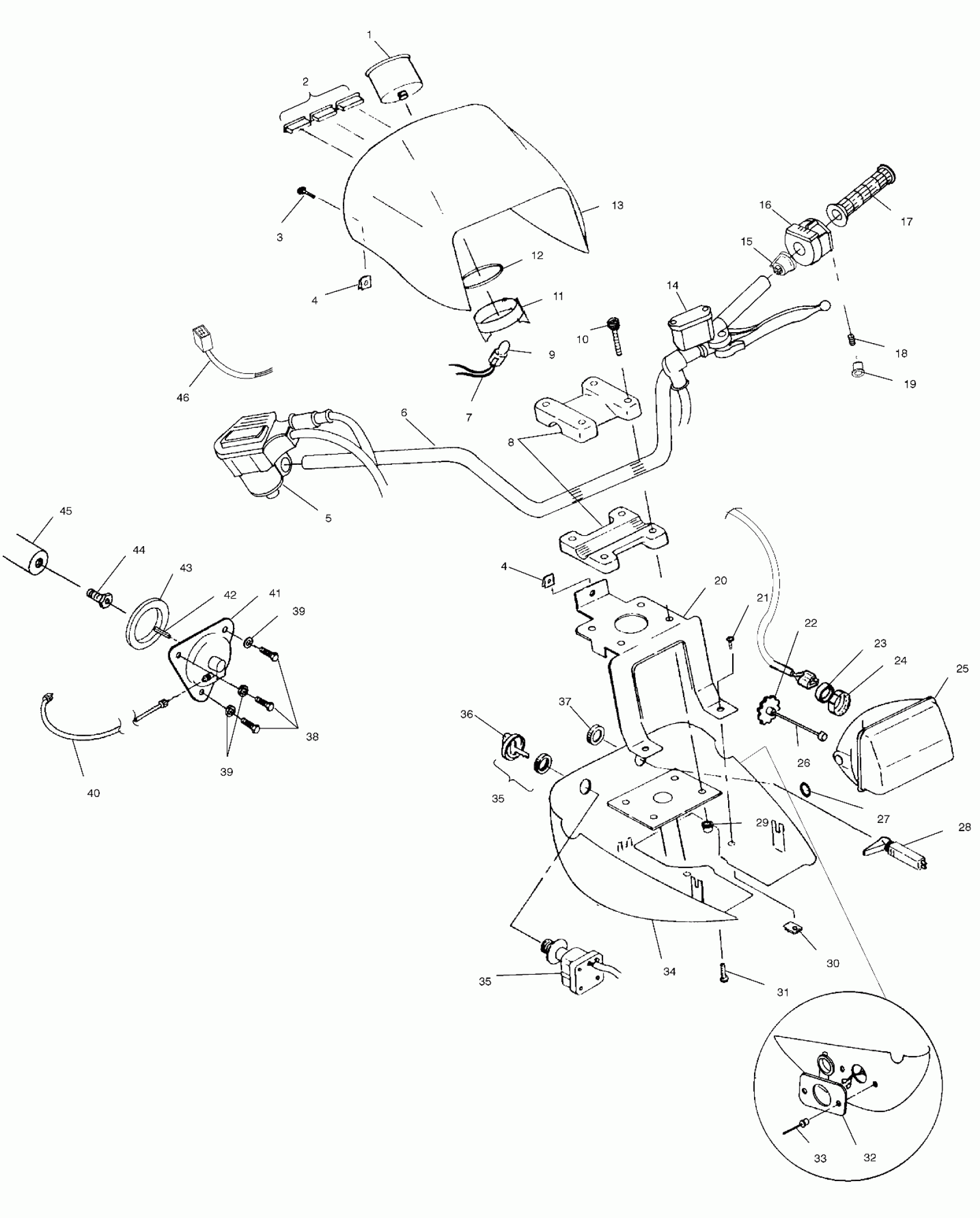

Polaris DIESEL - A99CH45CA HANDLEBAR and HEADLIGHT POD - A99CH45IA (4949154915B011) Diagram

#

Description
Price

1

SPEEDO,KILOMETER,3",ATV (A99CH45IA)

3280258

Unavailable

1

SPEEDOMETER,3",ATV ASM. (Incl. 11,12)(A99CH45CA)

3280326

$239.19

2

PLUG,INDIC.HOLE

5430967

$5.65

2

INDIC"HOT TEMPERATURE"

4040053

$31.99

2

INDIC"NEUT./REV."

4040054

$31.99

3

SCR-#8X.625,SELF TAP-PH/PN-ZTB

7511881

$1.49

4

NUT

7670086

$3.99

4

NUT

7670086

$3.99

5

Asm., Throttle Control (See Footnote) (See Controls, Throttle Asm./Cable Pg. B8 Ref. 5)

-------

Unavailable

6

TUBE-HANDLEBAR,GEN 4,POD,BLK

5242987-067

$114.99

7

HARNESS, SPEEDO

2460387

Unavailable

8

KIT,H'BAR BLOCK (Incl. 8,10,29 & Blocks)

2200774

Unavailable

8

BLOCK,H'BAR RETAINER,BLK

5630616-067

Unavailable

9

BULB TAILLIGHT(10)

4030015

$4.03

10

SCREW(10)

7515189

Unavailable

11

CLAMP,BACK,SPEEDO.

3280175

Unavailable

12

GASKET,SHOCK MT.

3280174

$9.11

13

POD,H/L,UP.,BON.BLUE

5431812-157

Unavailable

14

Asm., Master Cylinder (See Footnote) (See Controls, Master Cylinder/Brake Line Pg. B9)

-------

Unavailable

15

SPACER,SWITCH,LH

5432926

$2.63

16

SWITCH-HANDLEBAR,H/L/O,REV/OR

4010262

$203.99

17

GRIP, HANDLEBAR

5431030

$24.27

18

SCREW,SET

7517625

$4.79

19

PLUG,HOLE(10)

5432952

$5.59

20

BRKT,POD MTG,BLK.

5240586-067

Unavailable

21

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.19

22

KNOB,ADJUSTING

4032079

$23.99

23

BOOT, HEADLIGHT

5411120

$27.99

24

COLLAR,LOCK

4032077

$27.99

25

BULB,QUARTZ.H/L,INDY

2870448

$24.99

25

LENS&REFLECTOR ASM.

4032075

Unavailable

26

ROD,ADJUSTING

4032078

Unavailable

27

O RING

5410163

$1.60

28

CABLE-FUEL SHUT OFF

7080757

Unavailable

29

NUT-LOCK(10)

7542122

$1.49

30

NUT,U-TYPE(10)

7670089

$5.59

31

SCREW(10)

7522021

$3.99

32

POWERPLUG ASM,12V

2410025

Unavailable

33

RIVET(50)

7621334

$1.49

34

POD,H/L.LOW.BLK Substituted by 5433366-070

5432314-070

$93.08

35

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

35

SWITCH,IGN.W/ CON (Incl. Key) (See Footnote) NOTE: Ignition key may be ordered by using the four digit number on the key.

4110209

Unavailable

35

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

35

SWITCH,IGN.W/ CON (Incl. Key) (See Footnote) NOTE: Ignition key may be ordered by using the four digit number on the key.

4110209

Unavailable

36

COVER, KEY Substituted by 5433534

5431964

Unavailable

37

Nut

7080229

$19.99

38

BOLT(10)

7515378

$1.98

39

WASHER(10)

7555725

Unavailable

39

WASHER(10)

7555725

Unavailable

40

CABLE,SPEEDO,(ATV)

3280236

Unavailable

41

Adaptor, Drive (See Gearcase Pg. C14, Ref. 5)

-------

Unavailable

42

Key, Speedometer (See Gearcase Pg. C14, Ref. 6)

-------

Unavailable

43

Seal (See Gearcase Pg. C14, Ref. 7)

-------

Unavailable

44

Bushing, Speedometer Drive (See Footnote) (See Gearcase, Internal Components Pg. D2, Ref. 34)

-------

Unavailable

45

Shaft, Output, Front Housing (See Footnote) (See Front Housing Pg. D3, Ref. 24)

-------

Unavailable

46

HARNESS,CTR.PNL.

2460668

$11.51
