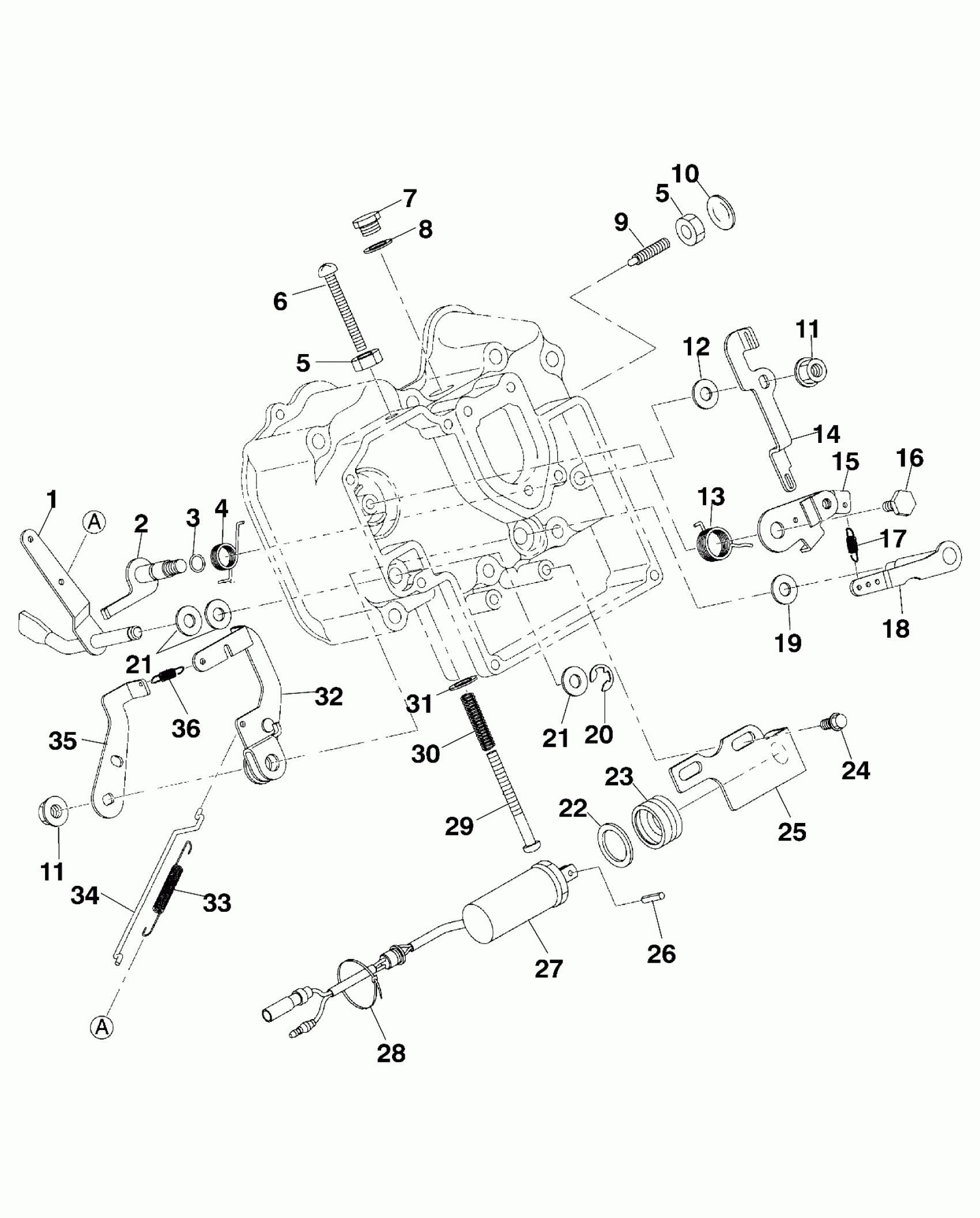

Polaris DIESEL - A99CH45CA GOVERNOR - A99CH45CA (4949154915D013) Diagram

#

Description
Price

1

LEVER 4,GOVERNOR

3086032

$22.23

2

STOPPER

3086166

$41.27

3

O-RING

3086054

$2.47

4

SPRING,RETURN,STOP

3086046

$4.95

5

NUT(10)

3084375

$2.99

5

NUT(10)

3084375

$2.99

6

SCREW

3086056

$1.49

7

PLUG

3084860

$7.19

8

GASKET

3084861

$4.79

9

SCREW-ADJUSTING

3086164

$6.23

10

PLUG,BLIND

3086038

$2.14

11

NUT-FLANGE(10)

3082910

$2.39

11

NUT-FLANGE(10)

3082910

$2.39

12

WASHER(10)

3080356

$2.99

13

SPRING-RETURN

3086189

Unavailable

14

LEVER,STOPPER

3086045

$13.89

15

CONTROL,SPEED

3086042

$19.83

16

PIVOT,LINK

3086052

$3.83

17

SPRING-GOVENOR

3087095

$4.95

18

LEVER 3-GOVERNOR

3086165

$49.59

19

SPACER

3086168

$3.35

20

CLIP(10)

3086053

$3.99

21

WASHER(10)

3080142

$3.99

21

WASHER(10)

3080142

$3.99

22

SPACER

3086050

$2.14

23

BOOT,PLANGER

3086051

$15.03

24

BOLT, FLANGE(10) Substituted by 3087035

3083568

$3.85

25

BRACKET,SOLENOID

3086047

$9.11

26

SPRING,PIN

3086049

$1.83

27

SOLENOID ASM.

3086167

Unavailable

28

Band, Wire

3084823

$12.79

29

SCREW

3086055

Unavailable

30

SPRING,CONTROL

3086057

$2.63

31

WASHER(10)

3080078

Unavailable

32

LEVER 1-GOVERNOR

3086163

$41.59

33

SPRING,ROD

3086041

Unavailable

34

ROD-GOVENOR Substituted by 3087096

3087098

Unavailable

35

LEVER 2,GOVERNOR

3086033

$5.75

36

SPRING,START

3086036

$1.99
