GEAR SELECTOR - A99CH45CA (4949154915D005)

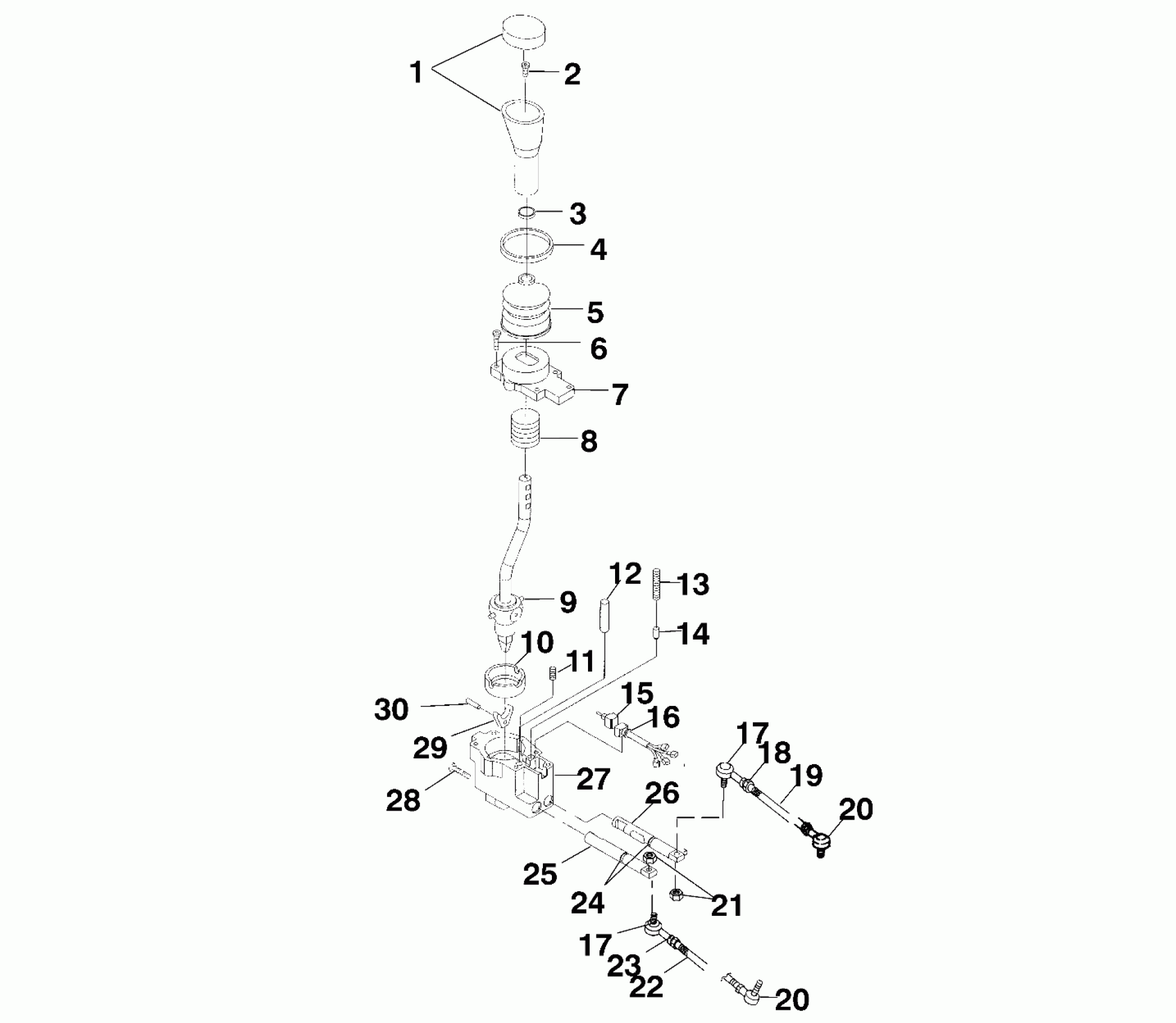

Polaris DIESEL - A99CH45CA GEAR SELECTOR - A99CH45CA (4949154915D005) Diagram
#
Description
Price
-
SELECTOR ASM,GEAR (Incl. 1-16,24-27,29,30)
1341262
Unavailable
1
KNOB ASM,HI/LO/REV. Substituted by 3233195-070
3233195
$49.99
2
SCREW,(10)
7512024
$4.79
3
Strap, Wire
3233131
$9.70
4
CLAMP
3233132
Unavailable
5
BOOT,GEAR SELECTOR
3233368
$74.79
6
SCREW,MAGNIGARD COATED
3233498
Unavailable
7
COVER,GEAR SELECTOR
3233213
Unavailable
8
SPRING,HOLDING
3233158
Unavailable
9
HANDLE SUBASM,(GS MAGNUM)
3233227
Unavailable
10
CUP,BEARING
3233063
$15.99
11
SPRING,CENTERING
3233083
Unavailable
12
PIN, STOP
3233062
Unavailable
13
SPRING,DETENT
3233069
Unavailable
14
BULLET,DETENT
3233060
$64.99
15
SWITCH ASM.
3233490
Unavailable
16
STRAP, WIRE
3233090
$2.86
17
ROD END,RH,6MM.
7061014
$65.99
17
ROD END,RH,6MM.
7061014
$65.99
18
NUT(10)
7546702
$1.49
19
ROD,SHIFT LINKAGE
5020743
Unavailable
20
ROD END,LH,6MM.
7061013
$65.99
20
ROD END,LH,6MM.
7061013
$65.99
21
NUT(10) Substituted by 7546703
7546707
Unavailable
22
ROD,SHIFT LINKAGE,LOW RANGE
5020824
$63.99
23
NUT(10)
7546701
$3.99
24
O-RING
3233076
$6.39
25
SLIDE,LOW
3233500
Unavailable
26
SLIDE,HIGH/REV
3233499
Unavailable
27
BODY,GEAR SELECTOR
3233343
Unavailable
28
SCREW(10)
7515181
$2.39
29
INTERLOCK,BUTTERFLY
3233084
Unavailable
30
PIN,INTERLOCK
3233070
Unavailable
